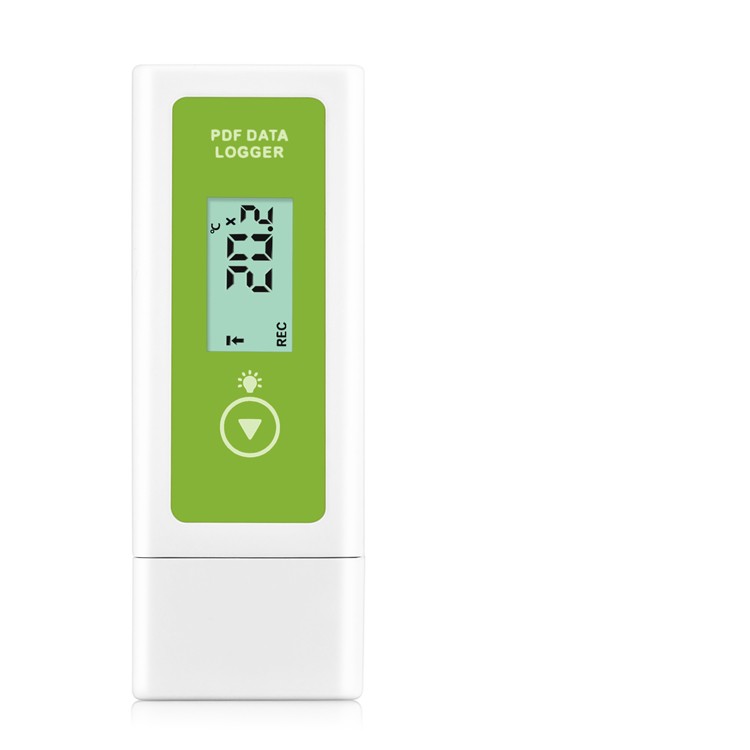

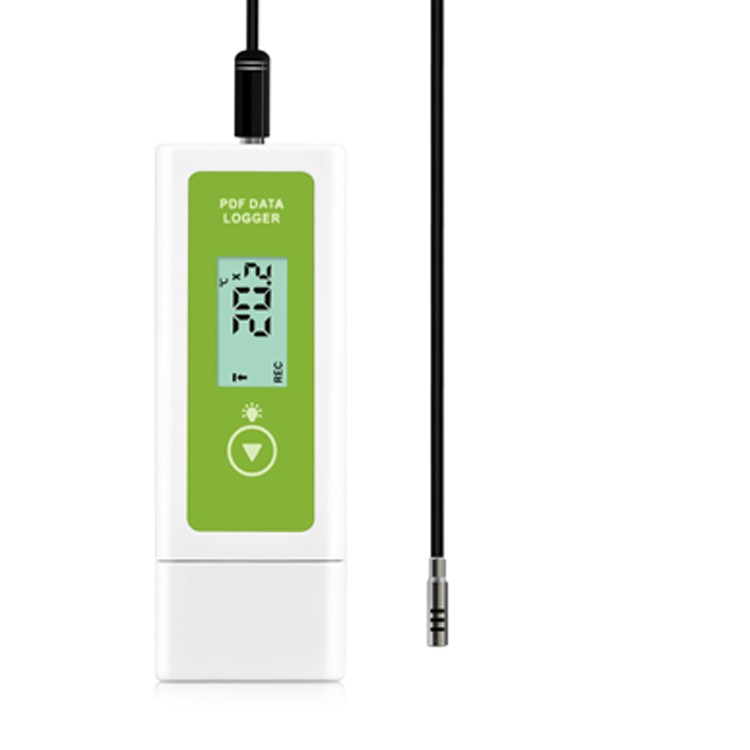

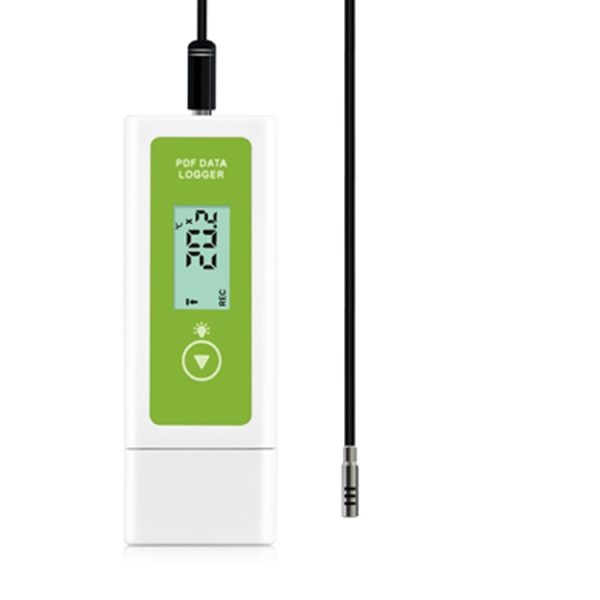

YOWEXA YMP-20ED Multi use pdf temperature and humidity data logger with external probe
$45.00
Features
· Generate PDF report without any software and driver
· Built-in USB interface
· LCD shows recording status, readings, limit and alarm indication
· 3 mark points supported
· User configurable
· LED status and alarm indication
· Low battery warnings
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
【Descriptions】
These data loggers are ideal to monitor the temperature and humdity in transportation, storage and testing process. Recording can be started and stopped by pressing the button. User can get PDF reports by connecting the device into PC without any software or driver.
【Features and Functions】
· Generate PDF report without any software and driver
· Built-in USB interface
· LCD shows recording status, readings, limit and alarm indication
· 3 mark points supported
· User configurable
· LED status and alarm indication
· Low battery warnings
· External probe
· To save as txt / csv / xls / dlg file via PC software
· Password control
· Re-calibrate supported
【Applications】
This recorder is mainly used in cold chain transportation, refrigeration, warehouse, HVAC, food & pharmaceutical of medicines, food, goods, equipments and environments that are sensitive to temperature and humidity.
Additional information
| Brand | YOWEXA |
|---|---|
| Model | YMP-20ED |
| Use type | Multi-use |
| Measuring range | -40~125℃, 0~100%RH (External probe：-10~65°C，10~90%RH) |
| Accuracy | ±0.3°C ±3%RH |
| Resolution | 0.1℃, 0.1%RH |
| Data storage capacity | 17280 (for each channel) |
| Sample interval | 10sec. to 18hours |
| Typ. battery life | 2.5 years(25℃, 15min. interval) |
| High and low alarm | User configurable |
| Alarm delay | 0~960min. |
| Alarm type | Single type; Accumulation type |
| Start delay | 0~254min. |
| Start mode | By button |
| Stop mode | By button ;Memory full; When into USB |
| Operation environment | -30~70℃ |
| Storage environment | -30~70℃ |
| Size/Weight/Case material | 75mmX28mmX10mm/20g/ABS |
| Protection class | IP40 |
| Standards/Certificates | CE, ROHS,EN12830 |
| Communication interface | Build-in USB 2.0 |
| Power supply | CR2032 3.0v lithium battery(factory replaceable) |
| Configuration software | PidifiX(windows 7&8&vista&10 32&64bits) |
| Warranty | 12months |
