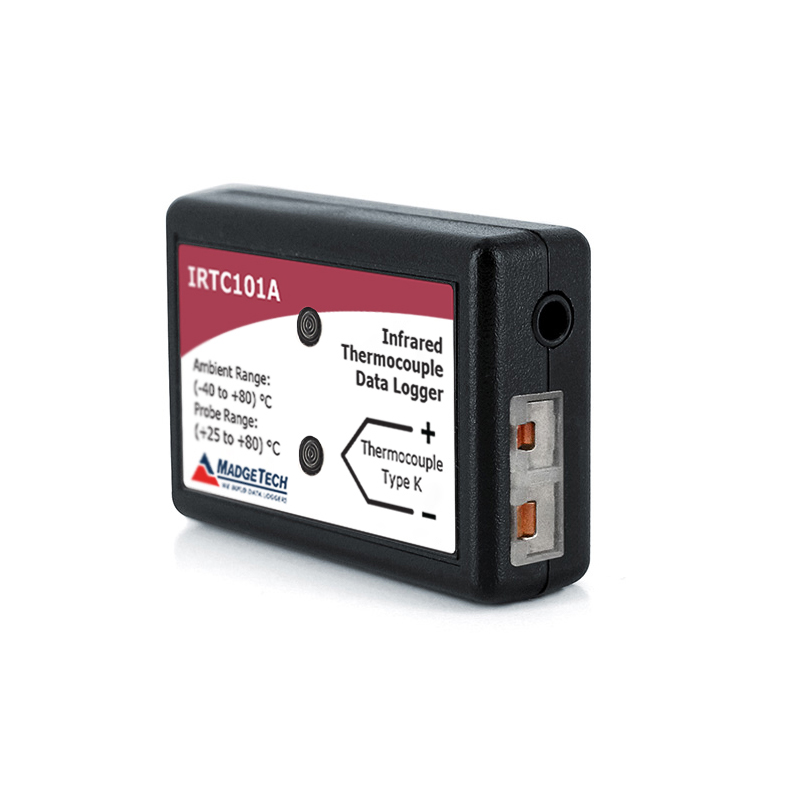

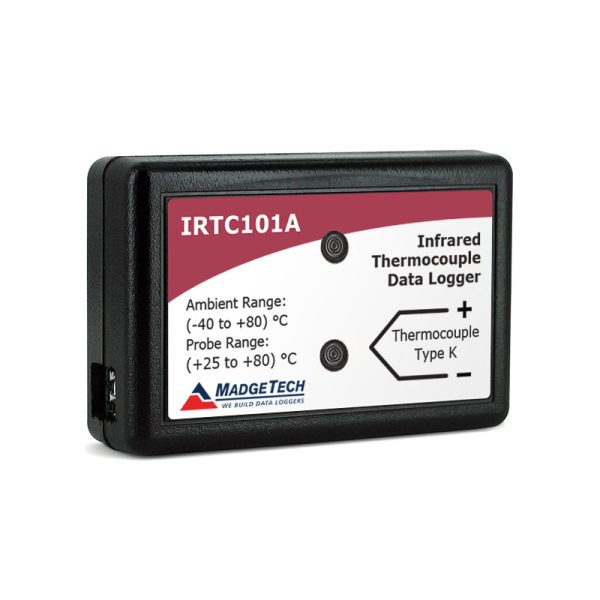

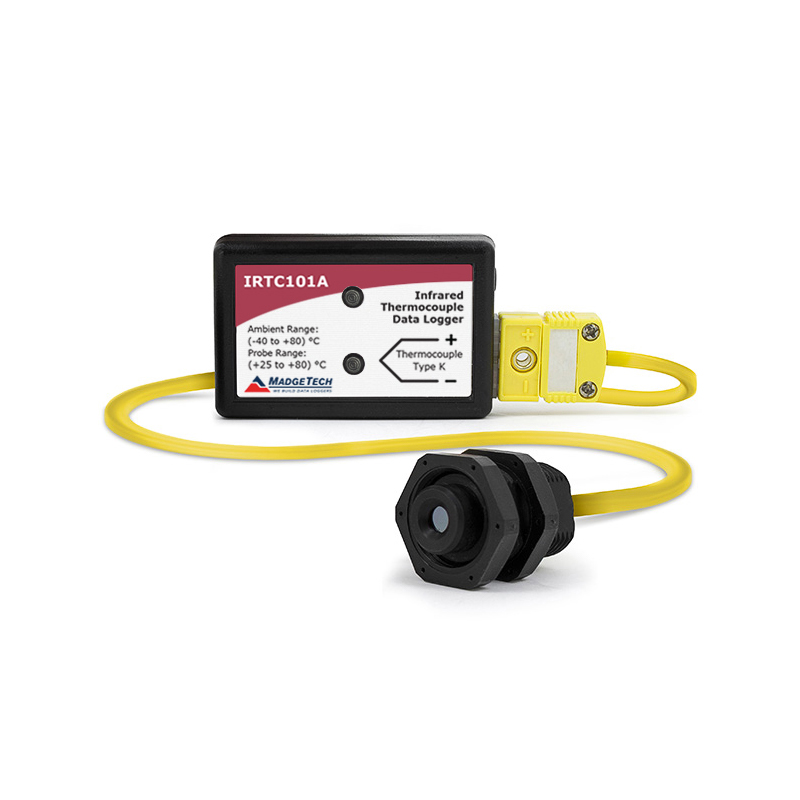

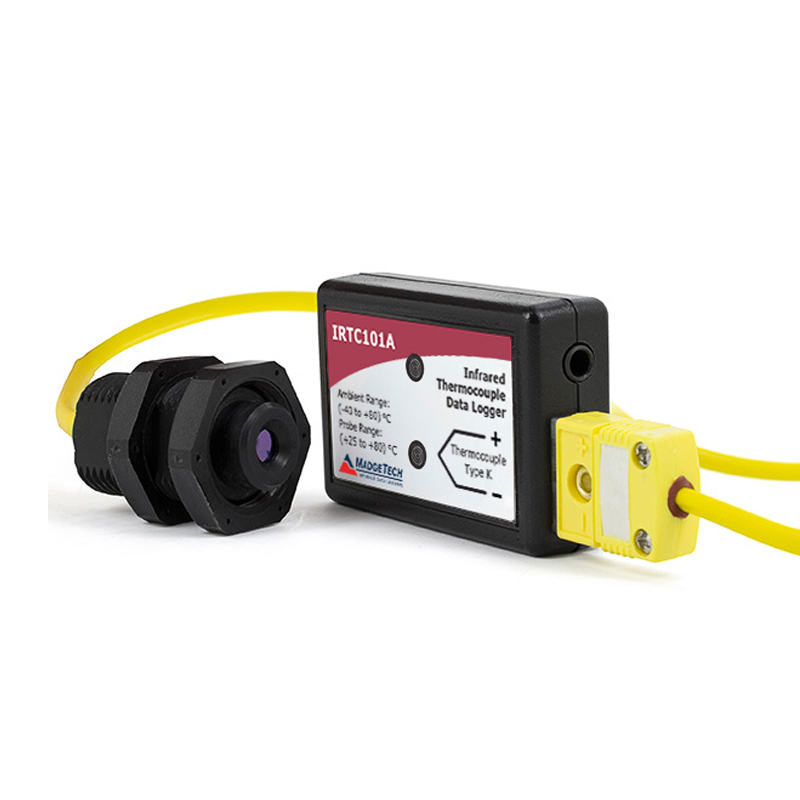

The IRTC101A is an infrared, thermocouple-based temperature data logger. Includes ISO/IEC 17025 Accredited Certificate.IRTC101A
Key Features:
- Compact Size
- Memory Capacity of 800,000+ Readings
- Non-Contact Temperature Measurements
Availability: 5-7 Business Days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The IRTC101A is an infrared, thermocouple-based temperature data logger. This device provides non-contact temperature measurements, making it the perfect solution for monitoring surface temperatures and moving objects.
The IRTC101A measures and records temperatures from 25 ºC to 80 ºC (77 ºF to 176 ºF) and has a storage capacity of up to 838,041 readings. Featuring a 10-year battery life, the IRTC101A can be deployed long-term and even programmed to start up to 18 months in advance.
The IRTC101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MADGETECH-IRTC101A Product User Guide.pdf
MADGETECH-IRTC101A Specification Sheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | IRTC101A |
| Memory | 838,041 readings (all channels enabled) |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Cold Junction Compensation | Automatic |
| Channels | 1 Internal & 1 Remote |
| LED Indicators | Red & Green |
| Battery Life | 10 years typical (at a 15 minute reading rate) |
| Material | ABS plastic |
| Dimensions | 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm) |
| Operating Environment | -18 °C to +70 °C (-0.4 °F to +158 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Temperature | / |
| Internal Channel Temperature Sensor | Semiconductor |
| Internal Channel Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Internal Channel Temperature Resolution | 0.01 °C (0.018 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C |
| Remote Channel Temperature Sensor | Thermocouple Type K (call for additional options/information) |
| Remote Channel Temperature Range | (Contact MadgeTech for Information) |
| Remote Channel Temperature Resolution | (Contact MadgeTech for Information) |
| Remote Channel Temperature Calibrated Accuracy | (Contact MadgeTech for Information) |
