Disposable Dry Ice Temperature Logger (Built-in Sensor) TempTrak Logo-90

$1,078.00$82,900.00

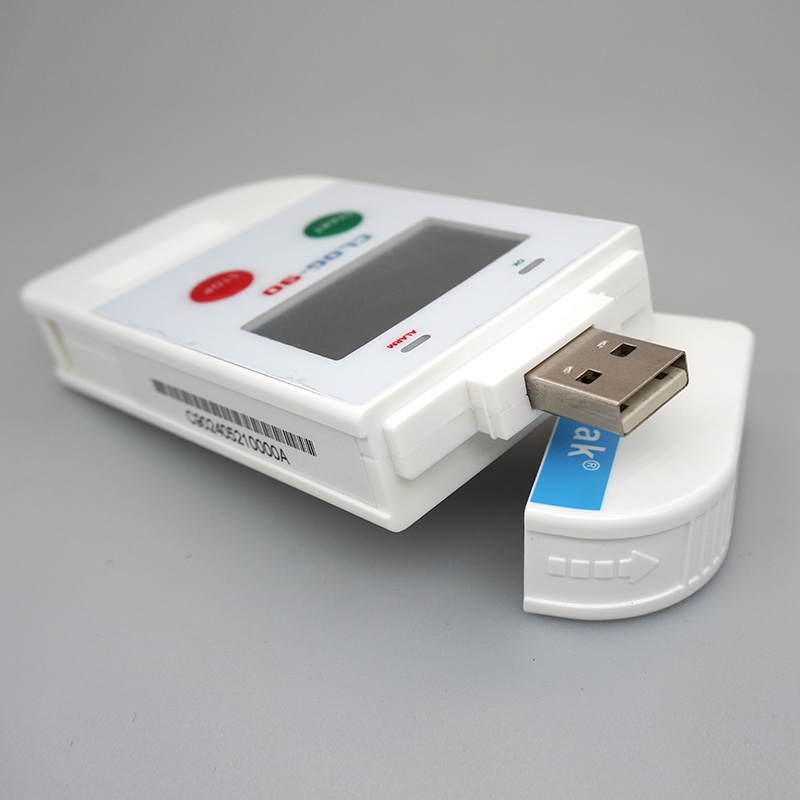

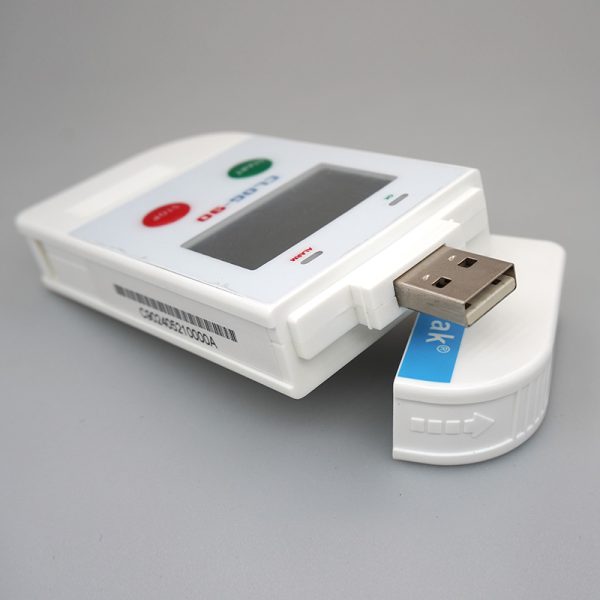

• Universal USB interface to download data directly, without any data cable and dedicated reader
• Tag function to record events that require special attention during the process
• In accordance with IATA PI970 II regulations, TempTrak recorders will be treated as non-hazardous goods
• Complies with RTCA DO-160G regulations, suitable for air transportation of equipment in the active state
• Compliant with GxP specifications

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: N/A Categories: ,

Description

Automatically generate encrypted PDF reports with embedded original data sources

Automatically generate encrypted PDF reports embedded with original data sources without any installation
What software.

No software required, online configuration is supported

No need to install any special software, supports fast and minimalist online file configuration.
Multi-platform compatibility.

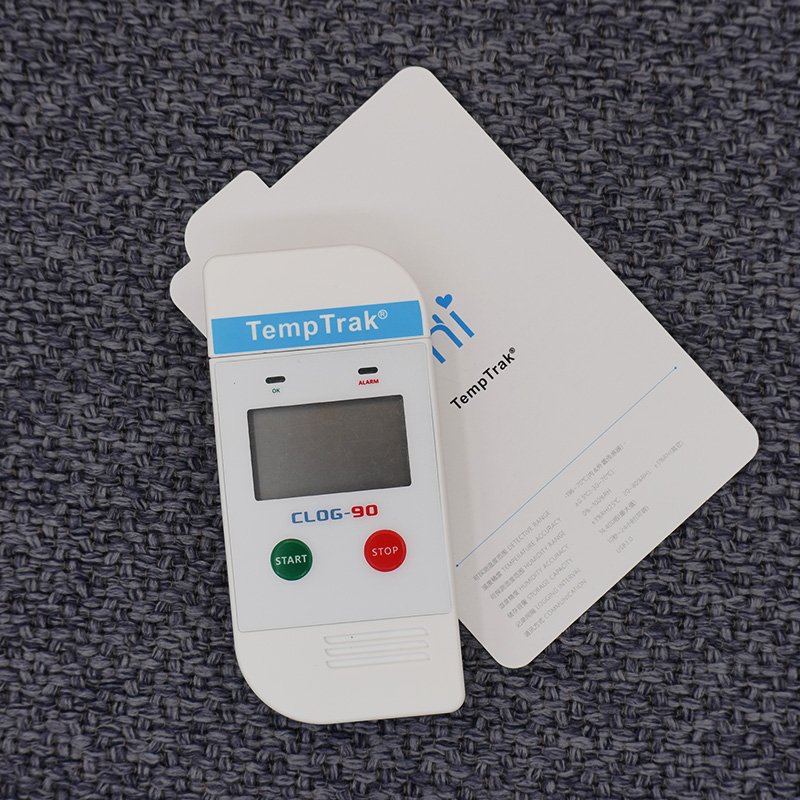

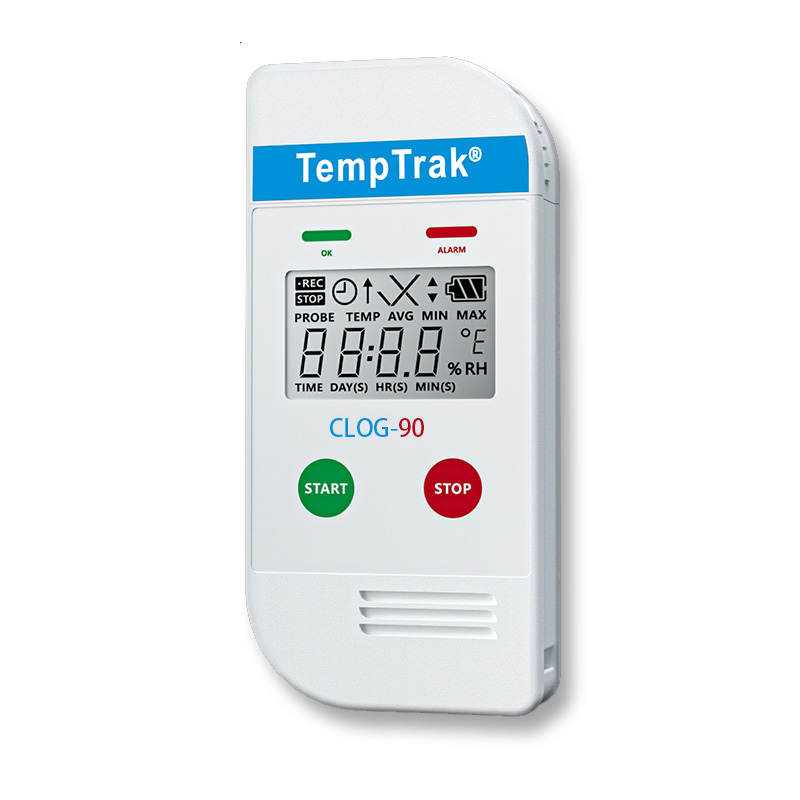

Intuitive LCD indication

Friendly and intuitive LCD display design, presenting all the key information of the monitoring task
Information, including recording statistics, alarm status, operating status, and residual power Pool power.

Alarm function

High and low temperature alarms can be set

IP65 protection class

Comprehensive protection design ensures that the recorder can withstand complex and harsh application scenarios
Continue to work stably.



TempTrak CLOG-90_datasheet.pdf



C902401110000A(5).pdf









Additional information

type

single use

single use

Built-in imported digital sensor chip

data capacity

14400 groups

Measuring range

-90°C…70°C

accuracy

± 0.5 ° C (-50 ° C…70 ° C)
± 1 ° C (other)

Resolution

0.1°C / °F

startup mode

Manual start/automatic start

recording interval

Default 10 minutes, can be set 1 minute to 2 hours

Alarm mode

No alarm by default, you need to set it to contact customer service.

Battery

Two 3.6V lithium batteries (non-replaceable)

Battery life

50 days (default recording interval is 10 minutes)

shelf life

24 months

show

LCD LCD screen
• Normal ( √ ), alarm (x), each alarm area information
• Operating status
• Temperature statistics (maximum, minimum, and average)
• Remaining battery power
• Mark history

interface

USB 2.0

Automatically generate data files

Encrypted PDF data report with original data source embedded

software

No software required

calibration

Original 3-point calibration certificate (traceable to NIST)

certification

CE, RTCA-DO160G, IATA PI970 II

Protection class

IP65

size

105mm x 48mm x 16mm

weight

About 72g

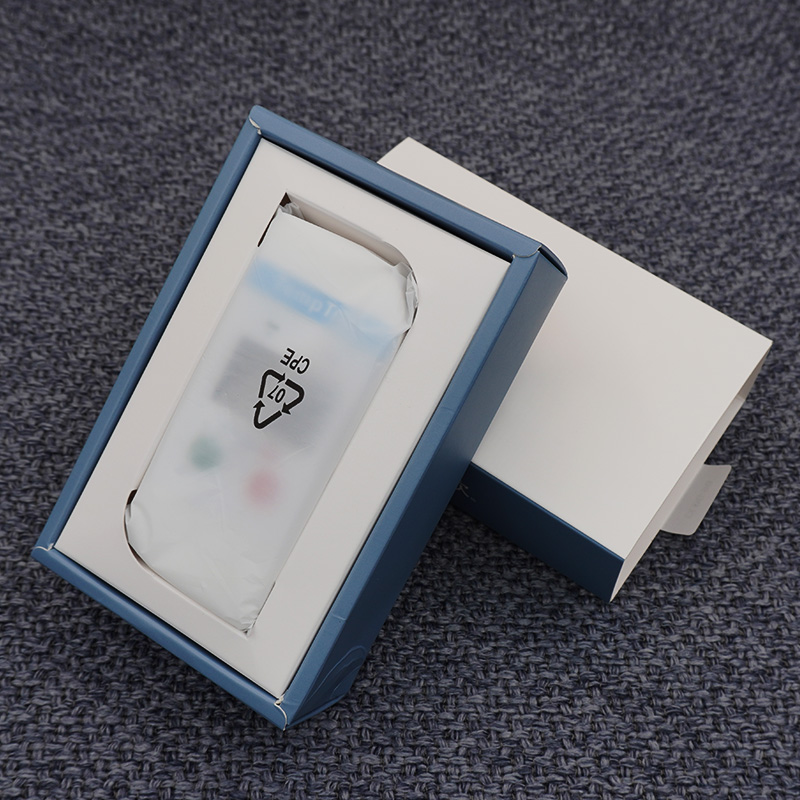

Packaging/Materials

Plastic shell/polycarbonate

Number

100Pcs, 10Pcs, 1Pcs, 50Pcs
