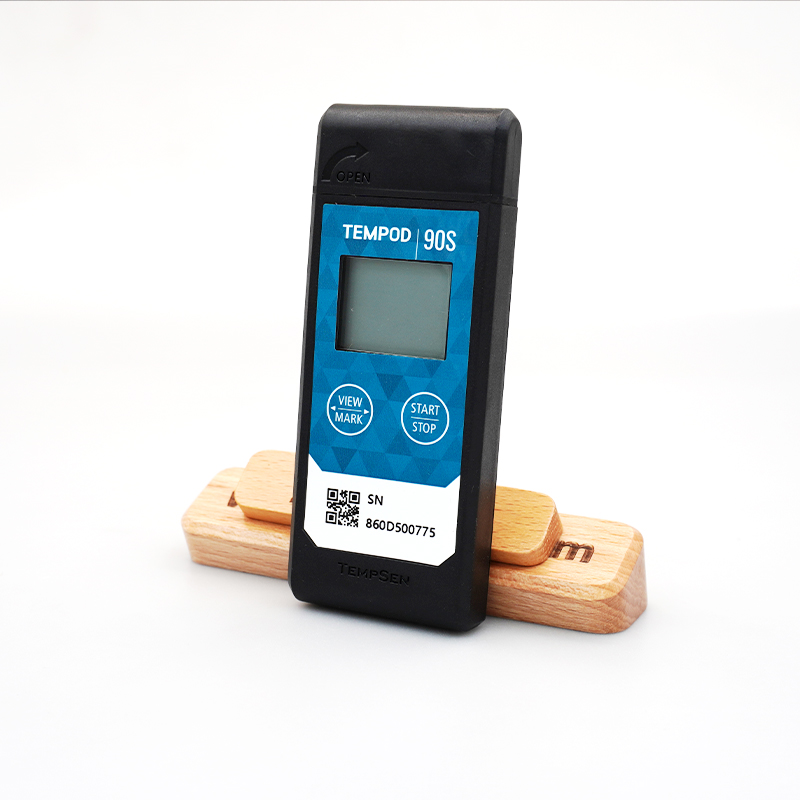

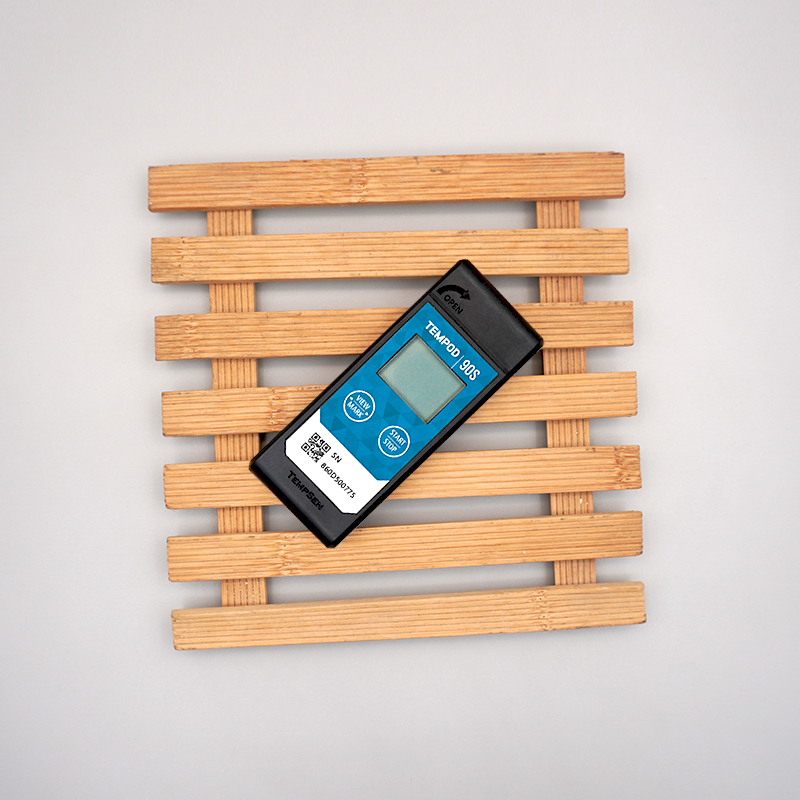

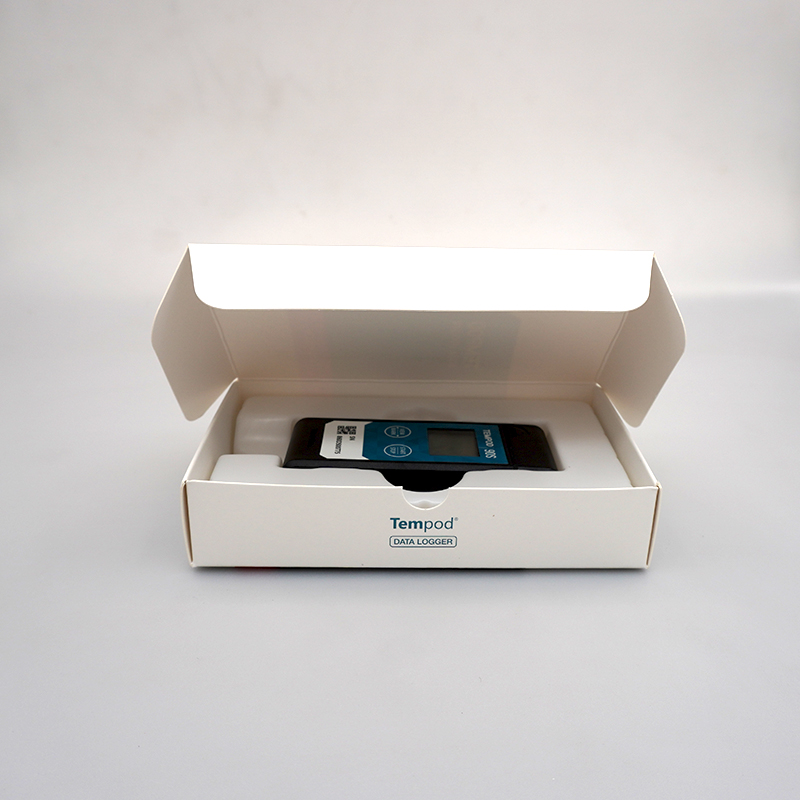

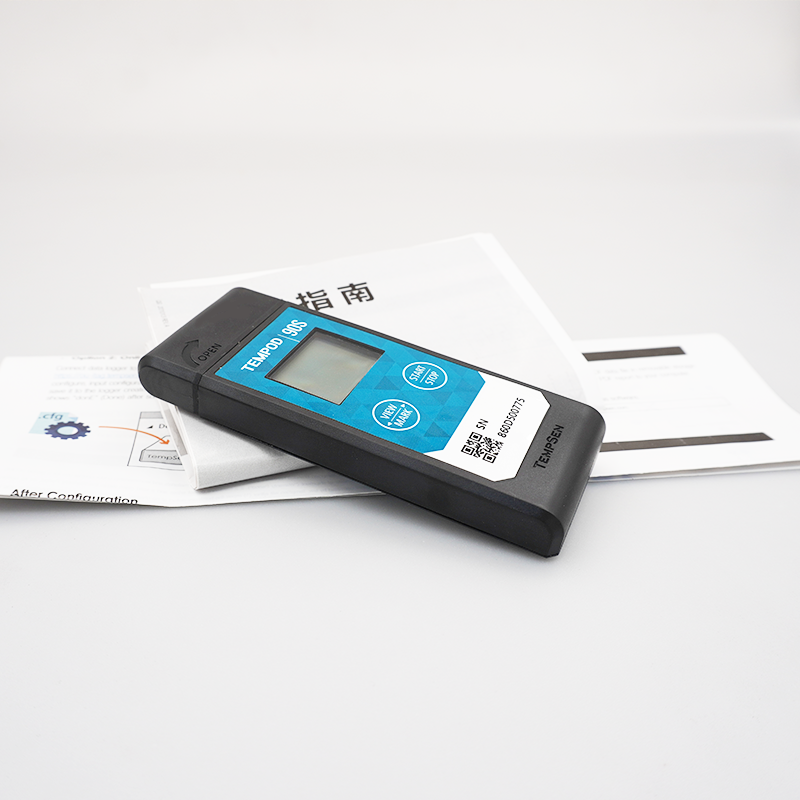

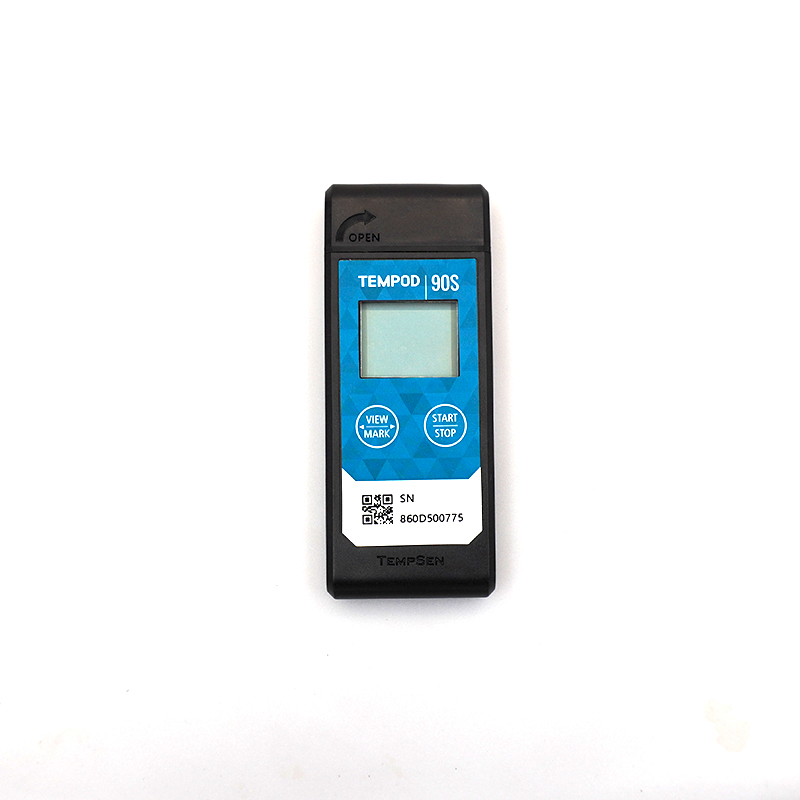

TEMPOD 90S Disposable built-in sensor dry ice temperature recorder

$1,114.00$85,700.00

•The whole machine can be placed into the dry ice temperature control package for internal temperature monitoring throughout the process, which will not damage the temperature control performance of the dry ice package
• Software-free cold chain monitoring solution throughout the process, no need for software to set up the recorder and download the data
• LCD can display operation, alarm status, statistics and remaining power indication
• Original three-point data calibration, each data logger comes with a NIST traceable original calibration report

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: N/A Categories: ,

Description

AUTO PDF REPORT WITH EMBEDDED RAWDATA

Automaticallygenerated encrypted pOF formatreport, no software required to access data file.Embedded raw data allows further data processingvia TempSen cloud and 3rd party system.

SOFTWARE-FREE ONLINE CONFIGURATION

Allos rapid online configuration without installingspecific programming software, multiple platformscompatible.

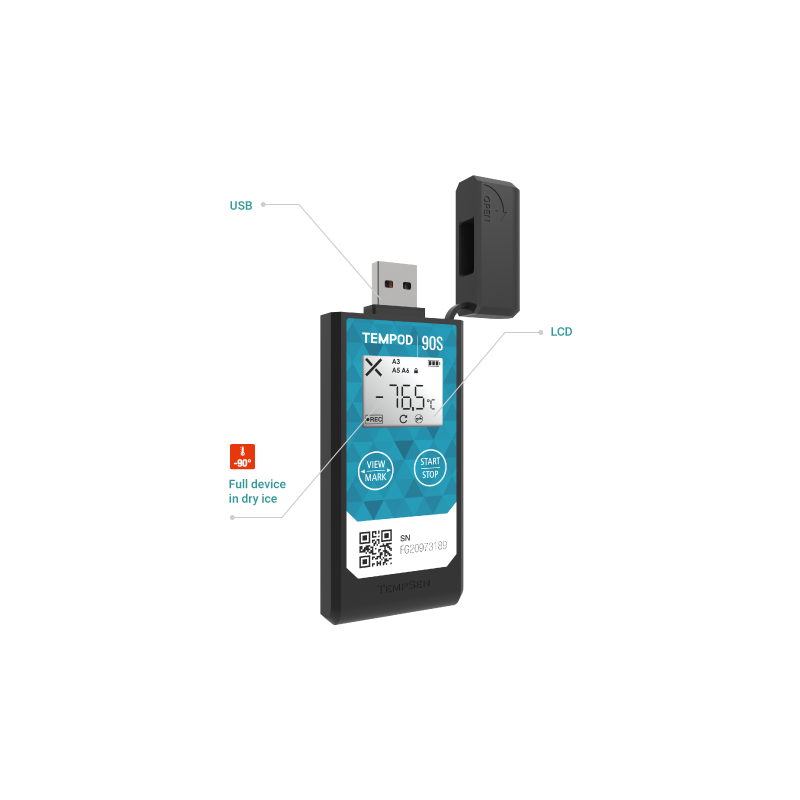

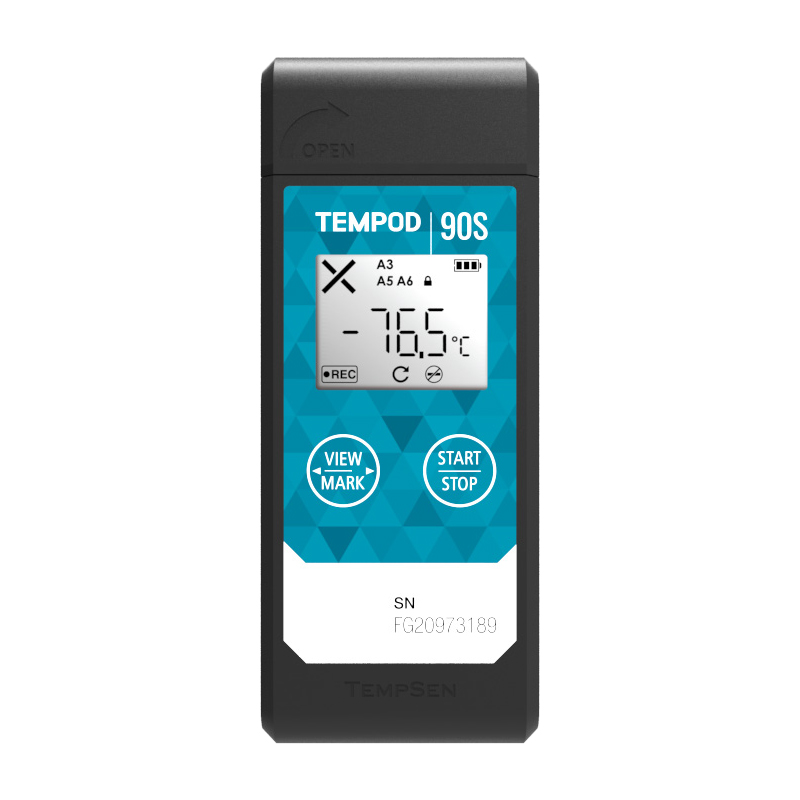

INTUITIVE LCD INDICATION

LcD presents all key information including recordingstatistics, alarm and running status, remaining batteryvolume.

MULTIPLE ALARM RANGES

Up to 5 alarm ranges offer detailed and precisetemperature excursion statistics.

IP65 RATING

Thorough protective design ensures logger continuouslyand stably works in complex environments.



Tempod_90S_Data_Sheet.pdf



Additional information

Type

Single use

Sensor

Temperature: Internal RTO sensor

Memory Capacity

28800 readings

MeasurementRange

-90°C…70°C (-130°F…158°F)

Accuracy

±0.7°C (-90°C…-30°C)
±0.5°C (-30°C …30°)
±0.7°C (30°C …70°C)

Resolution

0.1°C / °F

Start Mode

Mianual/ Auto

Logging Interval

1 minute…2 hours

Alarm Range

High and low alarms / 5 alarm ranges

Battery

3.6V lithium battery

Battery Life

30 days (logging interval >= 5 mins)

Shelf Life

24 months

Display

LCD
• OK (√), Alarm (x), Alarm area
• Operating status
• Temperature statistics (max, min, avg)
• Power indicator
• Mark history

connection

U5B 2.0 Connector

Automatic DataFile

Encrypted PDF report with embeddedraw data

Software

TempCentre2 (21 CFR 11 compliant)

Calibration

Factory NlST traceable 3-point calibration

Certifications

CE, RTCA-DO160G,IATA PI970 Il

Protection Class

IP65

Dimensions

100mmLx40mmWx12mm H

Weight

Approx. 68g

Packaging/Material

Case / Polycarbonate

Number

100Pcs, 10Pcs, 1Pcs, 50Pcs
