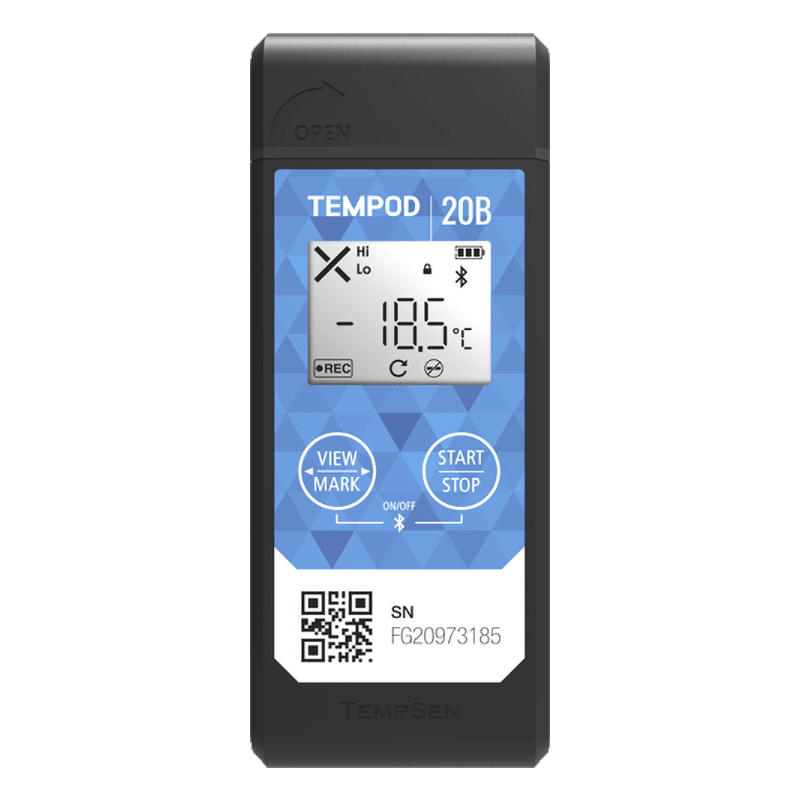

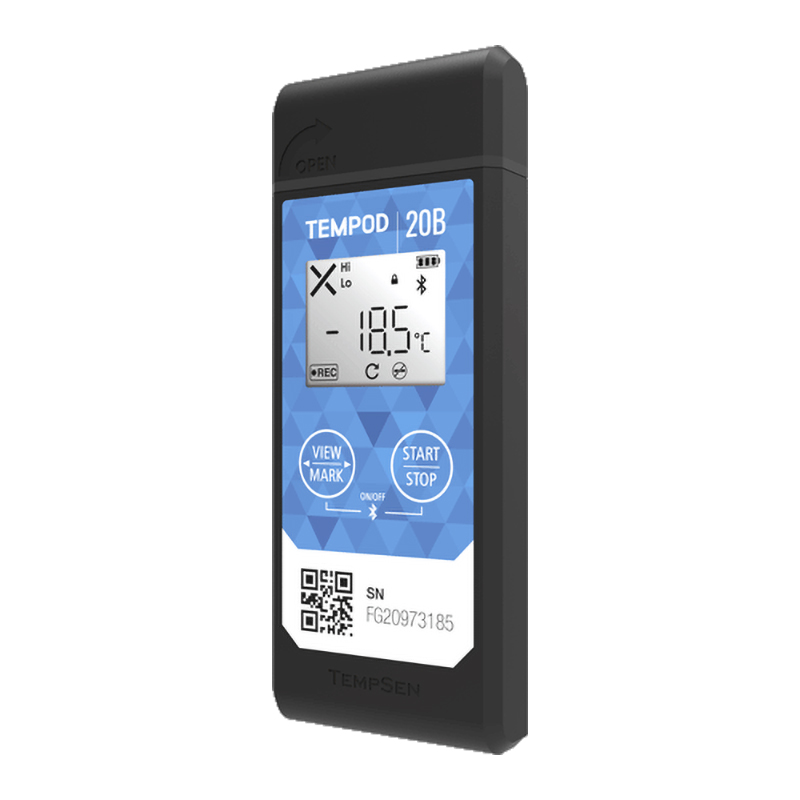

TEMPOD 20B Bluetooth USB + PDF Temperature Data Logger
$112.00 – $8,600.00
•You can quickly connect via Bluetooth 4.0 outside cold chain vehicles, packaging, and containers to set up and download data loggers
• Airplane mode allows the device to continue monitoring with the Bluetooth signal turned off, and the Bluetooth function of the recorder can be remotely restored and turned on through the TempSen Go App after the goods arrive at the destination
• Software-free cold chain monitoring solution throughout the process, no need for software to set up the recorder and download the data
• You can use the repeat boot function to quickly restart recording without having to set up the device again
• Ultra-low temperature resistant external sensor can monitor extremely low temperature ambient temperature (only applicable to models with external sensors)
• LCD can display operation, alarm status, statistics and remaining power indication
• Original three-point data calibration, each data logger comes with a NIST traceable original calibration report
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Bluetooth 4.0
Users can remotely connect and control data loggers in temperature-controlled packaging, low-temperature refrigerators or cold chain vehicles through Bluetooth, and download data directly
Encrypted PDF data embedded with original data source
Automatically generate encrypted PDF data reports, without the need for software and other accessories to download data. PDF reports cover data summaries, record statistics, data graphs, and data detail list pages. Embedded standard format original data sources help users extract and import data into Tempsen Cloud or third-party Enterprise Resource Planning.
Rabbit software settings
Support fast online setup, no need to install any software or drivers, cross-platform compatibility
Multi-segment alarm area
Support 5-zone temperature alarm to provide you with more accurate temperature overrun statistics
password protection
Protect the device with a password to prevent unauthorized parties from setting or modifying operating parameters at will
Comply with air cargo safety regulations
Compliant with IATA PI970II and RTCA/DO-160G standards, you can safely use this record in air transportation
Tempod_20B Bluetooth Data Logger _ Data Sheet.pdf
Additional information
| Brand | TEMPOD |
|---|---|
| Model | 20B |
| type of use | repeatability |
| sensor | Temperature: Built-in NTC sensor |
| Storage capacity | 28,800 data points |
| Measuring range | -20°C…70°C (-4°F…158°F) |
| accuracy | ±0.3°C (-20°C…20°C) |
| resolution | 0.1°C / °F |
| startup mode | Manual/automatic/temperature condition start |
| recording interval | 1 minute… 2 hours |
| Alarm segmentation | High and low temperature/5-stage alarm |

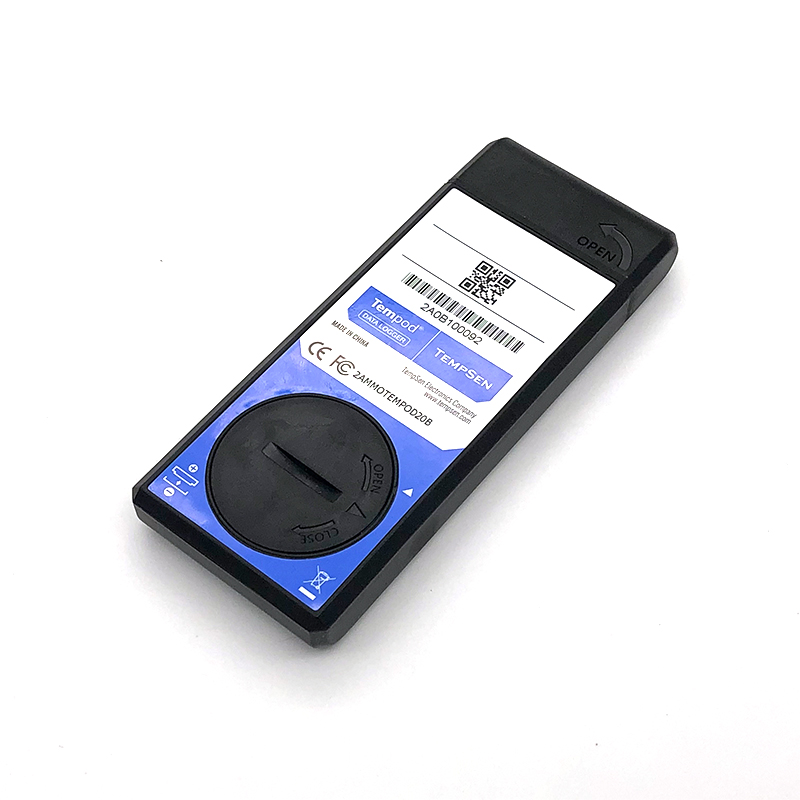

| Battery | 3.0V lithium battery, replaceable by user. |
| Battery life | Twelve months. |
| show | LCD |
| key | Start/stop/view/mark |

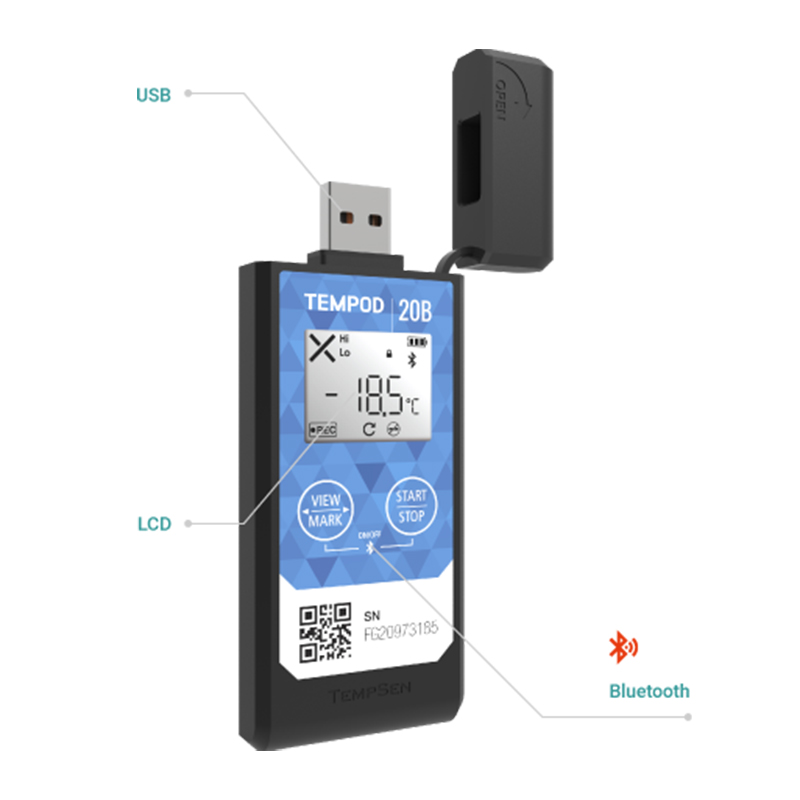

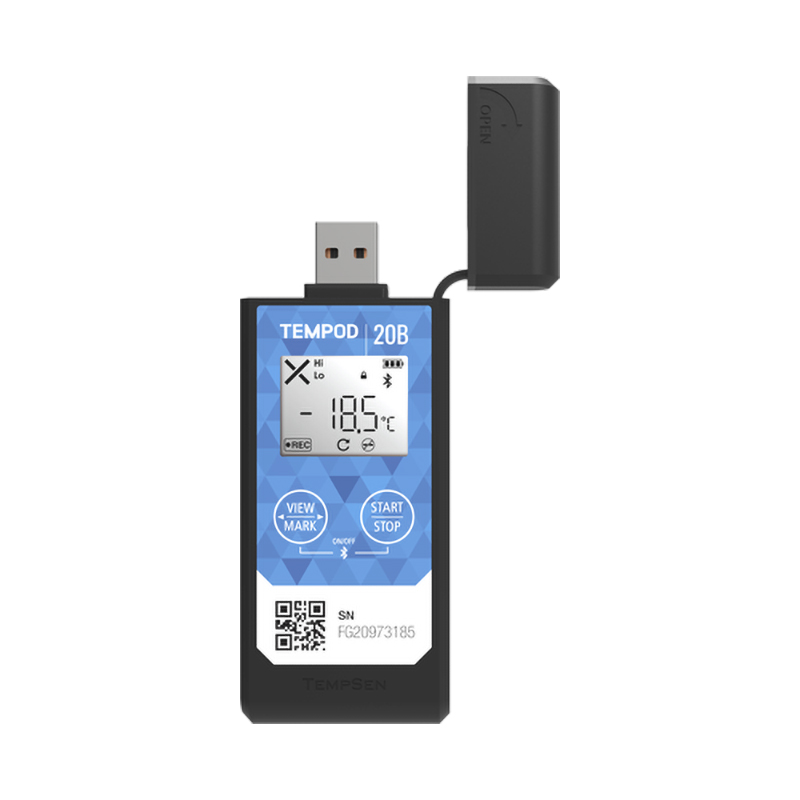

| connection method | USB, Bluetooth 4.0 |
| automatic data file | Encrypted PDF report with original data source embedded |
| software | TempSen Express |
| system compatibility | Windows 7 / 10 / 11 |
| calibration | Traceability NIST factory 3-point calibration |
| certification | CE, FCC, RTCA-DO160G, IATA PI970 II, RoHS, WEEE |
| Protection level | IP65 |
| size | 100mm L x 40mm W x 12mm H |
| weight | About 70g |
| Number | 100Pcs, 10Pcs, 1Pcs, 50Pcs |
