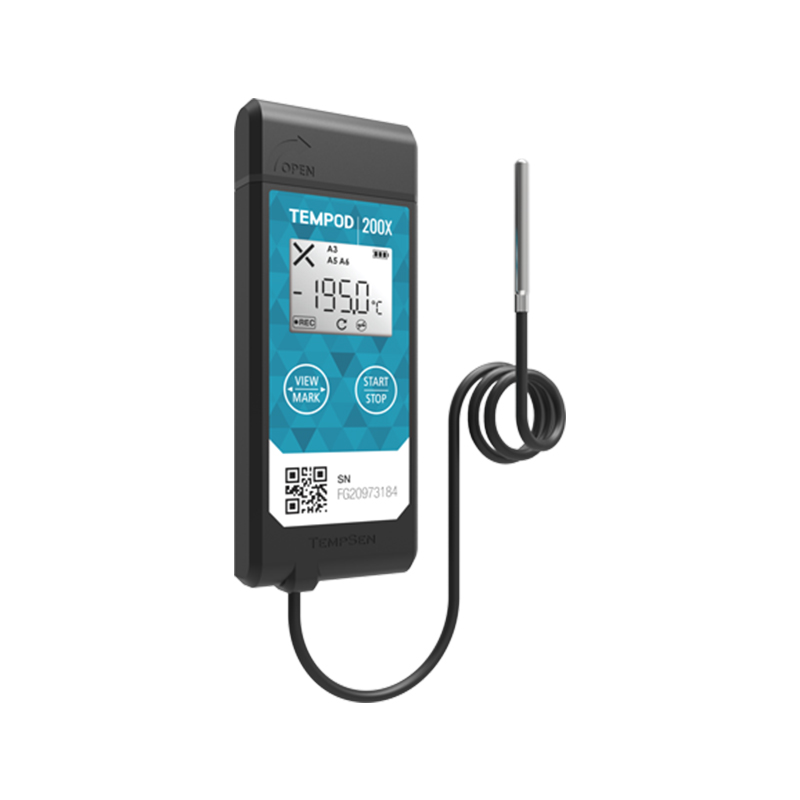

TEMPOD 200X External RTD Probe Extremely Low Temperature USB PDF Temperature Data Logger
$1,430.00 – $110,000.00
• Software-free cold chain monitoring solution throughout the process, no need for software to set up the recorder and download the data
• Ultra-low temperature resistant external sensor can monitor extremely low temperature ambient temperature (only applicable to models with external sensors)
• You can use the repeat boot function to quickly restart recording without having to set up the device again
• LCD can display operation, alarm status, statistics and remaining power indication
• Original three-point data calibration, each data logger comes with a NIST traceable original calibration report
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Tempod_200X_Data_SheetEncrypted PDF data embedded with original data source
Automatically generate encrypted PDF data reports, without the need for software and other accessories to download data. PDF reports cover data summaries, record statistics, data graphs, and data detail list pages. Embedded standard format original data sources help users extract and import data into TempSen Cloud or third-party Enterprise Resource Planning.
No software settings required.
Support fast online setup, no need to install any software or drivers, cross-platform compatibility
Multiple alarm areas
Support 5-zone temperature alarm to provide you with more accurate temperature overrun statistics
password protection
Protect the device with a password to prevent unauthorized parties from setting or modifying operating parameters at will
Meet aviation cargo safety specifications.
Comply with IATA PI970 II and RTCA/DO-160G standards. You can safely use this recorder in air transportation.
Tempod_200X_Data_Sheet.pdf
Additional information
| type of use | repeatability |
|---|---|
| sensor | Temperature: External RTD sensor probe (1m) |
| storage capacity | 28,800 data points |
| Measuring range | -200°C…70°C (-328°F…158°F |
| accuracy | ±0.5°C (-100°C…70°C) |
| resolution | 0.1°C / °F |
| startup mode | Manual/automatic/temperature condition start |
| recording interval | 1 minute… 2 hours |
| alarm segmentation | High and low temperature / 5-level alarm |
| Battery | 3.0V lithium battery, user replaceable |
| Battery life | 18 months. |
| show | LCD |
| key | Start / Stop / View / Mark |
| method | USB |
| automatic data file | Encrypt PDF reports with embedded original data. |
| software | TempSen Express |
| system compatibility | Windows 7 / 10 / 11 |
| calibration | Traceability NIST factory 3-point calibration |
| certification | CE, FCC, RTCA-DO160G, IATA PI970 II, RoHS, WEEE |
| Protection level | IP65 |
| size | 100mm L x 40mm W x 12mm H |
| weight | About 68g |
| Number | 100Pcs, 10Pcs, 1Pcs, 50Pcs |
