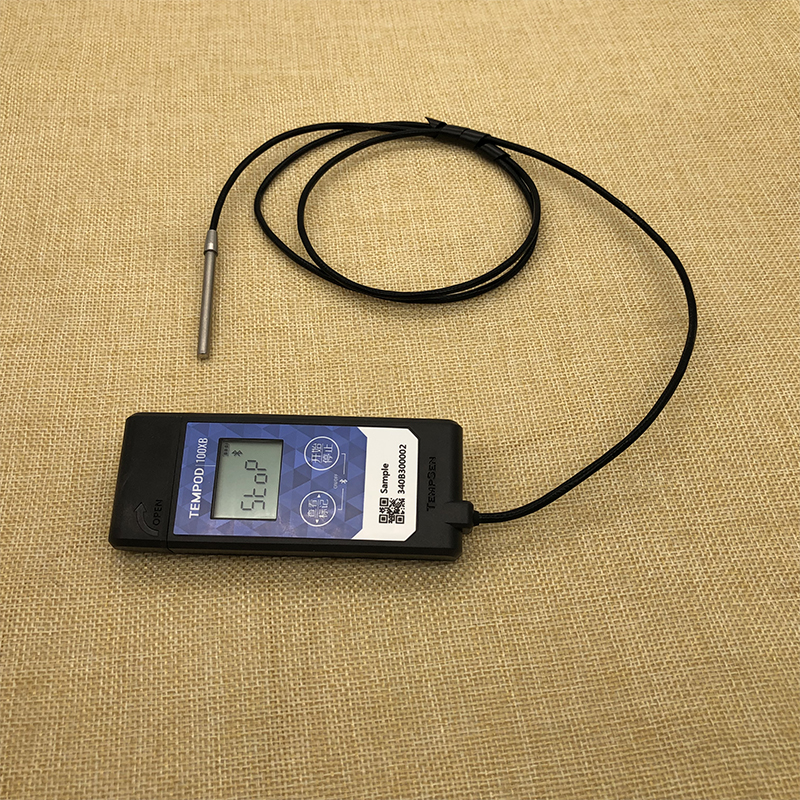

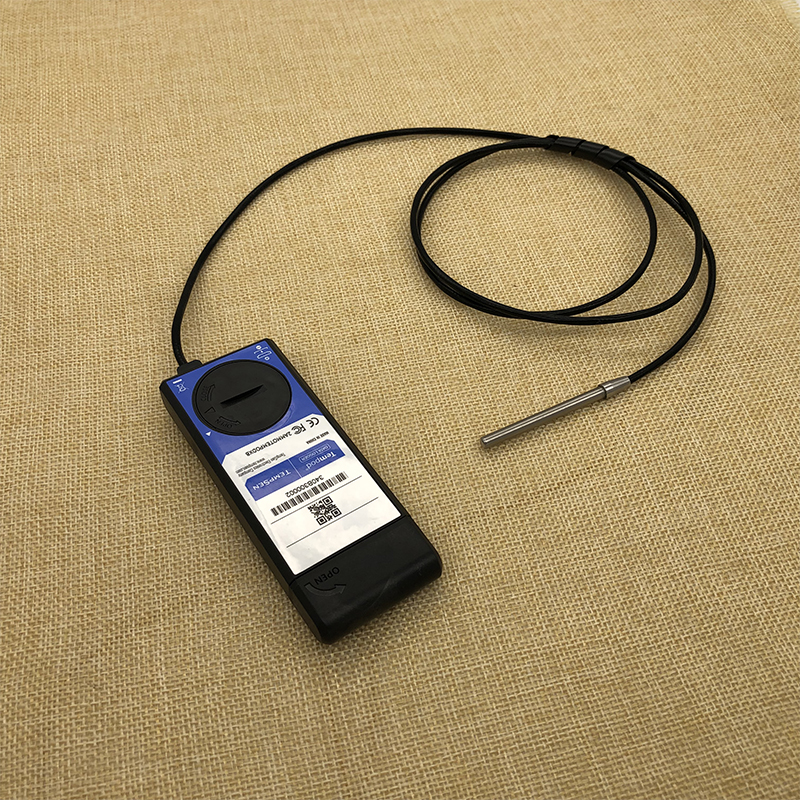

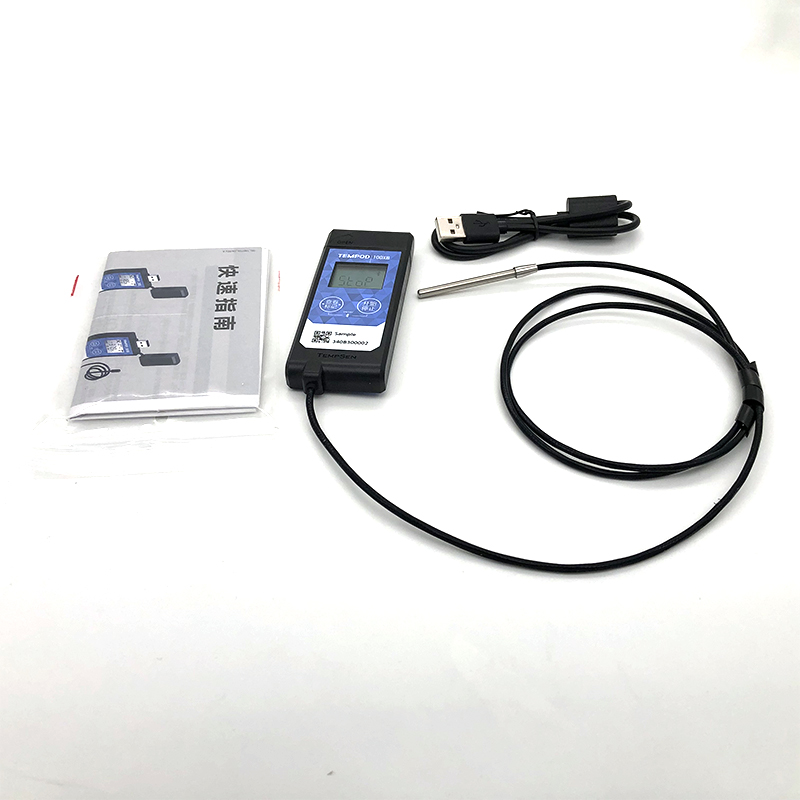

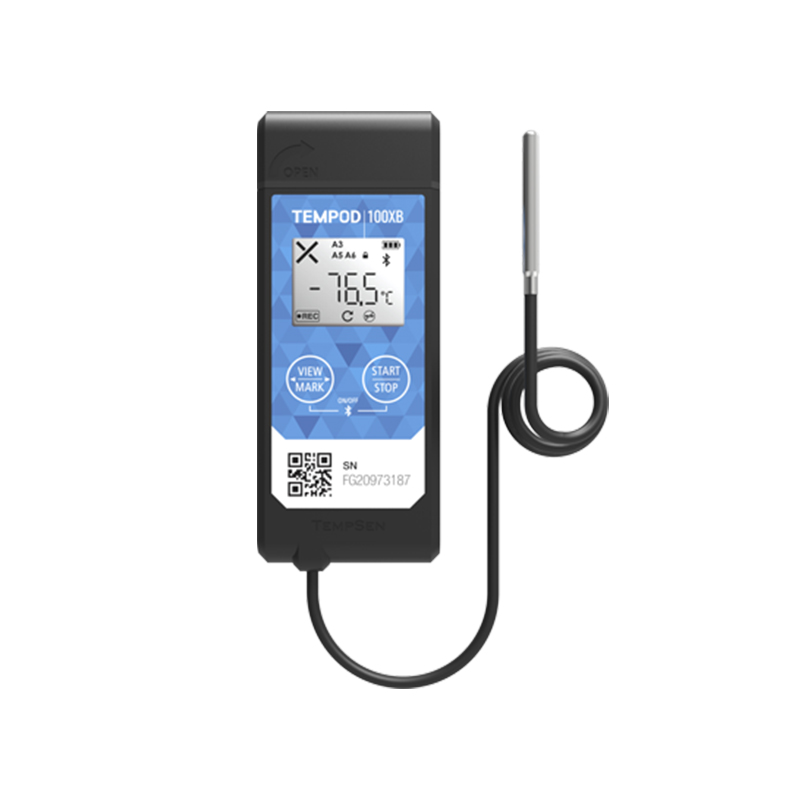

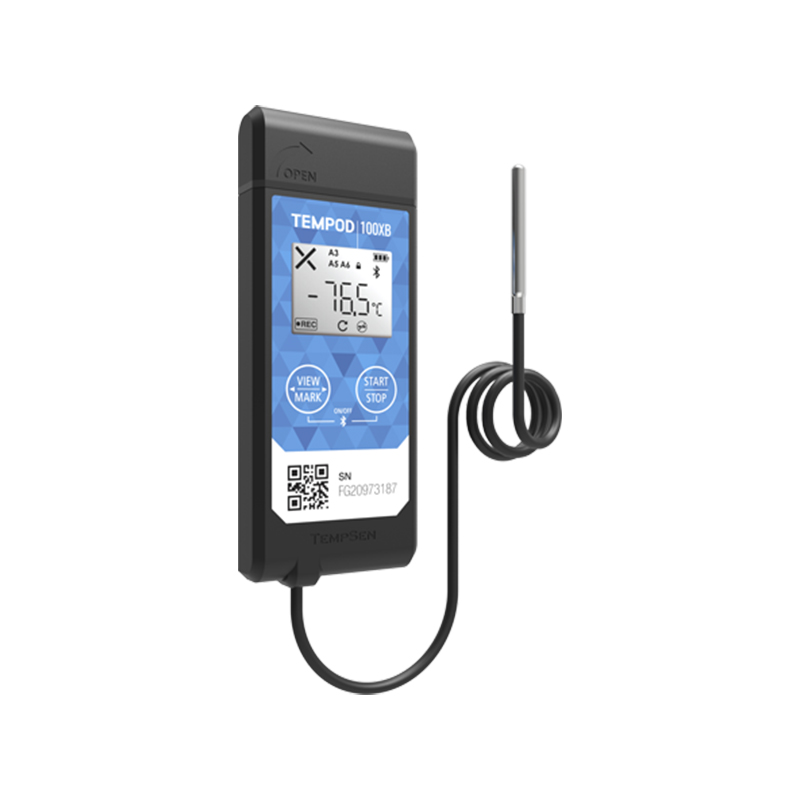

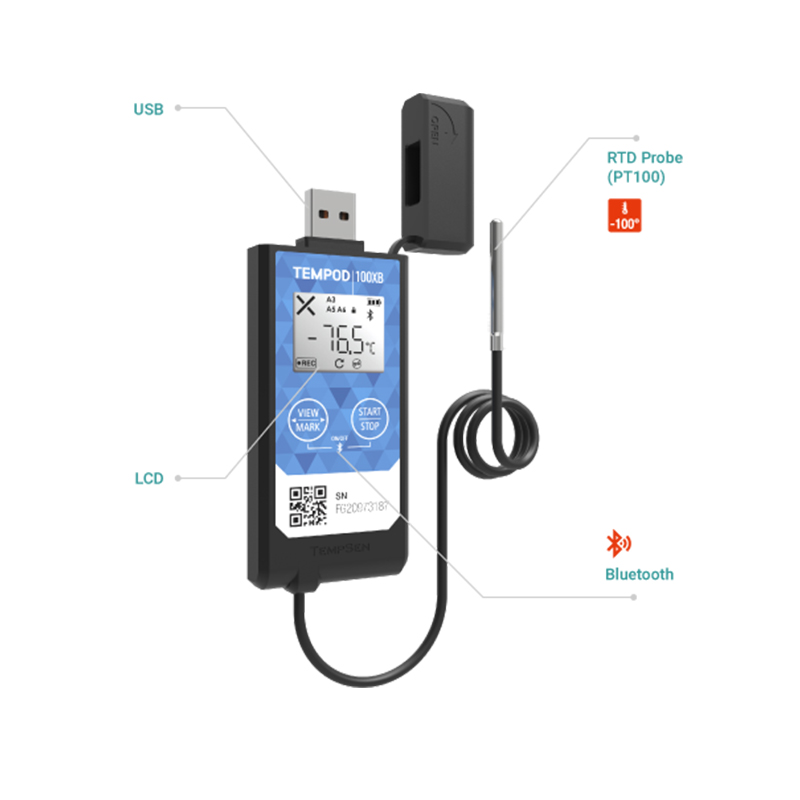

TEMPOD 100XB External RTD Probe Bluetooth USB PDF Temperature Data Logger

$1,468.00$112,900.00

• You can quickly connect via Bluetooth 4.0 outside cold chain vehicles, packaging, and containers to set up and download data loggers
• Airplane mode allows the device to continue monitoring with the Bluetooth signal turned off, and the Bluetooth function of the recorder can be remotely restored and turned on through the TempSen Go App after the goods arrive at the destination
• Software-free cold chain monitoring solution throughout the process, no need for software to set up the recorder and download the data
• You can use the repeat boot function to quickly restart recording without having to set up the device again
• Ultra-low temperature resistant external sensor can monitor extremely low temperature ambient temperature (only applicable to models with external sensors)
• LCD can display operation, alarm status, statistics and remaining power indication

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: N/A Categories: ,

Description

Bluetooth 4.0

Users can remotely connect and control data loggers in temperature-controlled packaging, low-temperature refrigerators or cold chain vehicles through Bluetooth, and download data directly

Encrypted PDF data embedded with original data source

Automatically generate encrypted PDF data reports, without the need for software and other accessories to download data. PDF reports cover data summaries, record statistics, data graphs, and data detail list pages. Embedded standard format original data sources help users extract and import data into TempSen Cloud or third-party Enterprise Resource Planning.

No software settings required.

Support fast online setup, no need to install any software or drivers, cross-platform compatibility

Multiple alarm areas

Support 5-zone temperature alarm to provide you with more accurate temperature overrun statistics

Meet aviation cargo safety specifications.

Compliant with IATA PI970 II and RTCA/DO-160G standards, you can safely use this recorder in air transportation



Tempod_100XB Bluetooth Data Logger _ Data Sheet.pdf



Additional information

type of use

repeatability

sensor

Temperature: External RTD sensor probe (1m)

Storage capacity

28,800 data points

Measuring range

-100°C…70°C (-148°F…158°F)

accuracy

±0.5°C

resolution

0.1°C / °F

startup mode

Manual/automatic/temperature condition start

recording interval

1 minute… 2 hours

alarm segmentation

High and low temperature / 5-level alarm

Battery

3.0V lithium battery, user replaceable

Battery life

12 months

show

LCD
• OK (√), Alarm (x), Alarm area
• Operating status
• Bluetooth signal and status
• Temperature statistics (max, min, avg)
• Power indicator
• Mark history

key

Start/stop/view/mark

connection method

USB, Bluetooth 4.0

automatic data file

Encrypted PDF report with original data source embedded

software

TempSen Express

system compatibility

Windows 7 / 10 / 11

calibration

Traceability of three-point calibration of NIST factory.

authentication

CE, FCC, RTCA-DO160G, IATA PI970 II, RoHS, WEEE

protection level

IP65

size

100mm L x 40mm W x 12mm H

weight

About 70g

Number

100Pcs, 10Pcs, 1Pcs, 50Pcs
