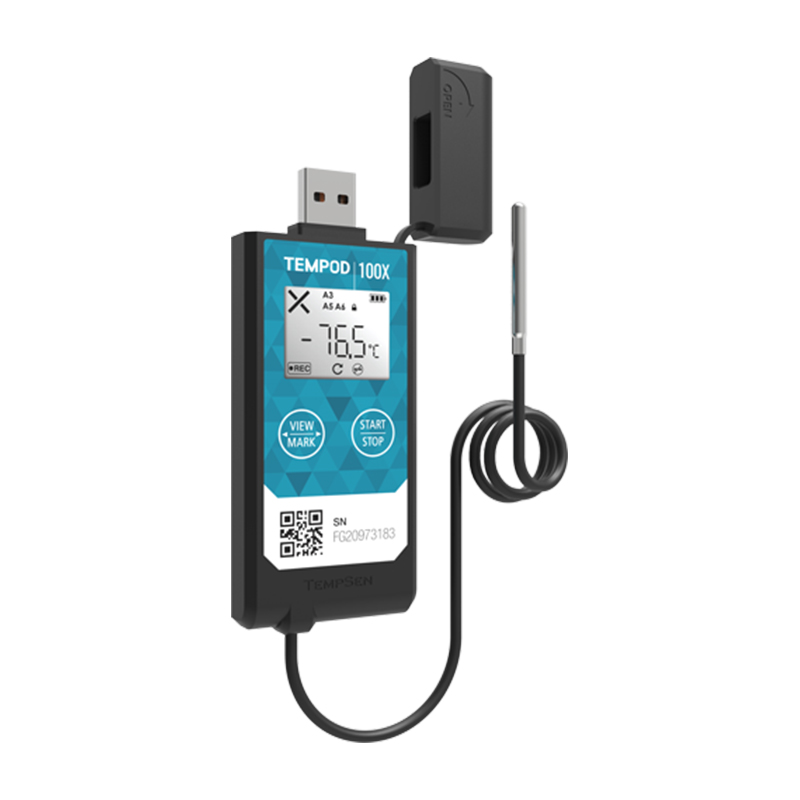

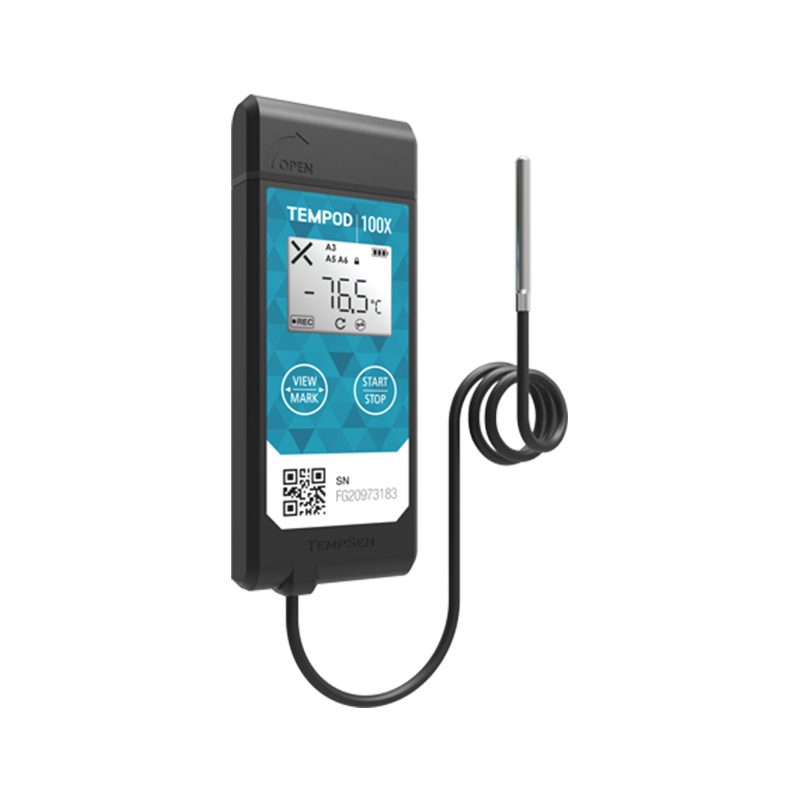

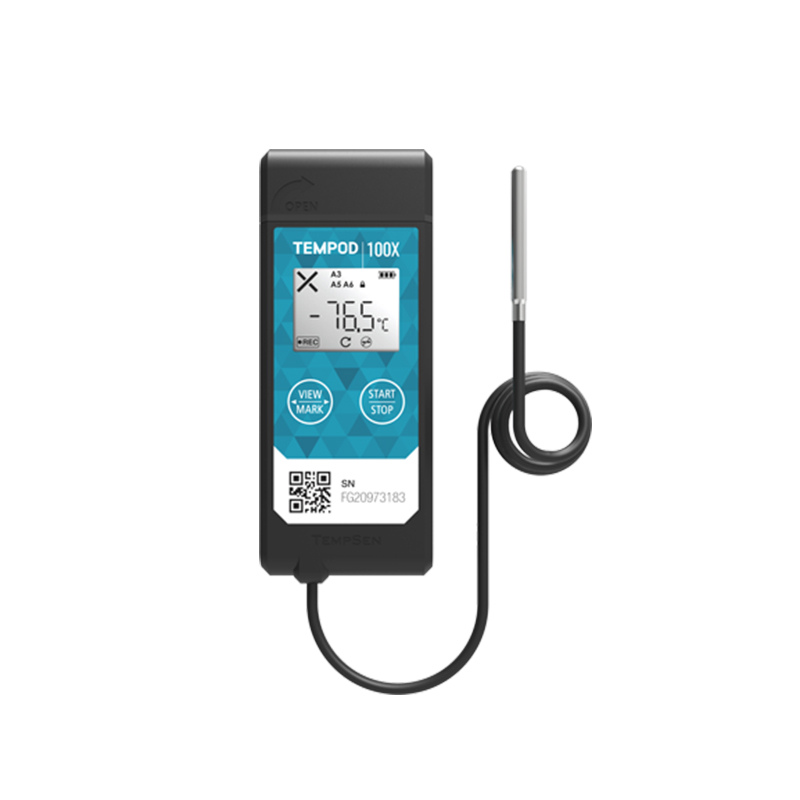

TEMPOD 100X External RTD Probe Ultra Low Temperature USB PDF Temperature Data Logger
$1,282.00 – $98,600.00
• Software-free cold chain monitoring solution throughout the process, no need for software to set up the recorder and download the data
• Ultra-low temperature resistant external sensor can monitor extremely low temperature ambient temperature (only applicable to models with external sensors)
• You can use the repeat boot function to quickly restart recording without having to set up the device again
• LCD can display operation, alarm status, statistics and remaining power indication
• Original three-point data calibration, each data logger comes with a NIST traceable original calibration report
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Encrypted PDF data with embedded original data.Tempod_100X_Data_Sheet
Automatically generate encrypted PDF data reports, without the need for software and other accessories to download data. PDF reports cover data summaries, record statistics, data graphs, and data detail list pages. Embedded standard format original data sources help users extract and import data into TempSen Cloud or third-party Enterprise Resource Planning.
No software settings required.
Support fast online setup, no need to install any software or drivers, cross-platform compatibility
Multi-segment alarm area
Support 5-zone temperature alarm and provide you with more accurate statistics on temperature overruns.
password protection
Protect the device with a password to prevent unauthorized parties from setting or modifying operating parameters at will
Comply with air cargo safety regulations
Compliant with IATA PI970 II and RTCA/DO-160G standards, you can safely use this recorder in air transportation
Tempod_100X_Data_Sheet.pdf
CNAS calibration certificate_Tempod 100X Chongqing Liujiang Pharmaceutical Technology Co., Ltd.pdf
CNAS calibration certificate_Tempod 100X Shanghai Yimi Cold Chain Transportation Co., Ltd.pdf
Additional information
| type of use | repeatability |
|---|---|

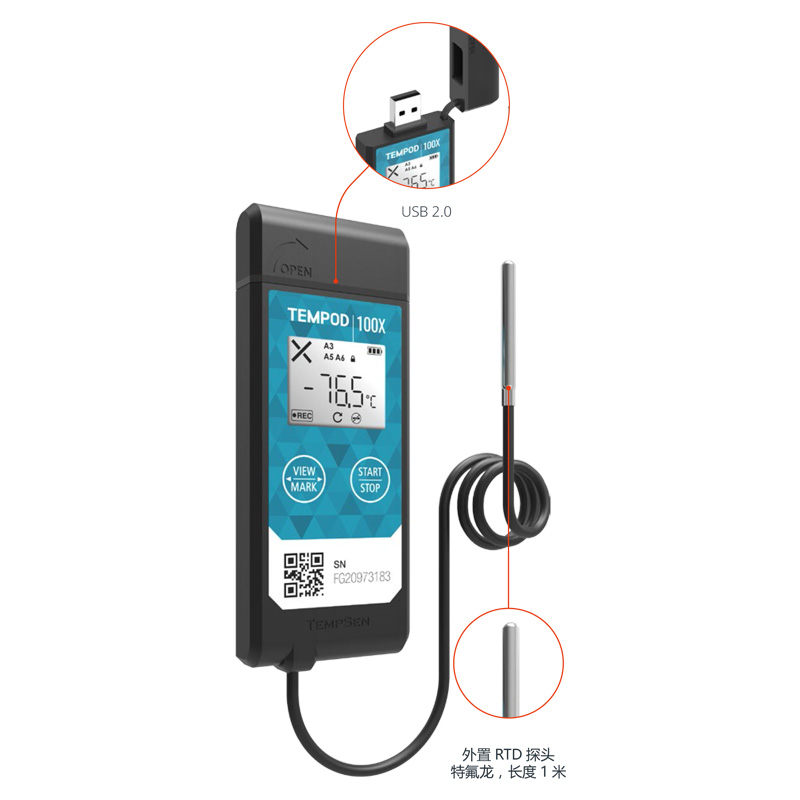

| sensor | Temperature: External RTD sensor probe (1m) |
| Storage capacity | 28,800 data points |
| Measuring range | -100°C…70°C (-148°F…158°F) |
| accuracy | ±0.5°C |
| resolution | 0.1°C / °F |
| startup mode | Manual/automatic/temperature condition start |
| recording interval | 1 minute… 2 hours |
| alarm segmentation | High and low temperature / 5-level alarm |
| Battery | 3.0V lithium battery, user replaceable |
| Battery life | 18 months. |
| show | LCD |
| key | Start/stop/view/mark |
| connection method | USB |
| automatic data file | Encrypted PDF report with original data source embedded |
| software | TempSen Express |
| system compatibility | Windows 7 / 10 / 11 |
| calibration | Traceability NIST factory 3-point calibration |
| certification | CE, FCC, RTCA-DO160G, IATA PI970 II, RoHS, WEEE |
| Protection level | IP65 |
| size | 100mm L x 40mm W x 12mm H |
| weight | About 68g |
| Number | 100Pcs, 10Pcs, 1Pcs, 50Pcs |
