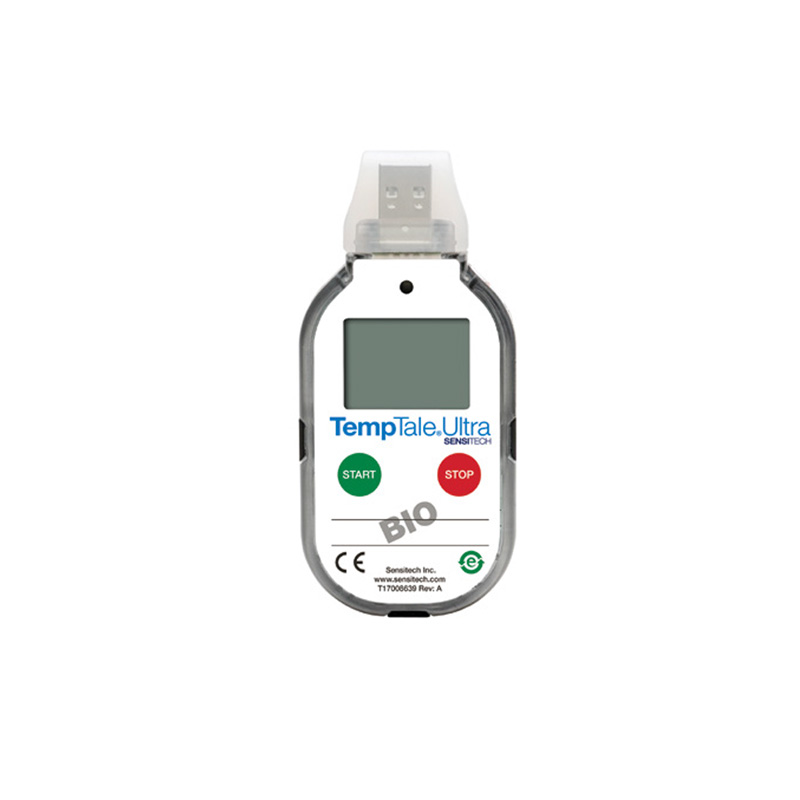

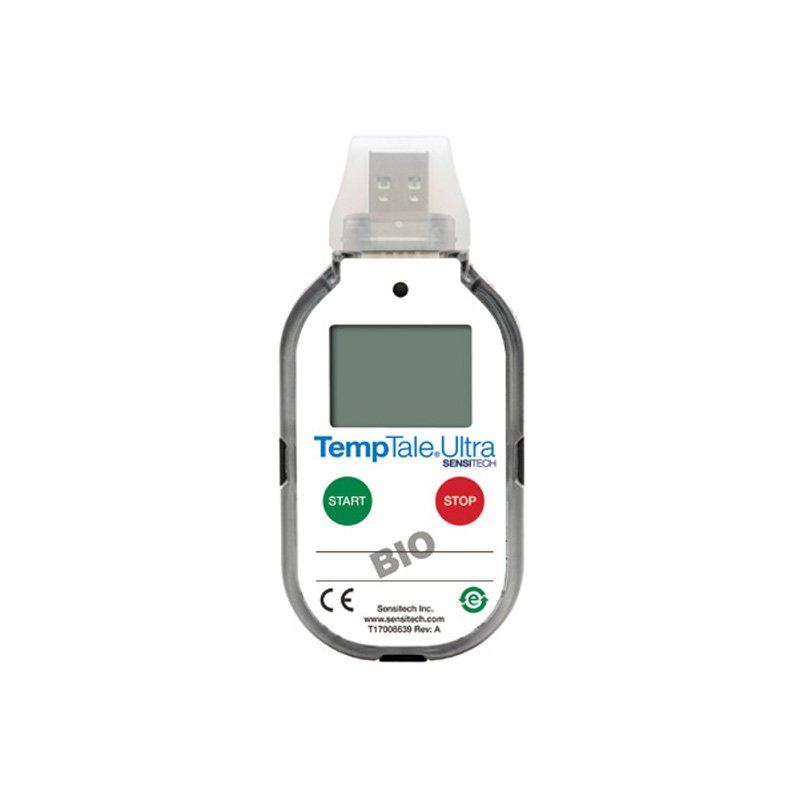

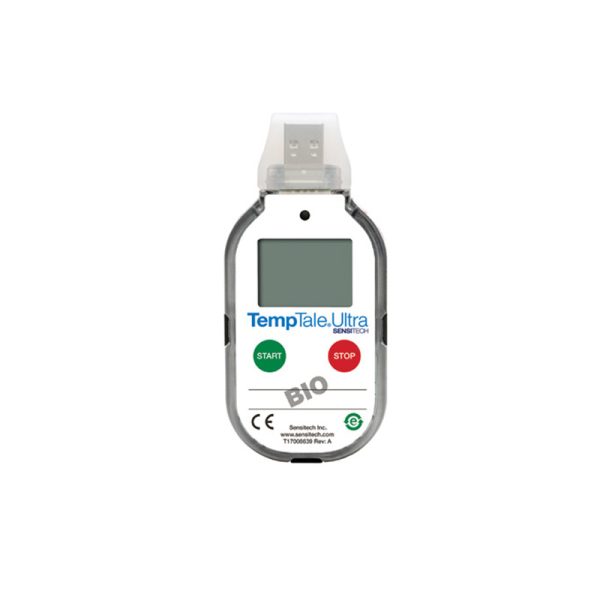

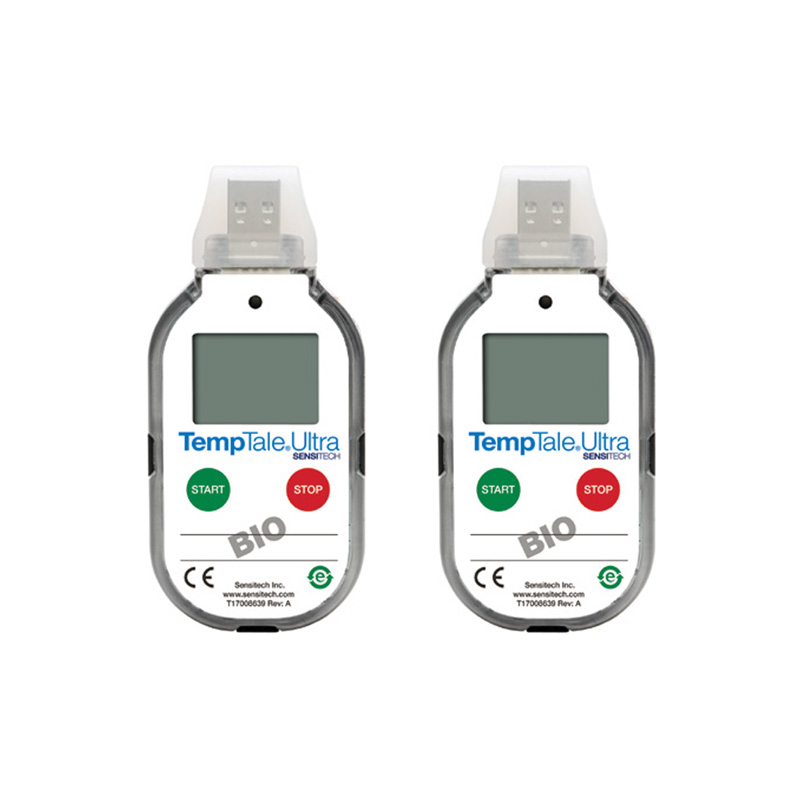

SENSITECH TempTale Ultra BIO- TUB00-01- single use
$1,966.00
• Accuracy of ± 0.22 ° C over a temperature range of -10 ° C to + 25 ° C
• Supports up to six programmable alerts, including MKT and trip duration
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
TempTale Manager® Desktop Software 8.0
TempTale Manager® Desktop (TTMD) software is a robust, multi-lingual, Windows-based software application that is used for configuring, downloading, displaying, reporting and archiving time and temperature data collected from TempTale temperature monitors. The power of TTMD software lies in its
intuitive user interface that allows users to effortlessly retrieve,display and analyze trip data in order to make high-quality shipment disposition decisions, and ensure that Standard Operating Procedures (SOPs) are delivering acceptable results. TTMD’s language support and powerful data export options enhance the user’s ability to share data globally with remote locations and business partners.
ColdStream® Select
ColdStream® Select software is a validated, hosted and secure relational database application that is easily accessible via the Internet for query, reporting and analysis of archived data. ColdStream Select enables users to share critical data quickly and efficiently through password protected, selective access—across their own organization, as well as with business partners. ColdStream Select provides centralized storage for time and temperature records in a secure, 21 CFR Part 11 compliance repository. The hosted database application enables robust cold chain data analysis, reporting, and potential opportunities for process improvement. The reporting and analysis services are provided by Sensitech’s Global Professional Services Team.
SENSITECH-TempTale® Ultra BIO.pdf
Additional information
| Brand | SENSITECH |
|---|---|
| Model | TempTale® Ultra BIO |
| Monitoring Recording Options | Single Use, Single-Use with User Programmable Overwrite, or Multiple Use |
| Temperature Measurement Range | -30°C to + 70°C |
| Temperature Accuracy Range | ±0.22°C from -10°C to +25°C |
| Temperature Resolution | 0.1°C/F over full temperature measurement range |
| Data Memory Typ | Non-volatile 16K Flash memory |
| Data Storage Capacity | 16,000 data points (16K) |
| Battery Life / Type | 12 months operating life / 3.0v coin cell lithium battery – non-replaceable |
| Data Sampling Interva | Programmable from 30 seconds up to a maximum of 120 minutes |
| Water Resistant Housing | IP64 (with protective cap over USB connector) |
| Start Up Delay | 0 minutes to 24 hours |
| Programmable Alarms | Programmable high and low limits -> alarm is triggered when temperature exceeds set limits; |
| Alarm Delay Time Thresholds | Single event (continuous) or cumulative |
| LCD Indicators | Started, start-up delay, running, stopped; Alarm status: OK (), Alarmed (); Trip summary data |
| Start Up Options | Manual push button or automatic launch option |
| Dimensions | 108mm L x 50.2mm W x 12.5mm H |
| Weight | 51g (1.8 oz) |
| Quality Assurance Certifications | CE, UKCA, RTCA – D016ØG compliant, RoHS compliant, Response time tested to U.S. Pharmacopeia (USP) <1118> |
| Minimum System Requirements | Windows® PC w/ Windows® 7 or higher; Adobe® Reader 9.0 or higher |
| Data Analysis and Cold Chain Continuous Improvement Software | TempTale Manager® Desktop 8.0 or higher; ColdStream® Select or higher |
| Computer Interface | USB 2.0, A-type plug |
| Ship air, ground, ocean in accordance with – | IATA Dangerous Goods Regulations Current Edition; UN 3091, Packing Instruction 970 Section II – Excepted Lithium |
| Number | 100Pcs, 10Pcs, 20Pcs, 50Pcs, 5Pcs |
| Number | 100Pcs, 20Pcs, 50Pcs |
