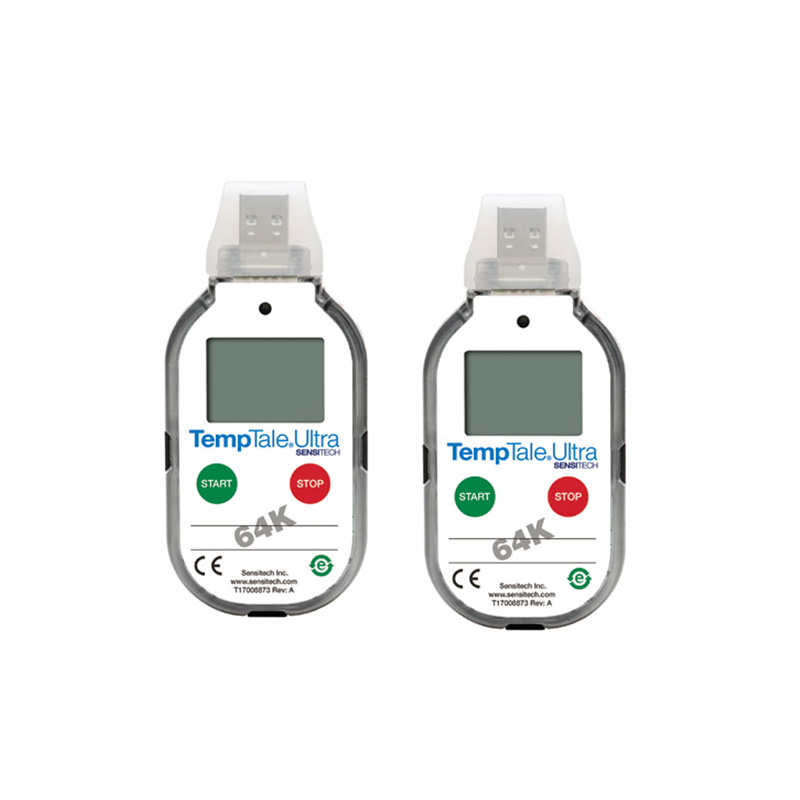

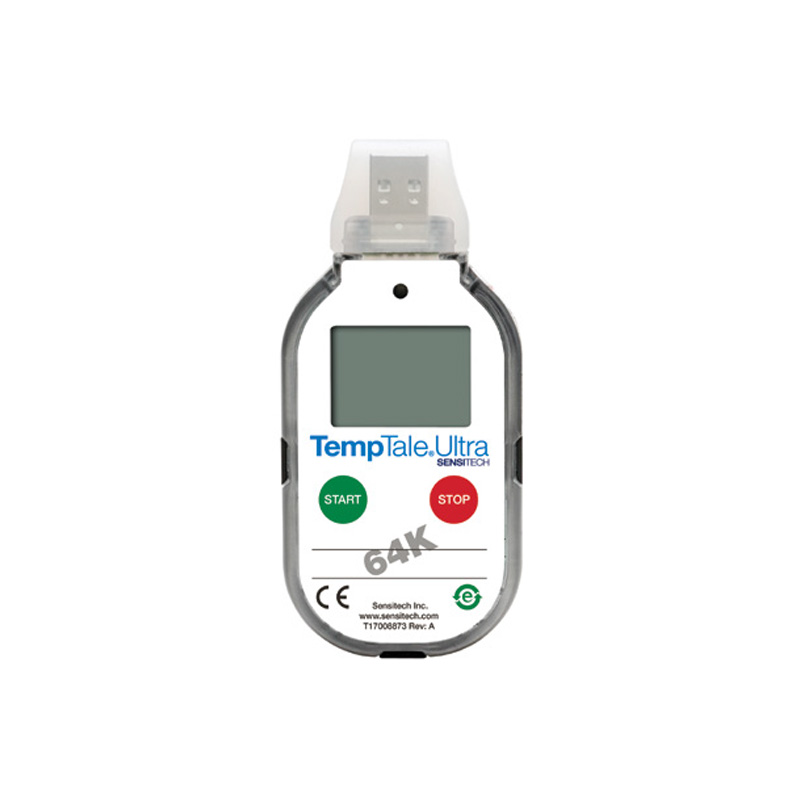

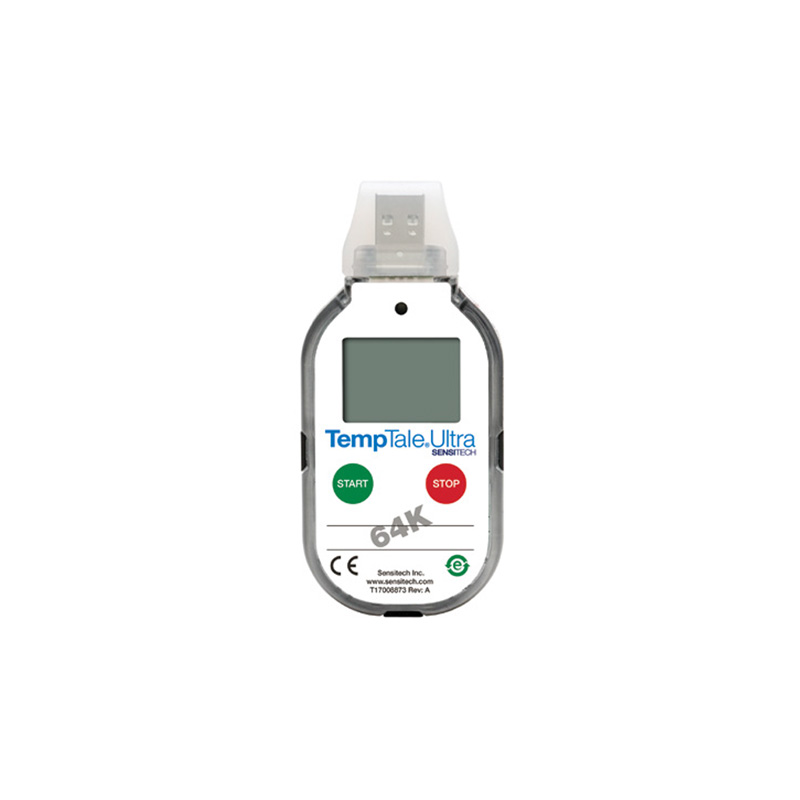

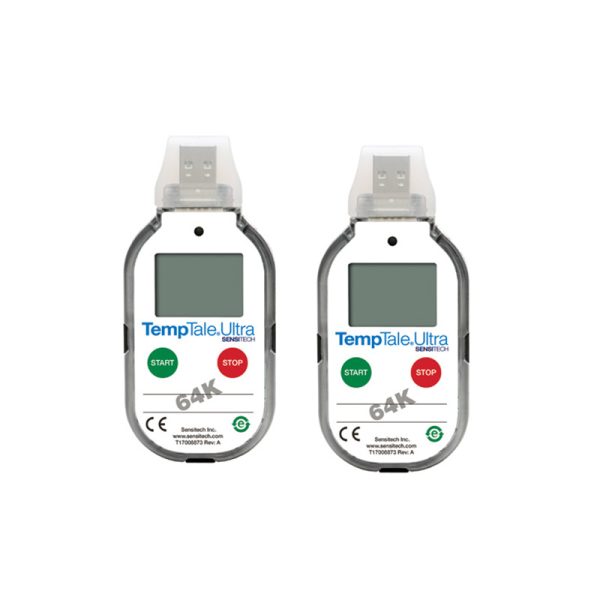

SENSITECH TempTale® Ultra 64K – TUB00-01 – single use
$2,034.00
•The ideal solution for long sea voyages that require frequent temperature sampling
• Extended memory capacity supports two-minute interval temperature sampling for up to 88 days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Key TempTale Ultra 64K Features
• The expanded 64,000 data points of data storage capacity allows for extended stationary temperature monitoring of remote sites, as well as temperature measurements every two minutes for lengthy ocean shipments; i.e., ocean imports and exports to and from China.
• Contains a 3.6v coin cell battery, requiring no Lithium Handling Label, as specified in International Maritime Dangerous Goods Codes (IMDG) Special Provision 188.1 and IATA DG current edition
• Large LCD screen with clear indication of alarm status and trip visibility
• Automatic generation of secure PDF reports, configurable to support local time zones and five languages for receiving sites, including Simplified Chinese
• Up to six programmable alarms, including MKT and Trip Duration
• Quick file generation of both the raw data and PDF files increasing receiver efficiency
• USB interface enables direct download to software
• Write Protected USB flash drive for virus protection
• Three-point NIST® traceable Certificate of Calibration
SENSITECH-TempTale® Ultra 64K-datasheet.pdf
Additional information
| Brand | SENSITECH |
|---|---|
| Model | TempTale® Ultra 64K |
| Monitoring Recording Options | Single Use, Single-Use with User Programmable Overwrite, or Multiple Use |
| Temperature Measurement Range | -30°C to + 70°C |
| Temperature Accuracy Range | ± 1.0°C from -30°C to -10°C |
| Temperature Resolution | 0.1°C/F over full temperature measurement range |
| Data Memory Type | Non-volatile 64K Flash memory |
| Data Storage Capacity | 64,000 data points (64K) |
| Battery Life / Type | 12 months operating life / 3.6v coin cell lithium battery – non-replaceable |
| Data Sampling Interval | Programmable from 30 seconds up to a maximum of 120 minutes |
| Water Resistant Housing | IP64 (with protective cap over USB connector |
| Start Up Delay | 0 minutes to 24 hours |
| Programmable Alarms | • Programmable high and low limits – alarm is triggered when temperature exceeds set limits; |
| Alarm Delay Time Thresholds | Single event (continuous) or cumulative |
| LCD Indicators | Started, start-up delay, running, stopped; Alarm status: OK (), Alarmed (); |
| Start Up Options | Manual push button or automatic launch option |
| Dimensions | 108mm L x 50.2mm W x 15.2mm H |
| Weight | 60g (2.1 oz) |
| Quality Assurance Certifications | CE, UKCA, RTCA – D016ØG compliant, RoHS compliant, Response time tested to U.S. Pharmacopeia (USP) <1118> and EN 12830 |
| Minimum System Requirements | Windows® PC w/ Windows® 7 or higher; Adobe® Reader 9.0 or higher |
| Data Analysis and Cold Chain Continuous Improvement Software | TempTale Manager® Desktop 8.2 or higher; ColdStream® Cold Chain Manager 1.8A or higher |
| Computer Interface | USB 2.0, A-type plug |
| Ship air, ground, ocean in accordance with – | IATA Dangerous Good Regulations; UN 3091, Packing Instruction 970 Section II – Excepted Lithium Metal and Lithium Alloy Cells and |
| Number | 100Pcs, 20Pcs, 50Pcs |
