MADGETECH – THERMOVAULT MAX EXTREME TEMPERATURE THERMAL BARRIER
Extreme Temperature Thermal Barrier for HiTemp140 Data Loggers.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

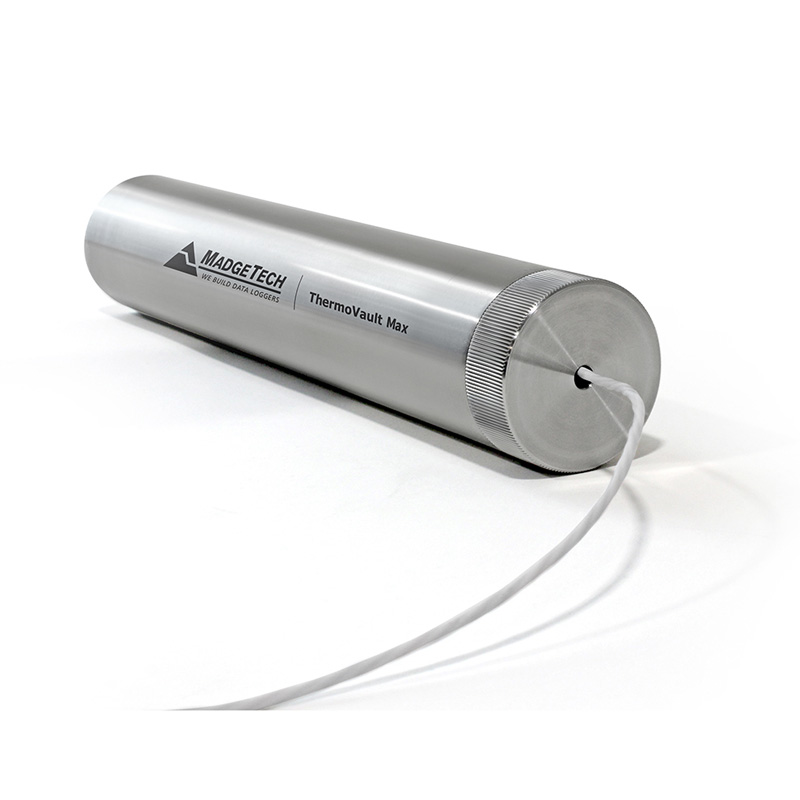

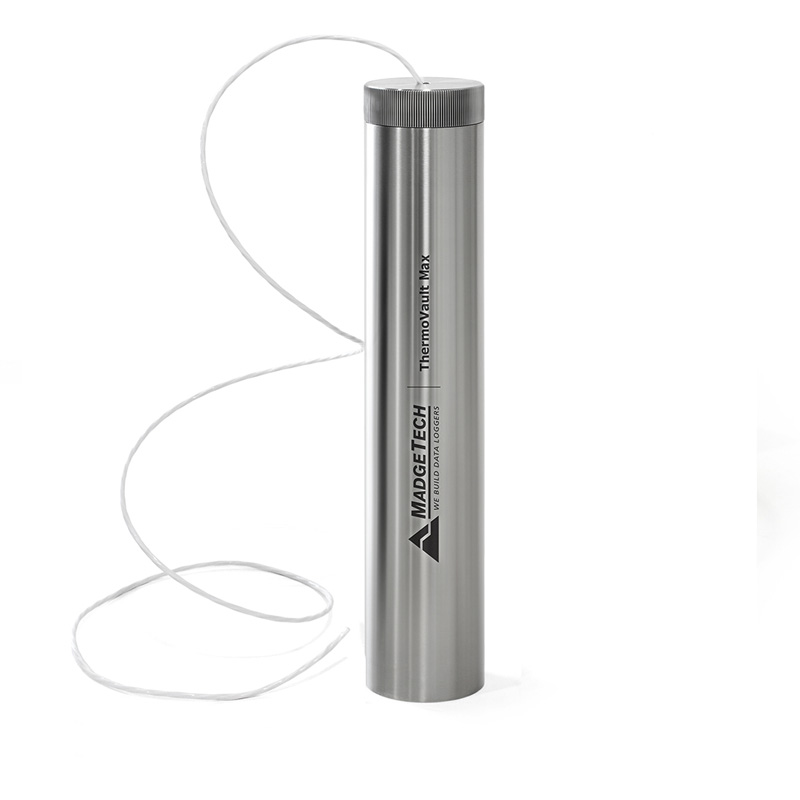

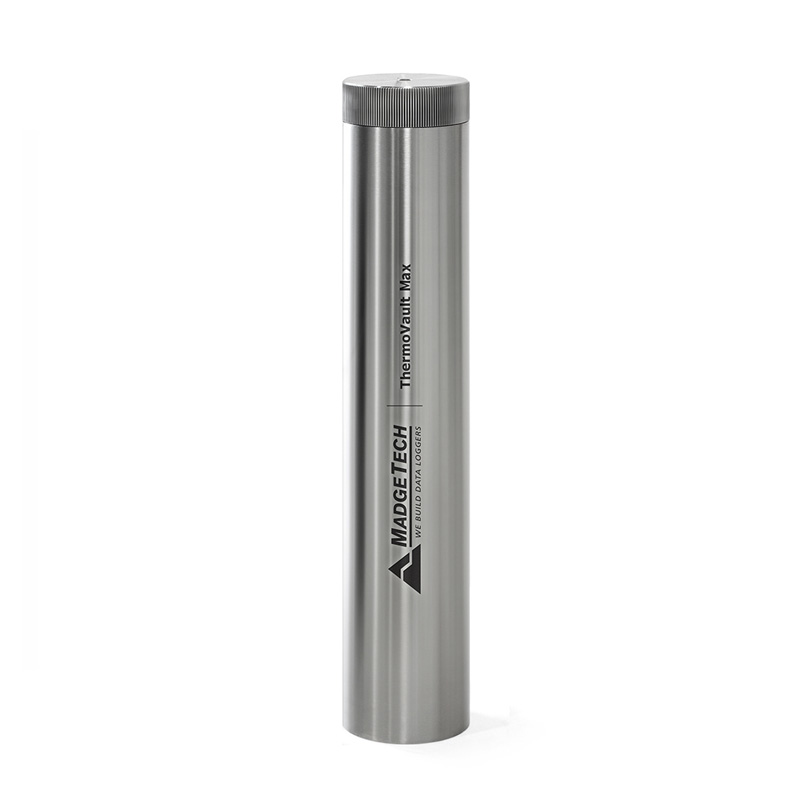

The ThermoVault Max is an extreme, high temperature thermal barrier designed for use with MadgeTech’s HiTemp140-M12, HiTemp140-FP and HiTemp140-PT data logger models. This durable enclosure is made from stainless steel with PTFE insulation. The ThermoVault Max barrier can withstand temperatures up to +400 °C in dry heat applications and +250 °C for wet applications when used with the TMAX Wet Seal Kit (sold separately).
With unparalleled time versus temperature performance, the ThermoVault Max provides a best-in-class solution for the harshest of applications. Designed to endure extreme temperature monitoring environments such as furnace profiling, geothermal down-hole recording, dry heat sterilization and oven data logging.
MadgeTech also offers a Dry Heat Sterilization Kit including the ThermoVault Max barrier, HiTemp140-M12 Data Logger and M12 Depyrogenation probe.
The ThermoVault Max is built for use in harsh applications that require extreme temperature monitoring, such as depyrogenation, food processing, oven monitoring, geothermal down-hole recording, and furnace profiling.
MADGETECH-ThermoVault Max Product User Guide.pdf
MADGETECH-ThermoVault Max Specification Sheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | THERMOVAULT MAX EXTREME TEMPERATURE THERMAL BARRIER |
| Material | 316 Stainless Steel, PTFE, Silicone |
| Dimensions | 1.75 in OD x 9.6 in L (44.45 mm OD x 243.8 mm L) |
| IP Rating | IP68 rating may be obtained with seal kit installed from -60 ºC to 250 ºC. Rapid temperature fluctations may cause ingress. |
