MADGETECH- Series includes 4, 8, 12, and 16-channel thermocouple-based temperature data loggers. TCTEMPX
Key Features:
-
- Accepts a Variety of Thermocouples
- Large Memory Capacity
- Individual Cold Junction Compensation
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

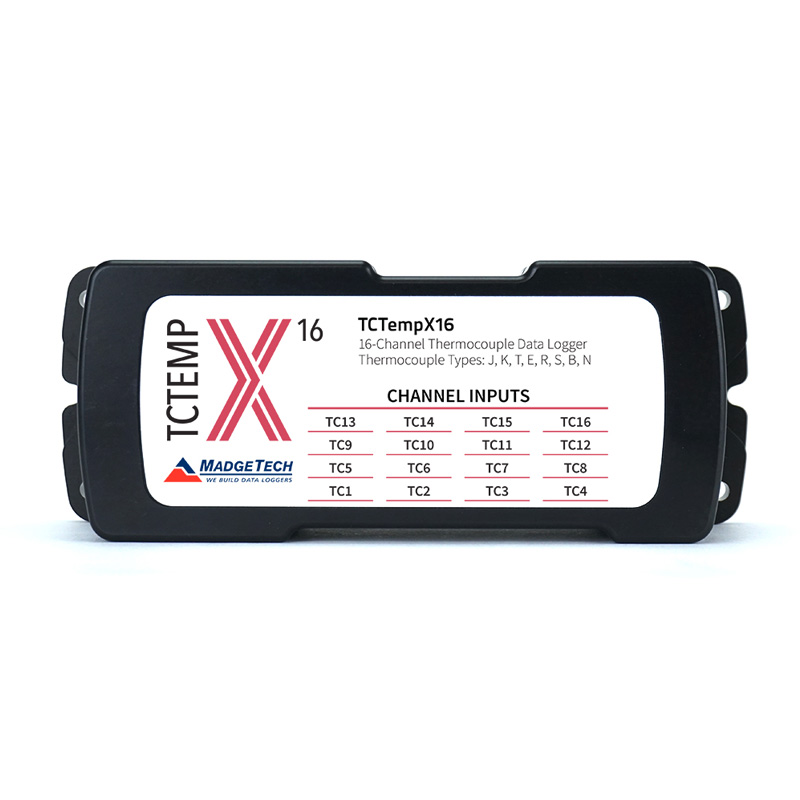

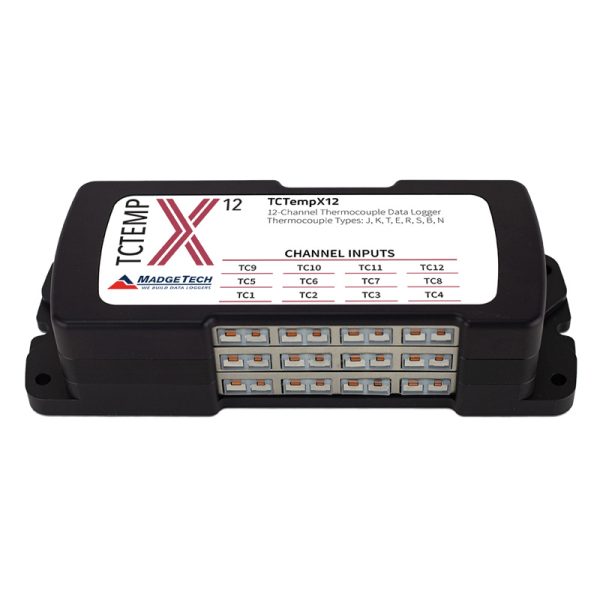

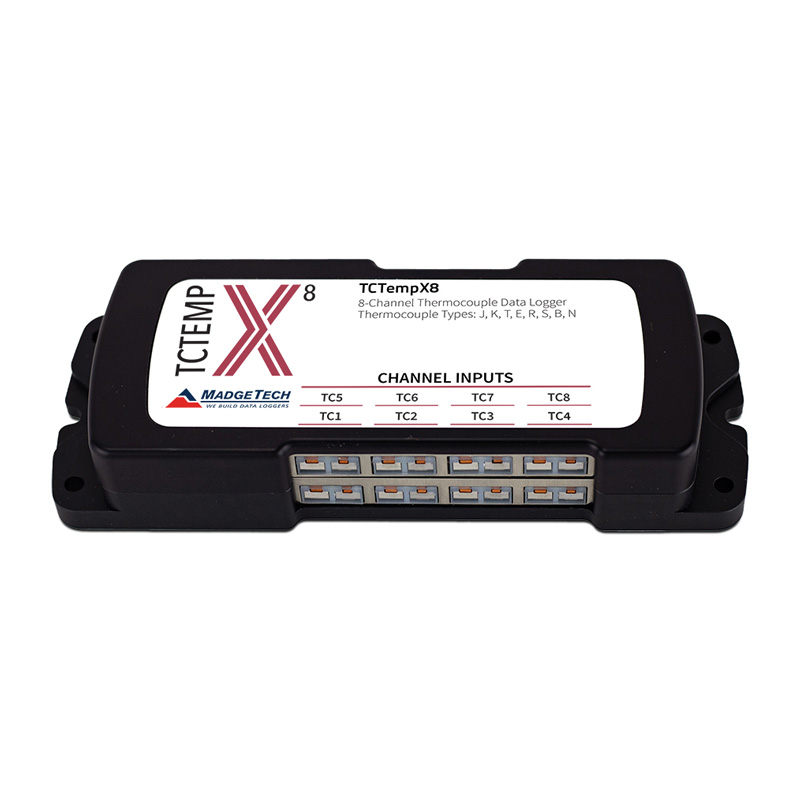

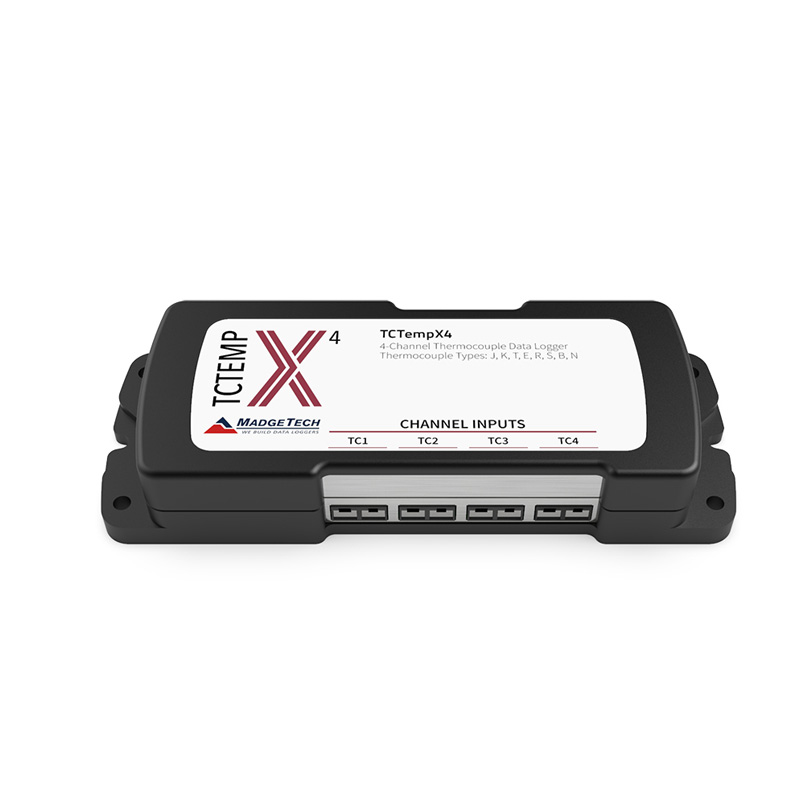

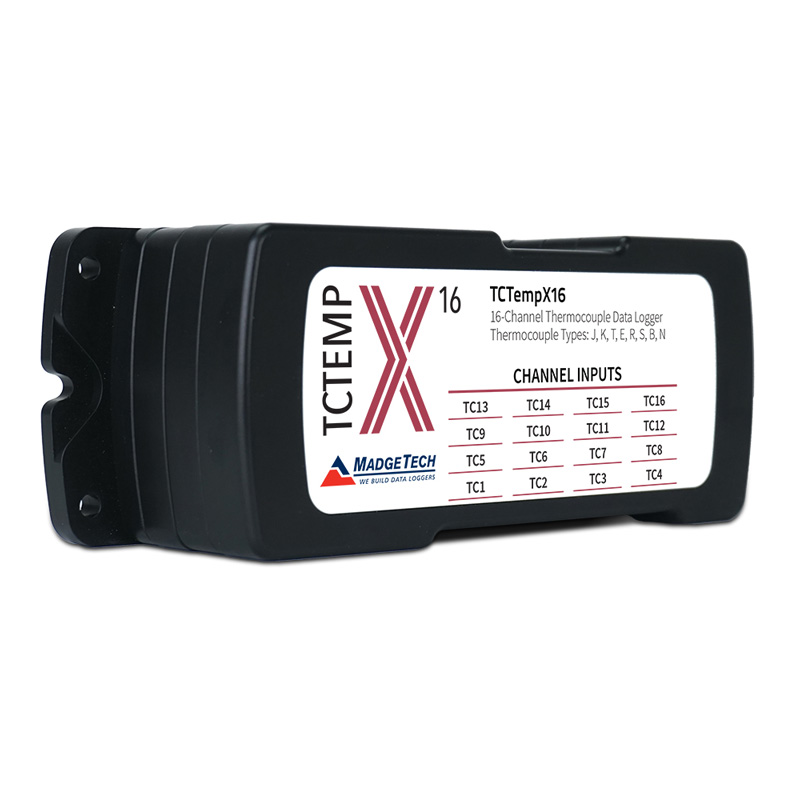

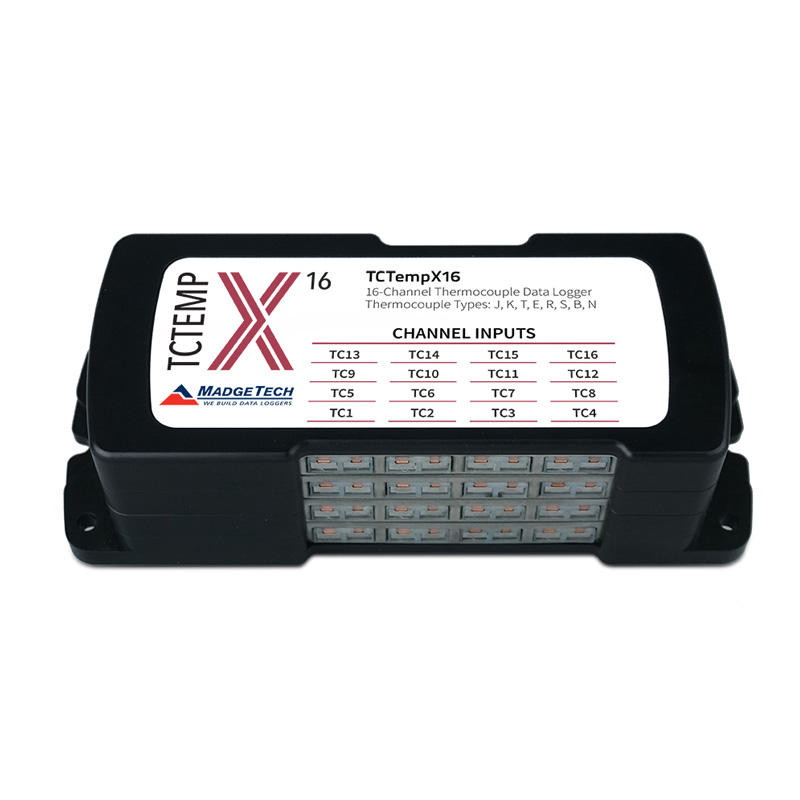

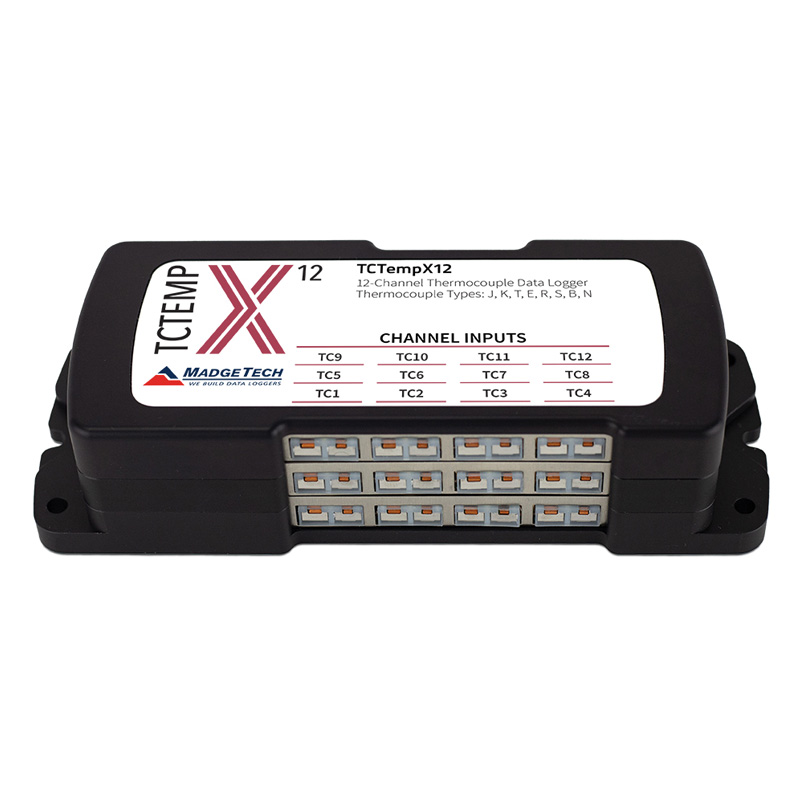

The TCTempX Series includes the TCTempX4, TCTempX8, TCTempX12 and TCTempX16 thermocouple-based temperature data loggers with a reading rate of up to 4 Hz, ideal for a variety of applications, whether it is remote temperature monitoring or multiple points in a central location.
In addition to having a large memory capacity, the TCTempX allows users to disable channels to further maximize memory capacity. For easy identification, each channel can be named with up to a ten-digit title.
In addition, the TCTempX Series features individual cold junction compensation for each channel providing increased accuracy and response time, and if a probe is removed or severed during logging, the software automatically annotates the data.
The TCTempX Series is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MADGETECH-TCTempX Specification Sheet.pdf
MADGETECH-TCTempX Product User Guide.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | TCTEMPX |
| Memory | 4-channel: 524,032 readings |
| Reading Rate | 4 Hz up to 1 reading every 24 hours |
| Cold Junction Compensation | Automatic, based on internal channel |
| Channels | 4, 8, 12, 16 |
| Battery Life | 18 months typical |
| Material | Black anodized aluminum |
| Dimensions | 4-channel: 2.70 in x 7.25 in x 1.22 in |
| Operating Environment | -20 ºC to +60 ºC (-4 ºF to +140 ºF), |
| Approvals | CE |
| Temperature | / |
| Internal Channel Temperature Resolution | 0.01 °C (0.018 °F) |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B, N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
