MADGETECH Series includes 4, 8, 12, and 16-channel RTD-based temperature data loggers. RTDTEMPX
Key Features:
- Accepts 2, 3 and 4-Wire RTDs
- Large Memory Capacity
- Measures Temperatures from -200 °C to +850 °C
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

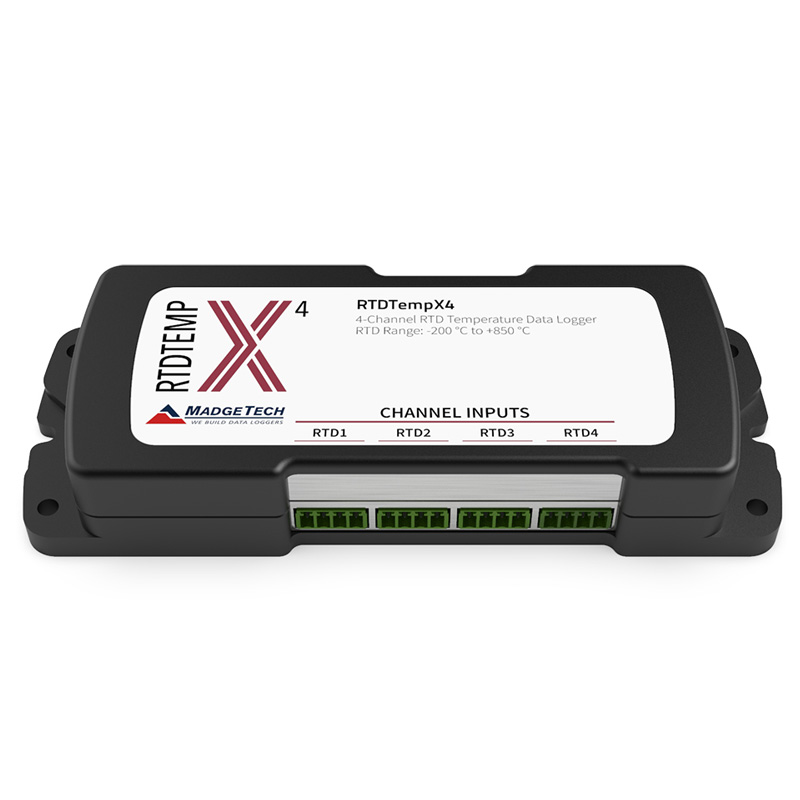

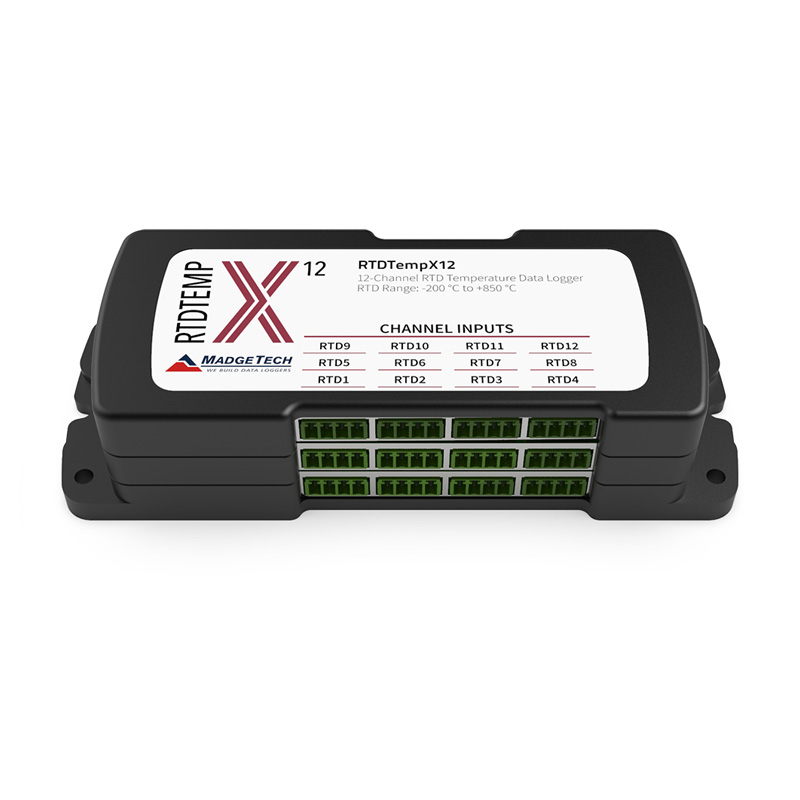

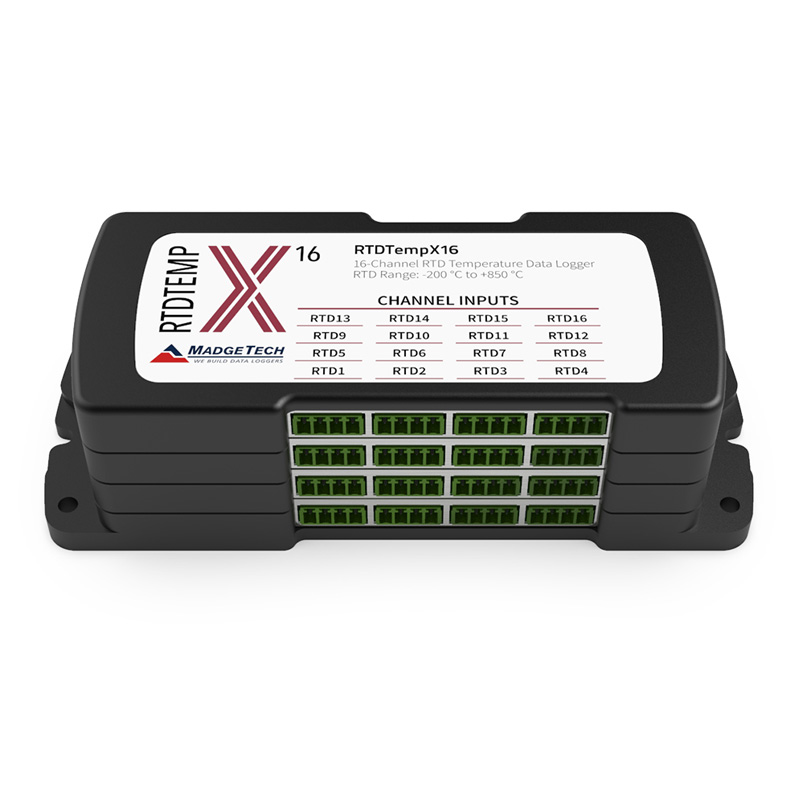

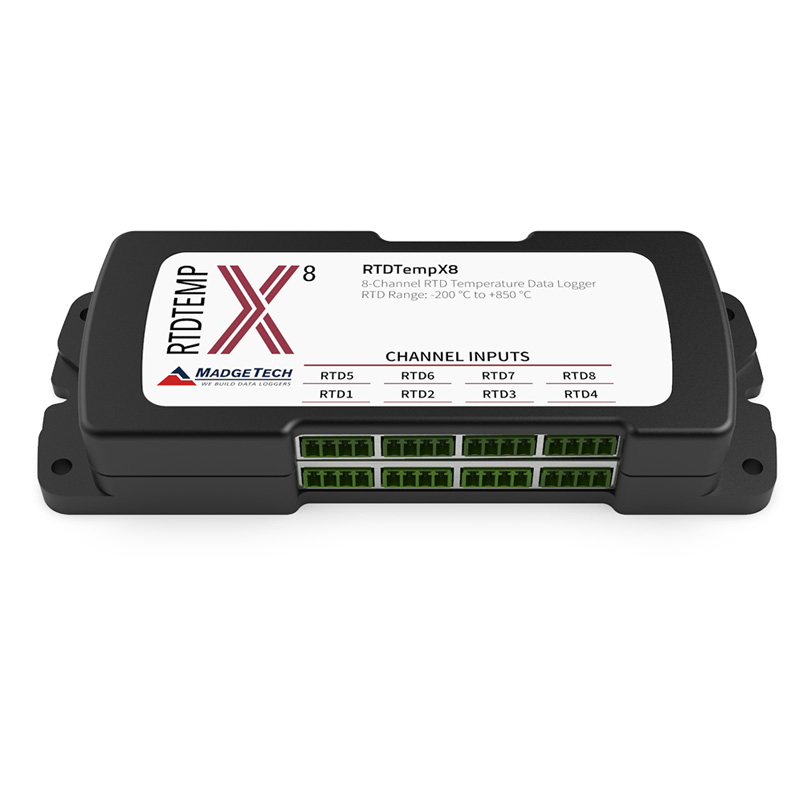

The RTDTempX Series includes the RTDTempX4, RTDTempX8, RTDTempX12 and RTDTempX16 RTD-based temperature data loggers. This series accepts 2, 3 and 4-wire RTDs to measure and record temperatures from -200 ºC to +850 ºC (-328 ºF to +1562 ºF) with a calibration accuracy of ±0.04 °C (±0.072 °F), all probe dependent.
In addition to having a large memory capacity, users can enable or disable channels to further maximize memory. There’s no interface necessary, the RTDTempX Series uses standard USB-A to Micro USB cable.
The RTDTempX Series is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MADGETECH RTDTempX Product User Guide.pdf
MADGETECH RTDTempX Specification Sheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | RTDTEMPX |
| Memory | 4-channel: 698,709 readings |
| Reading Rate | 4 Hz up to 1 reading every 24 hours |
| Channels | 4, 8, 12, 16 |
| Battery Life | 18 Months |
| Material | Black anodized aluminum |
| Dimensions | 4-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm) |
| Operating Environment | -20 ºC to +60 ºC (-4 ºF to +140 ºF),0 %RH to 95 %RH non-condensing |
| Temperature | / |
| Temperature Sensor | External: 2,3, or 4 wire RTD |
| Temperature Range | 18.5 Ω to 390.5 Ω |
| Temperature Resolution | 0.0001 |
| Temperature Calibrated Accuracy | ±0.04 °C (±0.072 °F) (Probe Dependent) |
