MADGETECH Series includes 4, 8, 12 and 16-channel low-level DC current data loggers. CurrentX
Key Features:
- Available in 3 Ranges
- Large Memory Capacity
- Accepts Signals from Common Voltage Sources
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

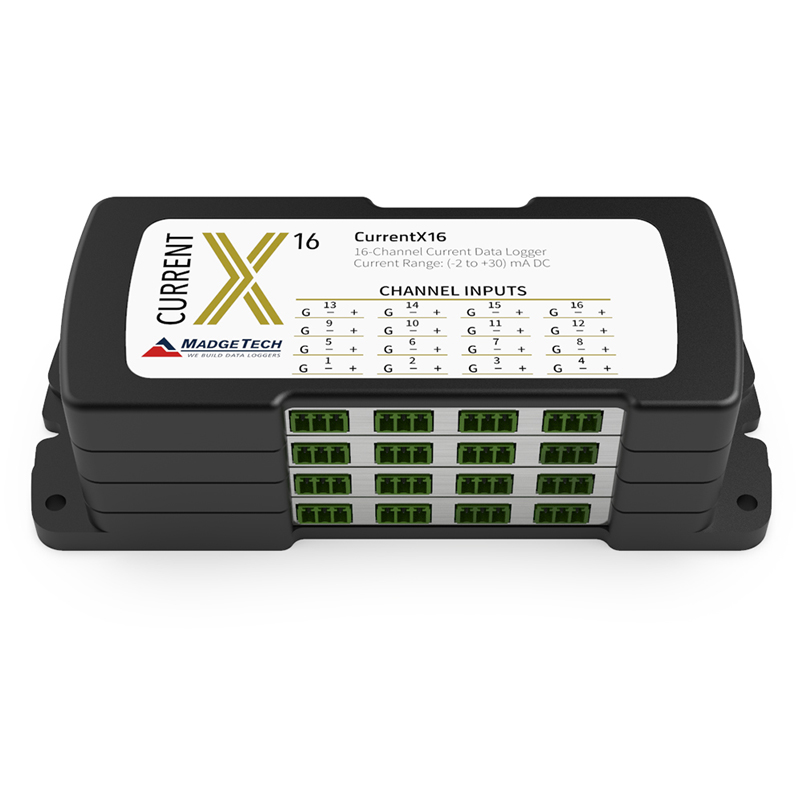

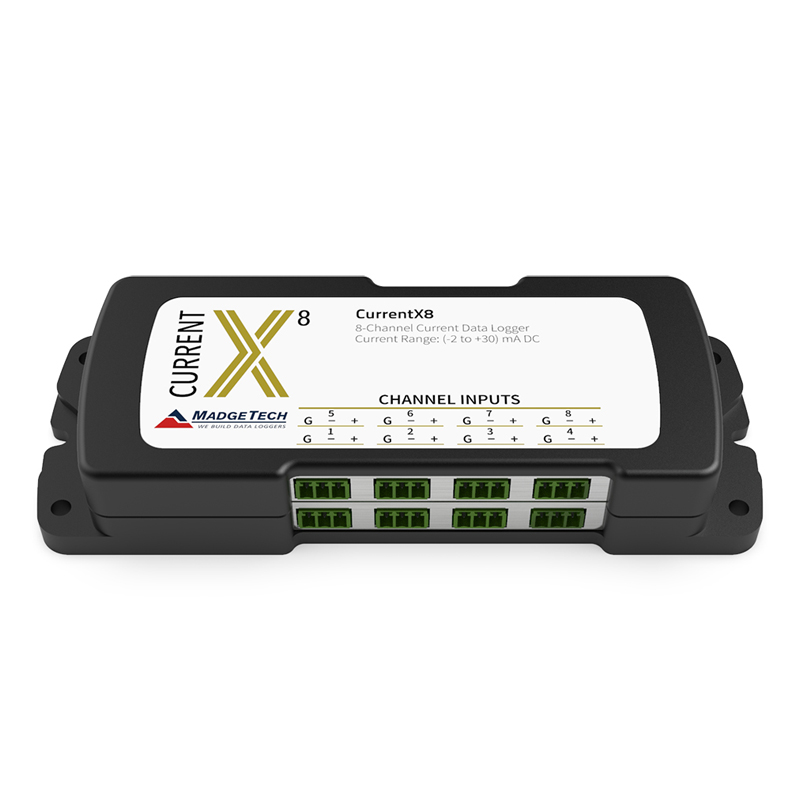

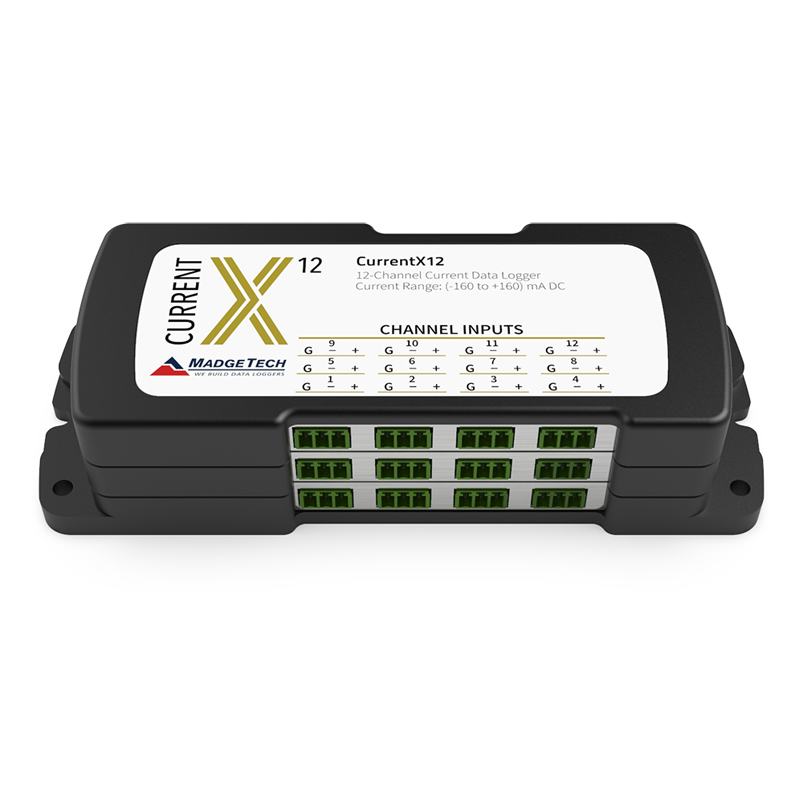

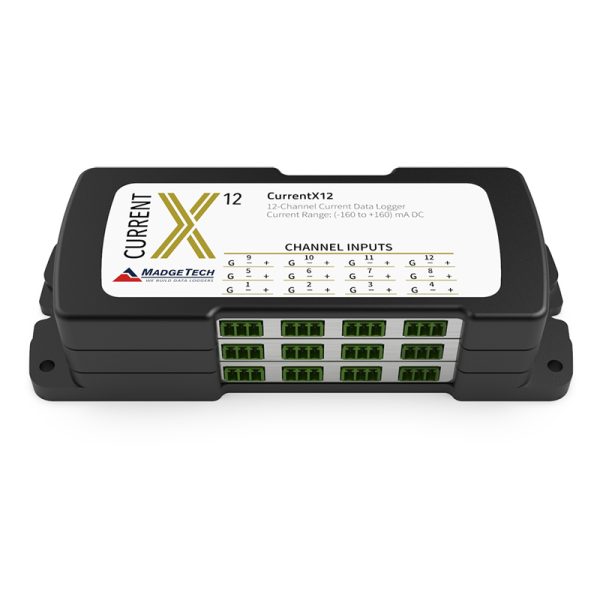

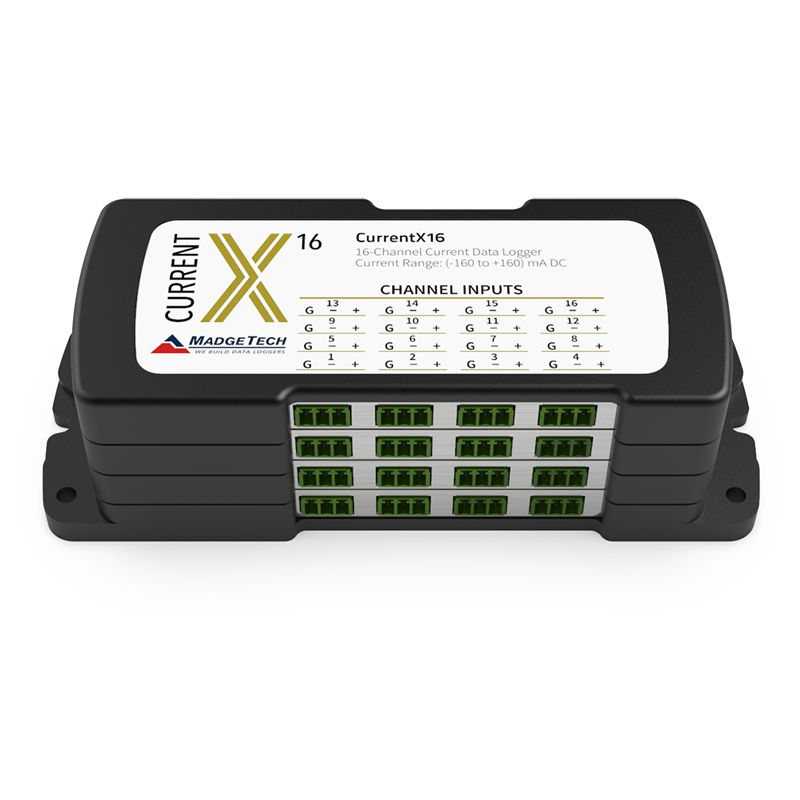

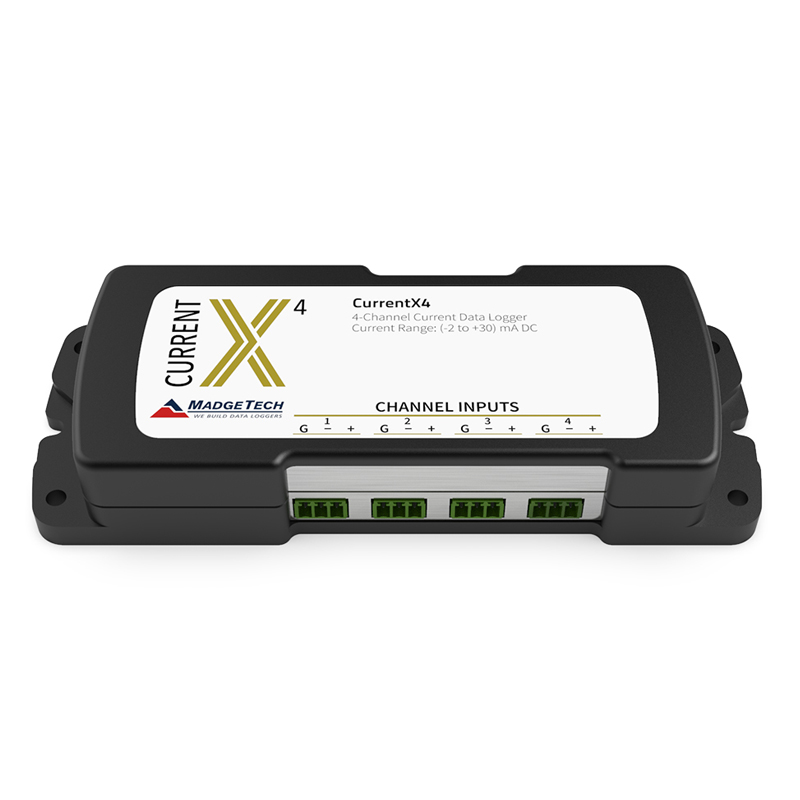

The CurrentX Series includes the CurrentX4, CurrentX8, CurrentX12 and CurrentX16 low-level DC current data loggers and are available in three ranges: 30 mA, 160 mA, and 3 A.
In addition to having a large memory capacity, the CurrentX4 gives users the option to enable or disable channels to further maximize memory capacity. There’s no interface necessary, the CurrentX Series uses standard USB-A to Micro USB cable.
Using the MadgeTech Software, starting, stopping and downloading from the CurrentX Series data loggers are simple and easy. Graphical, tabular and statistical data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.
MADGETECH-CurrentX Product User Guide.pdf
MADGETECH-CURRENTX-datasheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | CURRENTX |
| Memory | 4-channel: 1,048,064 readings |
| Reading Rate | 4 Hz to 1 reading every 24 hours |
| Channels | 4, 8, 12, 16 |
| LED Indicators | 1 per channel and 2 status LEDs |
| Battery Life | 18 months |
| Material | Black anodized aluminum |
| Dimensions | 4-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm) |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
| Current | / |
| Current Range | -2 mA to +30 mA, ±160 mA, ±3 A |
| Max Voltage: Inputs & Ground | 3 V |
| Current Resolution | 30mA: 0.0005 mA |
| Current Calibrate Accuracy | 30mA: ±0.016 mA |
| Current Input Impedance | 30mA: 10 Ω |
