MADGETECH Series includes 4, 8, 12, and 16-channel DC voltage data loggers. VOLTX
Key Features:
- Available in 3 Measurement Ranges
- Memory Large Memory Capacity
- Accepts Signals from Common Voltage Sources
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

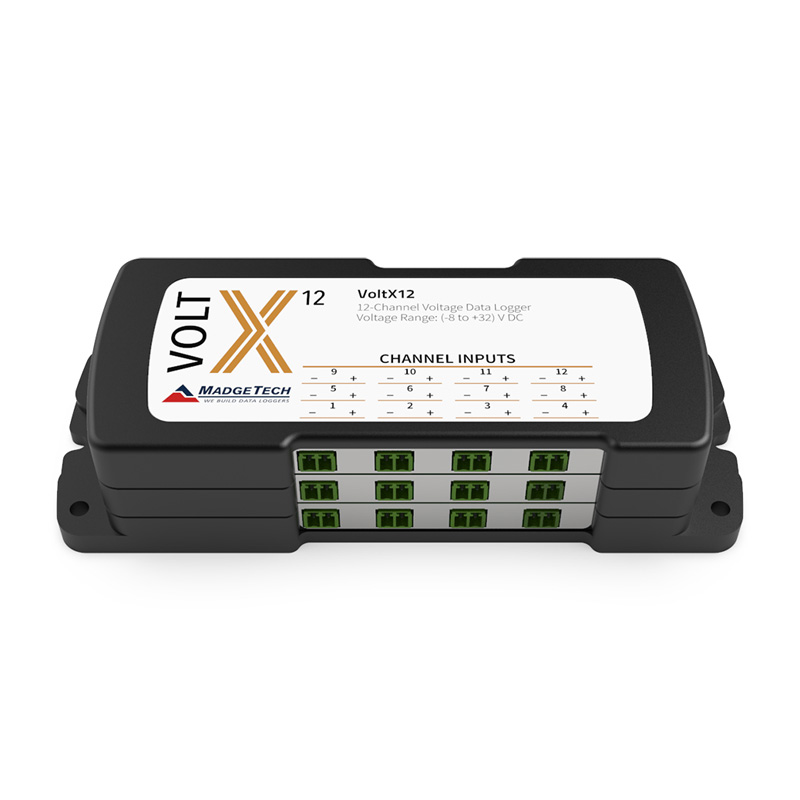

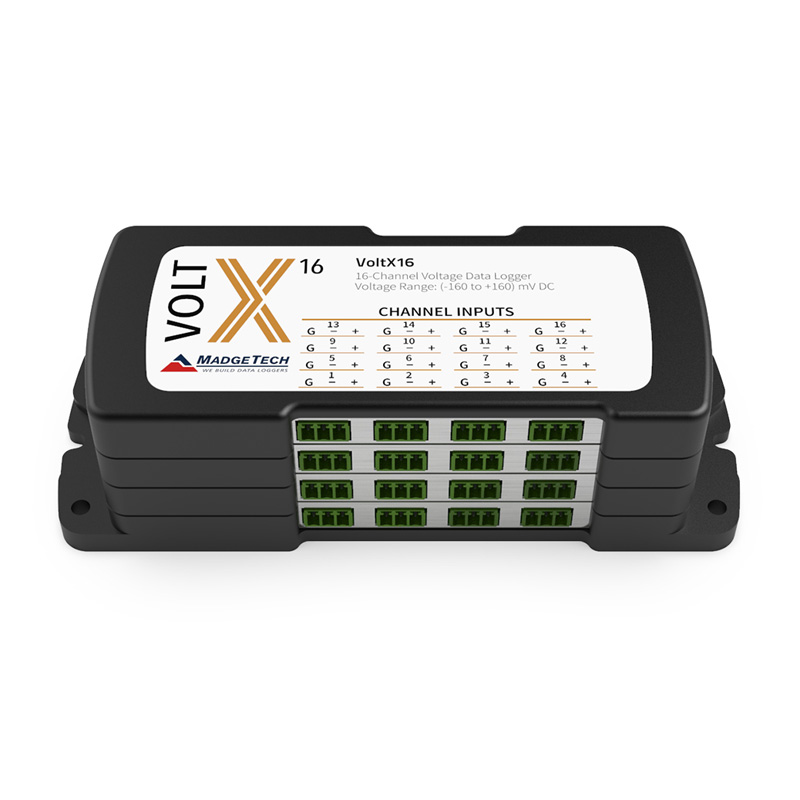

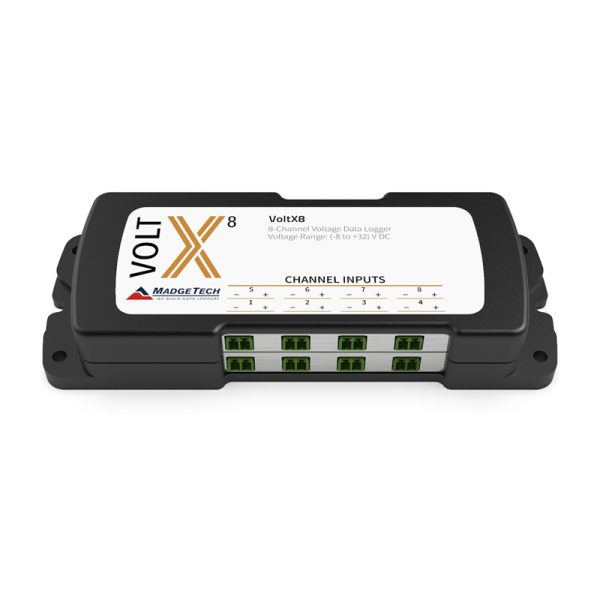

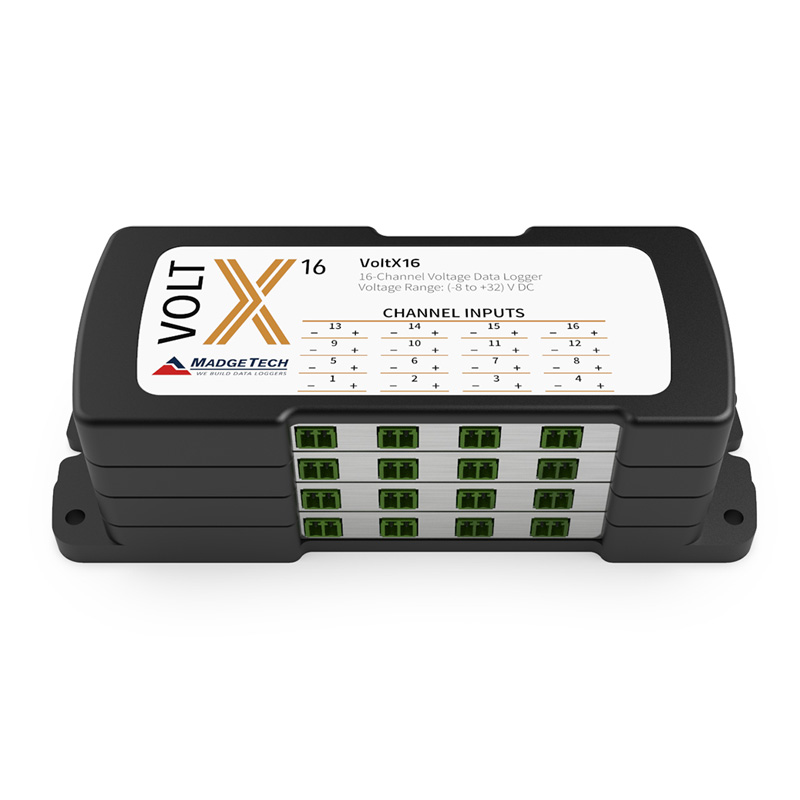

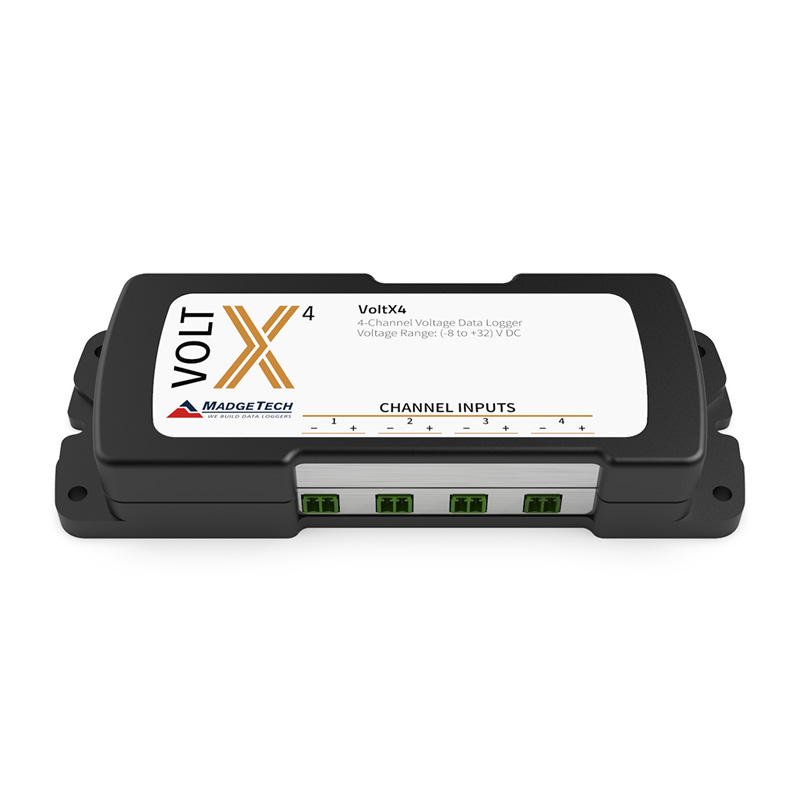

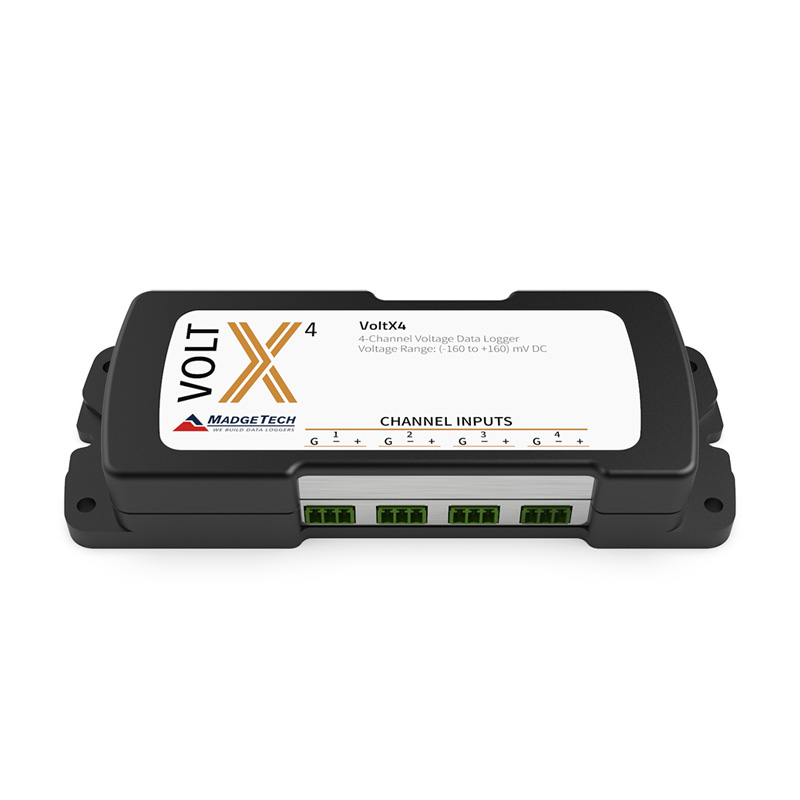

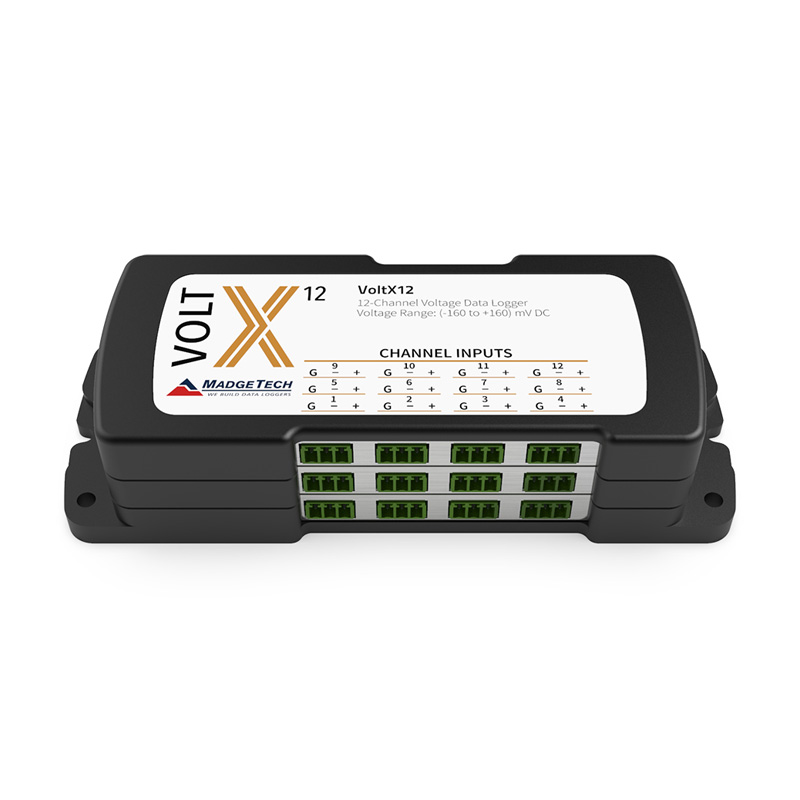

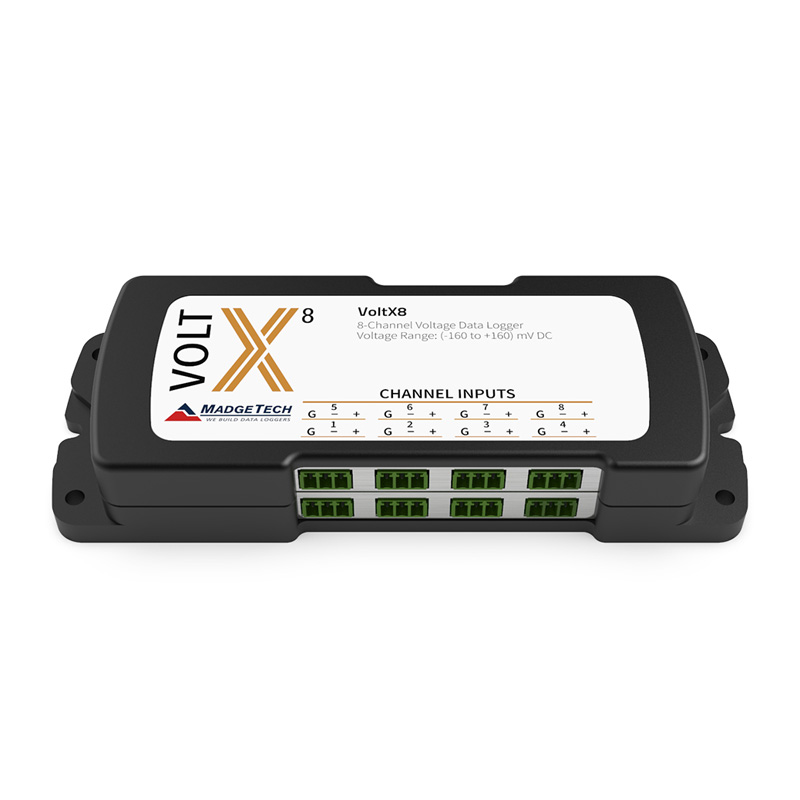

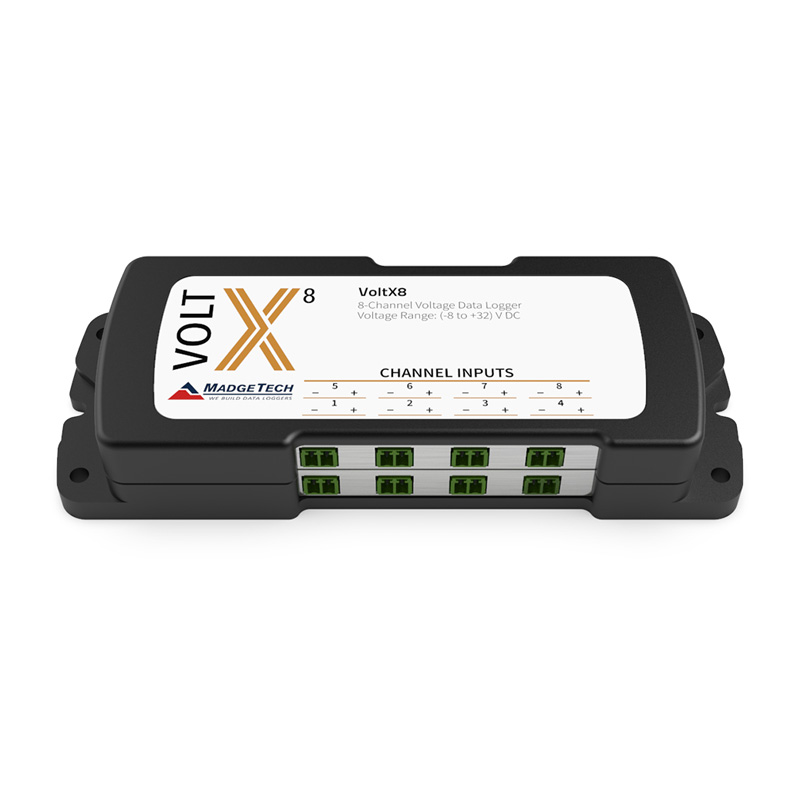

The VoltX Series includes the VoltX4, VoltX8, VoltX12, and VoltX16 DC voltage data loggers and are available in three voltage ranges: 160 mV, 3.2 V, and 32 V.
The VoltX Series accepts voltage signals from sensors, transducers and many other common voltage sources. In addition to a large storage capacity, users have the option to enable or disable channels to maximize memory capacity. There’s no interface necessary, the VoltX Series uses standard USB-A to Micro USB cable.
Using the MadgeTech Software, starting, stopping and downloading from the VoltX Series data loggers are simple and easy. Graphical, tabular and statistical data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.
MADGETECH-VoltX Product User Guide.pdf
MADGETECH-VoltX Specification Sheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | VOLTX |
| Memory | 4-channel: 698,709 readings |
| Reading Rate | 4 Hz up to 1 reading every 24 hours |
| Channels | 4, 8, 12, 16 |
| LEDs | 1 per channel and 2 status LEDs |
| Battery Life | 18 months |
| Material | Black anodized aluminum |
| Dimensions | 4-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm) |
| Operating Environment | -20 ºC to +60 ºC (-4 ºF to +140 ºF),0 %RH to 95 %RH non-condensing |
| Voltage | / |
| Voltage Range | ±160 mV, ±3.2 V, -8 V to +32 V |
| Voltage Resolution | 160 mV: 0.02 mV |
| Voltage Calibrated Accuracy | 160 mV: ±0.032 mV |
