MADGETECH RFCurrent2000A is a wireless DC current data logger. Includes standard calibration certificate.
Key Features:
- Digital Display
- Continuous Monitoring
- Available in 3 Measurement Ranges
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The RFCurrent2000A is a wireless DC current data logger available in three ranges: 20 mA, ±160 mA and ±3 A. The data logger can connect directly to low-level DC current sources and can also be interfaced with a wide range of current output sensors such as flow meters, pH transmitters and more.

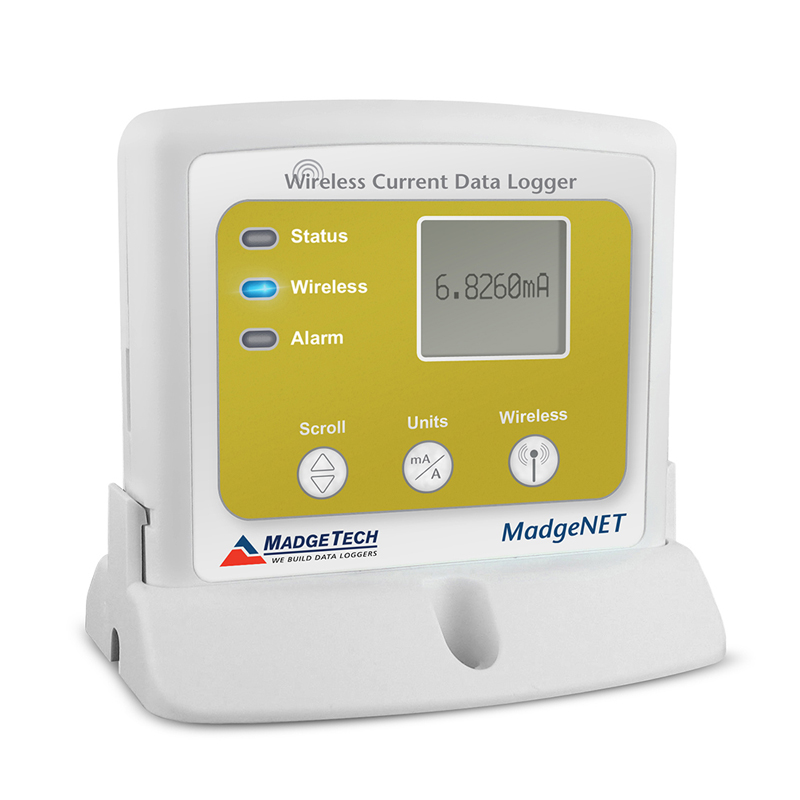

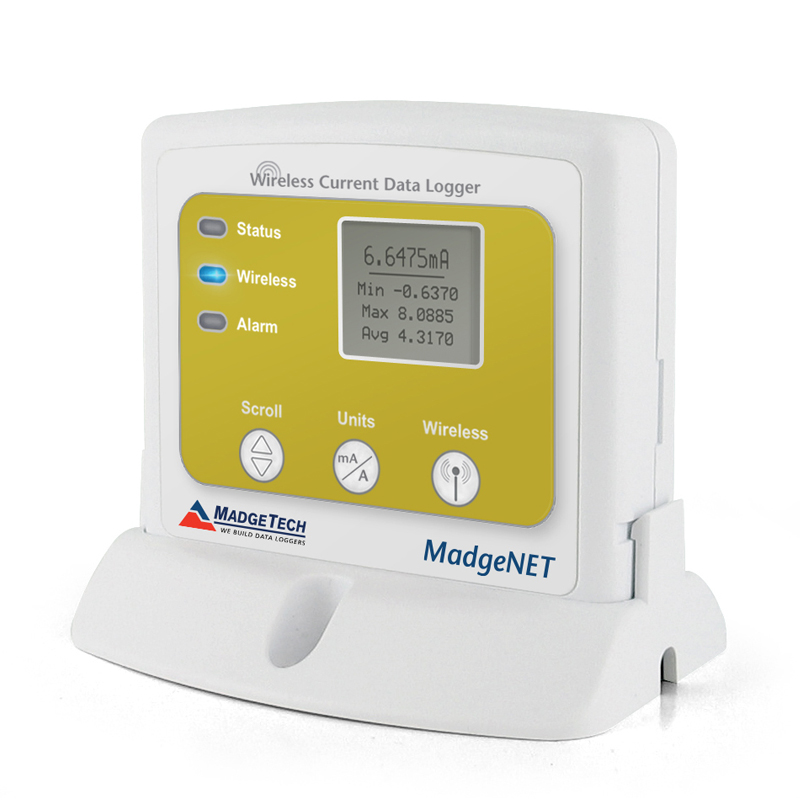

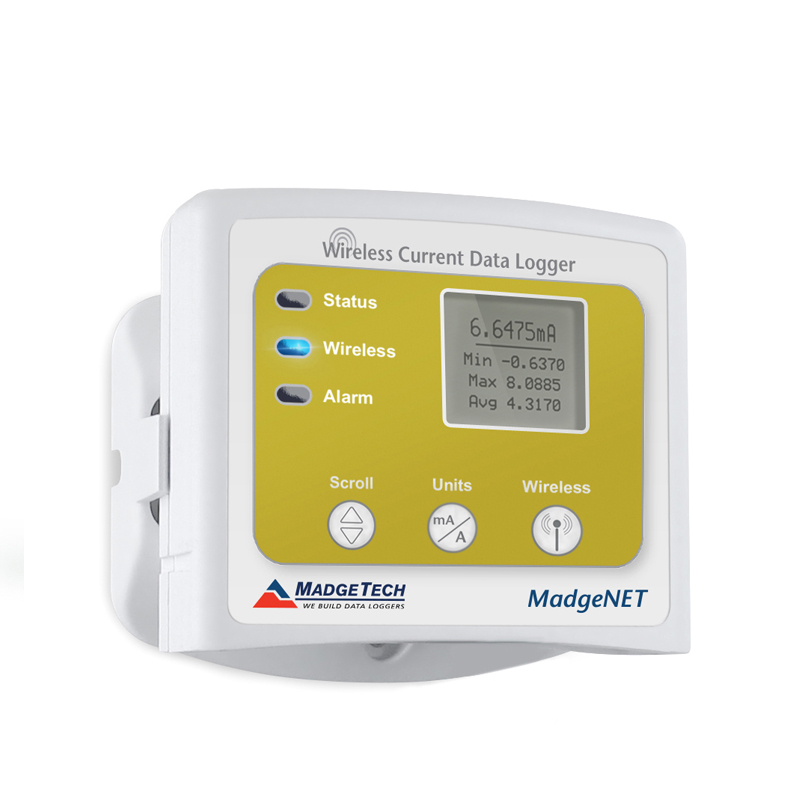

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFCurrent2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.
The RFCurrent2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
The RFCurrent2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor real-time data remotely on any internet enabled device, from anywhere in the world.
Note: RFC wireless interface required.
MADGETECH-RFCurrent2000A Product User Guide.pdf
MADGETECH-RFCurrent2000A Specification Sheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | RFCURRENT2000A |
| Memory | 32,256 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| Channels | 1 |
| LED Indicators | Green, Blue & Red |
| Battery Life | 4 years typical at a 15 minute reading rate |
| Material | ABS plastic |
| Dimensions | 20 mA & 3 A: 3.19 in x 3.5 in x 0.95 in (80.9 mm x 88.9 mm x 24.1 mm) – Data logger only |
| IP Rating | IP22 |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | RFC1000 (wireless); USB to Mini USB Cable |
| Approvals | US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
| Current | / |
| Current Range | 20 mA: -2 mA to 30 mA |
| Max Voltage: Inputs & Ground | 0 to 3 V |
| Current Resolution | 20 mA: 0.5 μA |
| Current Calibrate Accuracy | 20 mA, 160 mA: ±0.05 %FSR |
| Current Input Impedance | 20 mA: 10 Ω, ±1% |
| Wireless | / |
| RF Carrier Frequency | 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
| Output Power | +0 dBm typical |
| Receiver Sensitivity | -95 dBm typical |
| Typical outdoors Line of sight | Up to 2000 ft |
| Typical Indoors line of sight | Up to 500 ft |
