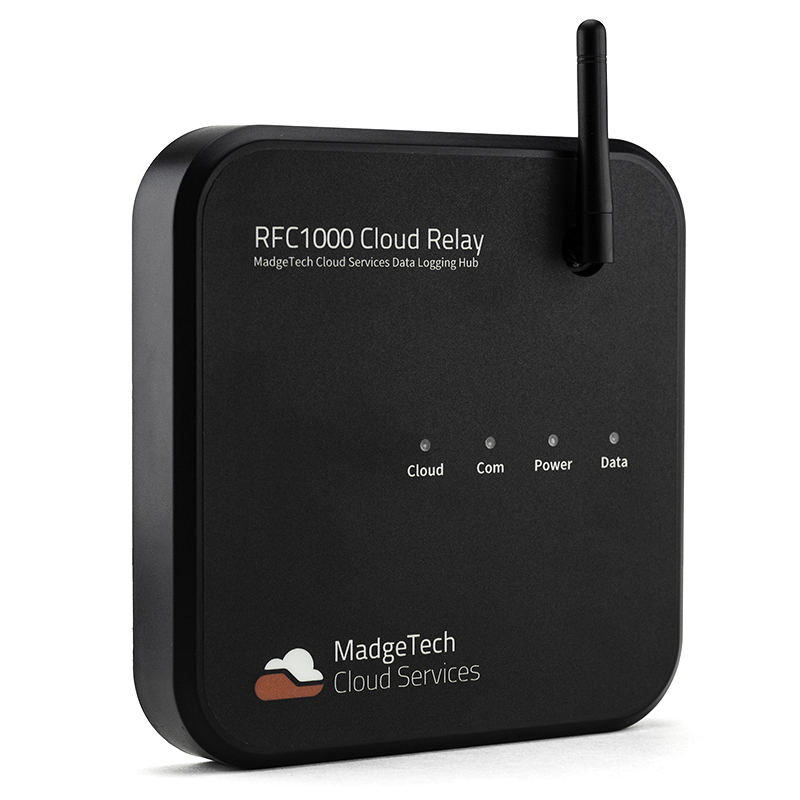

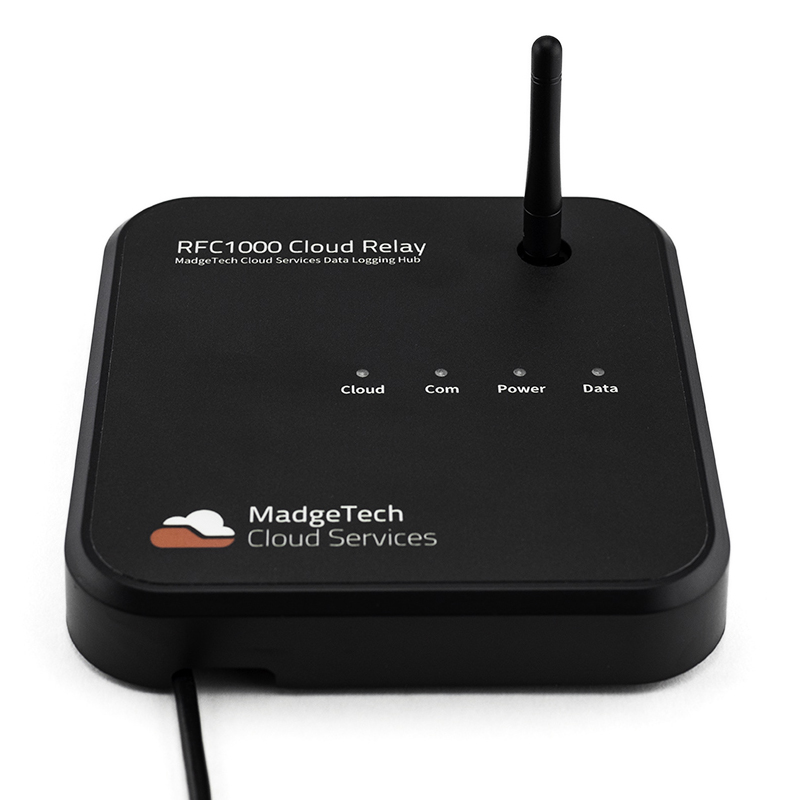

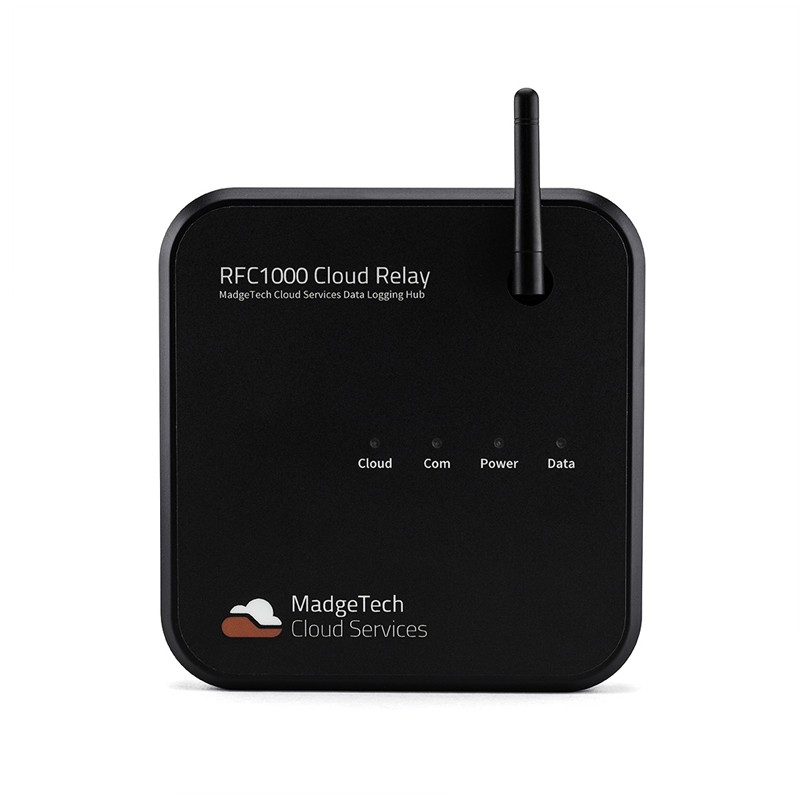

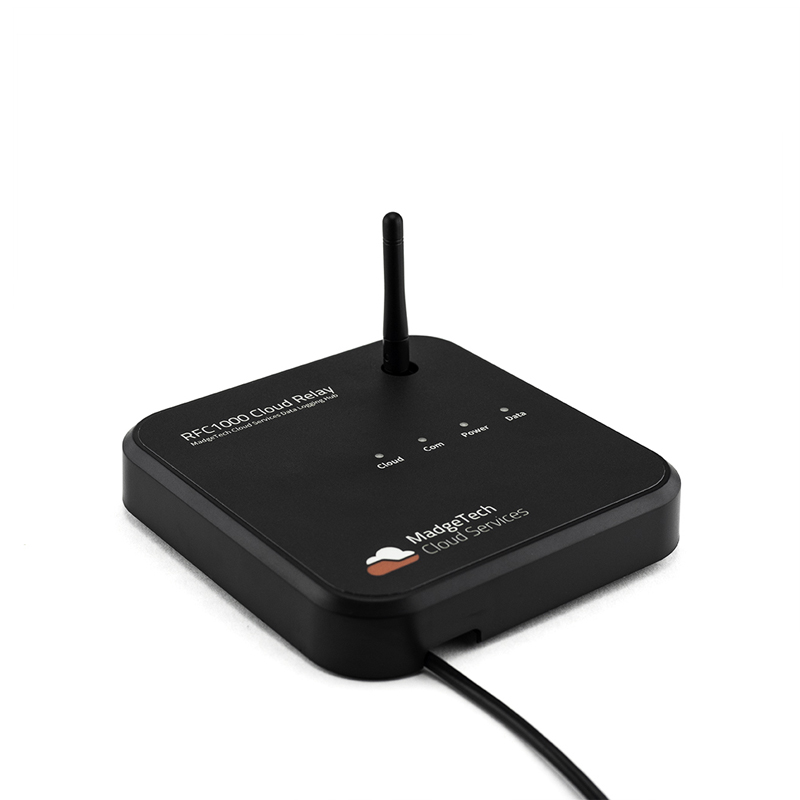

MADGETECH-RFC1000-CE CLOUD RELAY
MadgeTech Cloud Services data logging hub for use with the RFOT and RF2000A series.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The RFC1000-CE Cloud Relay is a compact, versatile device connecting MadgeTech wireless loggers directly to the cloud, eliminating the need for a central PC. With the RFC1000-CE Cloud Relay, real-time data can easily be transmitted to the MadgeTech Cloud where it can be viewed from any internet enabled device. Featuring a small pivoting antenna, which stands less than 3 inches tall, the RFC1000-CE Cloud Relay can be wall mounted or placed on any flat surface.
Connecting directly to an Ethernet port allows for cloud connectivity without the need for a computer. Each RFC1000-CE Cloud Relay can transmit data from up to 64 wireless data loggers, with no limit on the number of Cloud Relays that can be connected to a cloud account, allowing for viewing of all data from around the world. All data is stored in the cloud, with the option to download and print .CSV files for easy record keeping and further analysis.
Please see data sheet for a list of countries approved for use, purchase and distribution.
MADGETECH-RFC1000-CE Cloud Relay Specification Sheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | RFC1000-CE CLOUD RELAY |
| LED Indicators | Red, Amber & Green |
| Material | ABS Plastic (body), PVC Plastic (antenna) |
| Dimensions | Body: 6.0 in x 6.24 in x 1.15 in (152.2 mm x 158.6 mm x 29.3 mm) Antenna: 2.55 in (64.8 mm) |
| IP Rating | IP40 |
| Operating Environment | -20 °C to +85 °C, 0 to 95 %RH non-condensed |
| Approvals | FCC ID:OA3MRF24J40MC, IC#: 7693A-24J40MC |
| Wireless | / |
| RF Carrier Frequency | 2.405 GHz – 2.475 GHz |
| Typical outdoors Line of sight | To RFC1000: 2500 ft max. / To Data Logger: 2000 ft max. |
| Typical Indoors line of sight | To RFC1000: 700 ft max. / To Data Logger: 500 ft max. |
