MADGETECH-LYOTEMP is an ultra-low temperature data logger that can record temperatures as low as -60 °C (-76 °F).
Key Features:
- Compact Size
- Configurable Alarms & Warnings
- Hermetically Sealed Temperature Sensor
Availability: 5-7 Business Days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

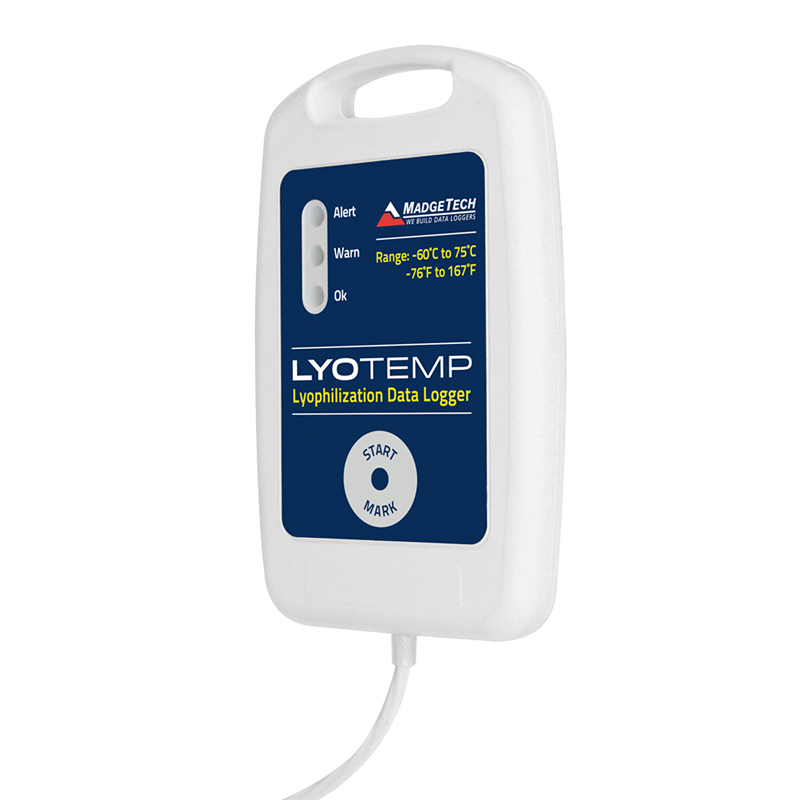

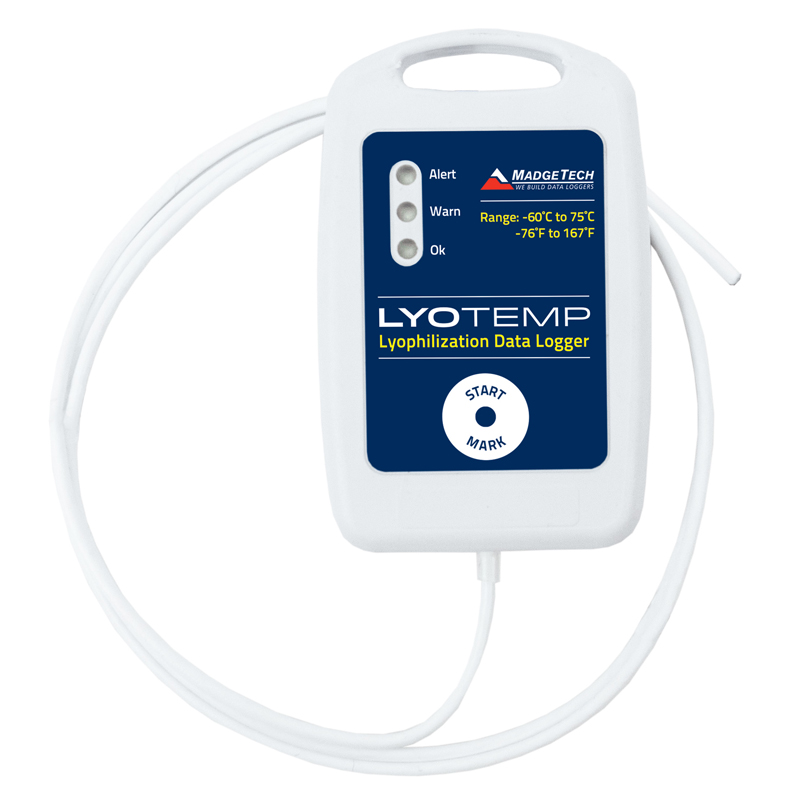

The LyoTemp is an ultra-low temperature data logger with an operating range of -60 °C to +75 °C (-76 °F to +167 °F). Designed with a hermetically sealed temperature sensor with a flexible cable, the LyoTemp is ideal for monitoring products during the lyophilization process.
The LyoTemp provides 32,767 date and time stamped temperature readings with an accuracy of ±0.5 °C. Trusted to monitor critical applications, the LyoTemp is equipped with configurable high/low alarm limits and high/low warning limits to alert users when the temperature near unacceptable levels.
The LyoTemp is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MADGETECH-LyoTemp Product User Guide.pdf
MADGETECH-LyoTemp Specification Sheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | LYOTEMP |
| Memory | 32,767 readings |
| Reading Rate | 1 reading every 5 seconds up to 1 reading every 30 minutes |
| Single/Multi-Use | Multi-use |
| Battery Life | 1 year typical |
| Material | ABS plastic |
| Dimensions | 3.3 in x 2.1 in x 0.4 in, (83 mm x 54 mm x 11 mm) |
| Operating Environment | -60 °C to +75 °C (-76 °F to +167 °F), 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA |
| Required Interface Package | IFC300 |
| Approvals | CE |
| Temperature | \ |
| Temperature Sensor | Thermistor |
| Temperature Range | -60 °C to +75 °C (-76 °F to +167 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Calibrated Accuracy | 0.5 °C |
