MADGETECH It is a high-temperature data logger with an M12 probe connector. HiTemp140-M12
$946.00
Key Features:
- Memory Capacity of 21,000+ Readings
- Available to accept RTD M12 probes
- Capable of Measuring Temperature up to 850 °C
Availability: 5-7 Business Days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

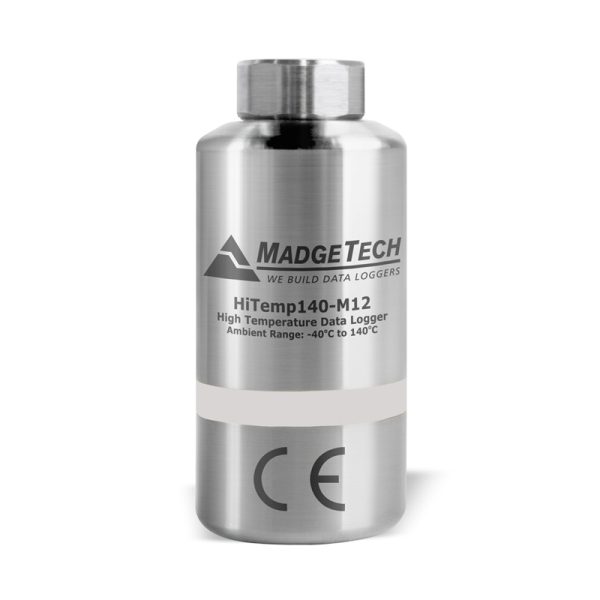

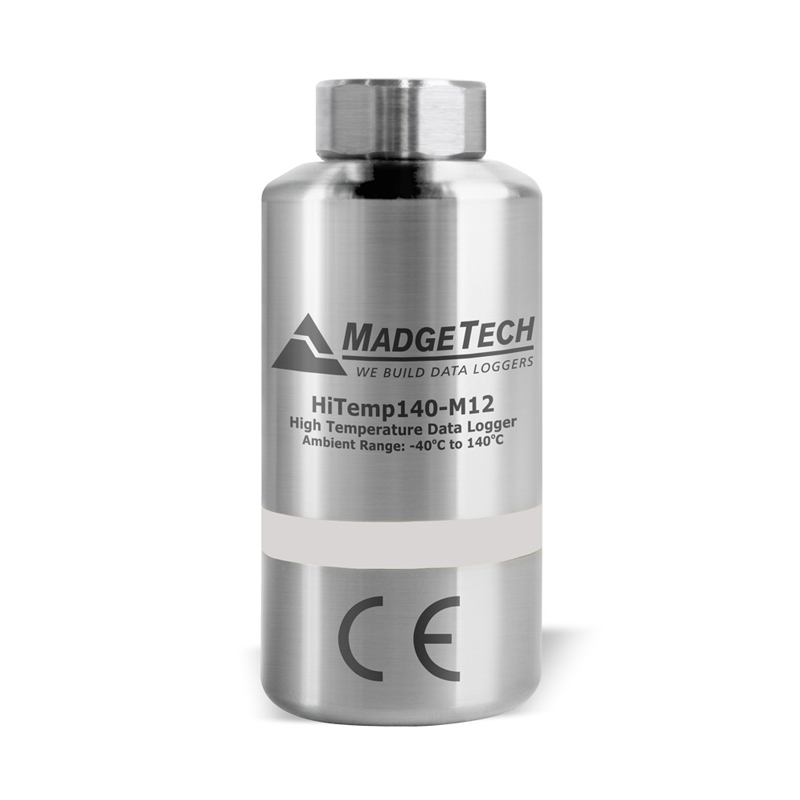

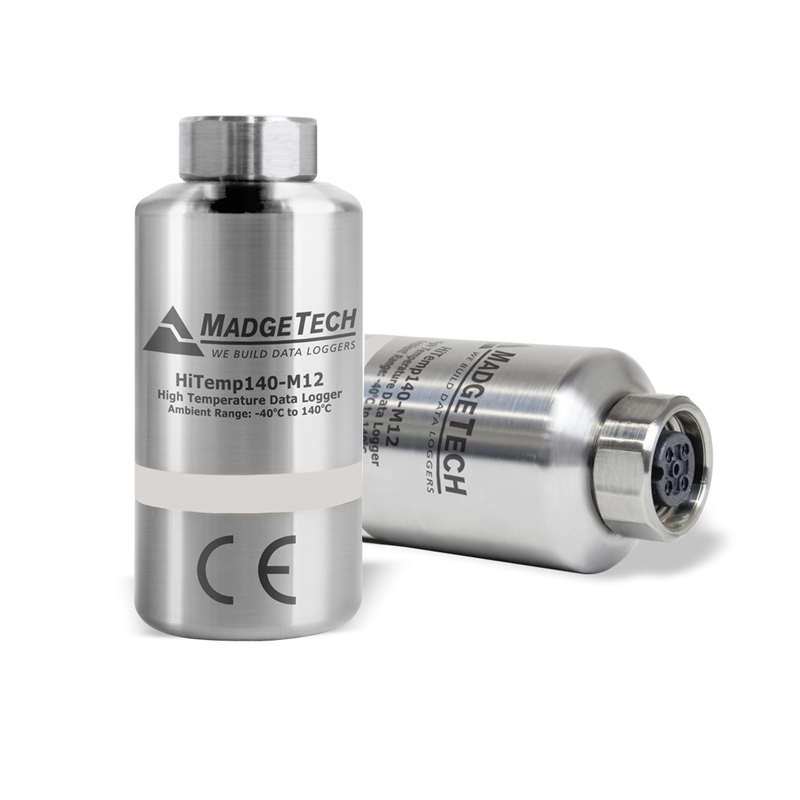

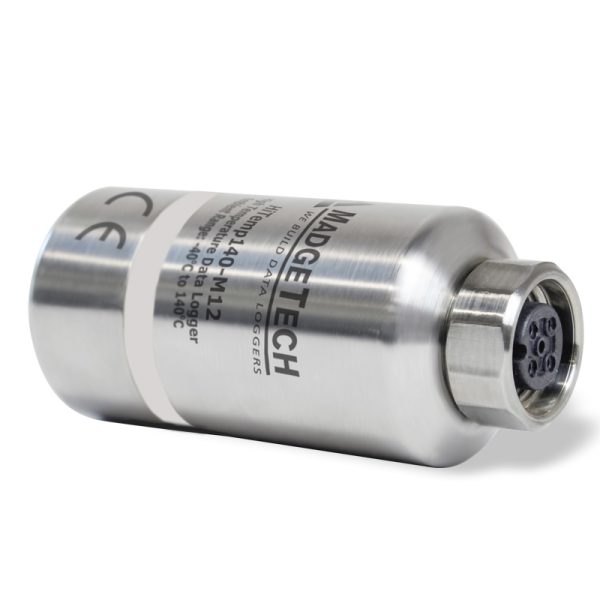

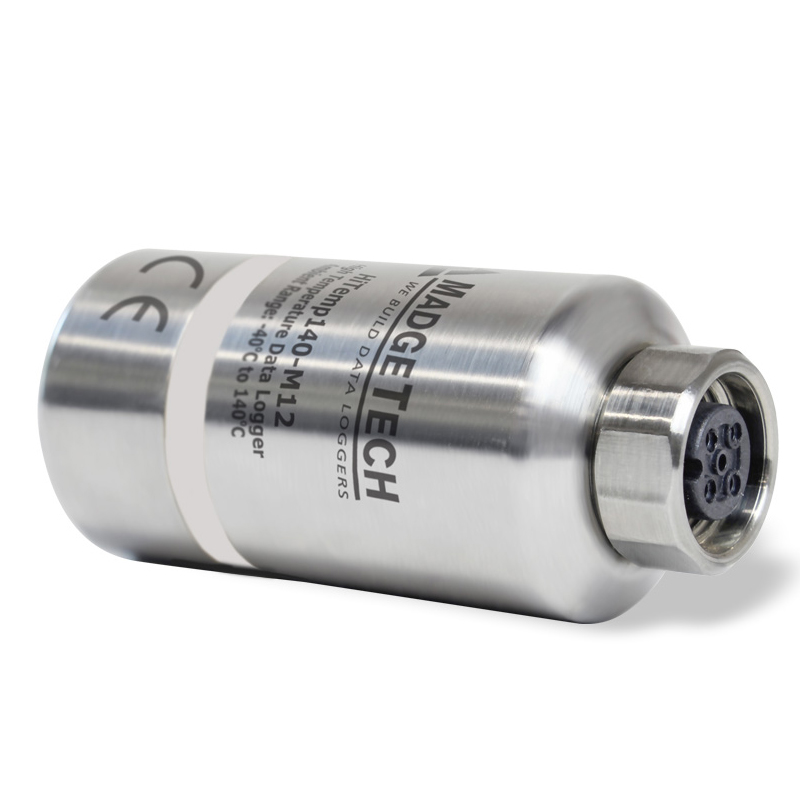

The HiTemp140-M12 is a high-temperature data logger featuring an M12 probe connector. With the ability to change probes as needed, this device satisfies a multitude of application needs.
Compatible with a wide variety of M12 RTD probe styles, the HiTemp140-M12 is capable of measuring up to 850 °C (1562 °F) (probe dependent). The HiTemp140-M12 records and stores up to 21,504 time-stamped readings and can be programmed for immediate start or delayed start up to 18 months in advance.
The HiTemp140-M12 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Body of data logger cannot exceed 140 °C (284 °F), but can extend to higher temperatures when used with MadgeTech’s thermal barrier options.
MADGETECH-HiTemp140-M12 Specification Sheet.pdf
MADGETECH-HiTemp140-M12 Product User Guide.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | HITEMP140-M12 |
| Memory | 21,504 readings |
| Reading Rate | 4 readings per second up to 1 reading every 24 hours |
| Baud Rate | 125,000 |
| Battery Life | 2 years typical (1 minute reading rate) Fast reading intervals and extreme temperatures will shorten the battery life substantially User Replaceable Battery |
| Material | 316 Stainless Steel, Radel |
| Dimensions | 2.14 in x 0.97 in x 0.97 in (54.5 mm x 24.6 mm x 24.6 mm) |
| Key Ring End Cap | Key ring replaces standard bottom |
| IP Rating | IP40 – logger alone (with no probe connected) |
| Submersible | Yes (with probe attached) |
| Operating Environment | -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH non-condensing, 0.002 PSIA to 60 PSIA (Body of Logger cannot Exceed 140 °C) |
| Required Interface Package | IFC400 or IFC406 |
| Approvals | CE |
| Temperature | / |
| Temperature Sensor | Temperature Sensor |
| Temperature Resolution | 0.0001 Ω, (0.01 °C / 0.018 °F) (Probe Dependent) |
| Temperature Calibrated Accuracy | ±0.0462 Ω (18 Ω to 200 Ω) |
| Probe Temperature Range | 18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent) (Body of Logger Cannot Exceed 140 °C) |
