MADGETECH- is an ultra-low, temperature mapping and validation system. Includes ISO17025 accredited calibration certificates. ULT90
What’s Included:
- CryoTemp Ultra-Low Temperature Data Loggers
- IFC300 Cable Interface
- MadgeTech 4 Secure Software
- IQ/OQ/PQ Validation Protocols
Availability: 5-7 Business Days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

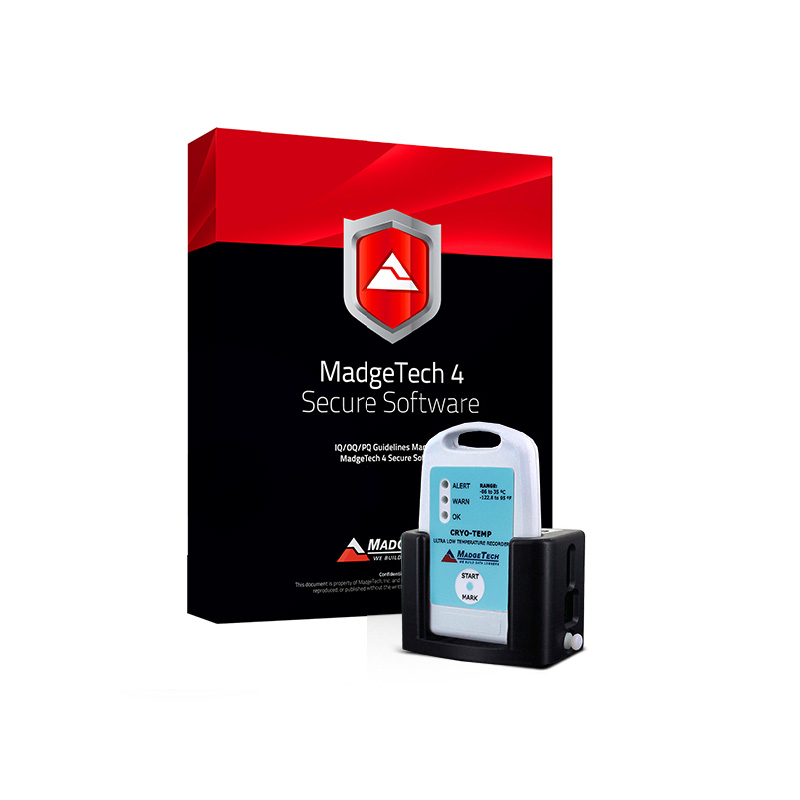

The ULT90 Includes:
(9) (15) CryoTemps: Ultra-Low Temperature Data Logger
(1) IFC300: Cable Interface
(1) MadgeTech 4 Secure Software and IQ/OQ/PQ Validation Protocols
The ULT90 is an ultra-low temperature freezer validation system, measuring temperatures as low as -86 °C (-122.80 °F). This system provides a complete temperature mapping and validation solution to ensure proper storage and testing conditions.
The CryoTemp provides 32,767 date and time stamped temperature readings with an accuracy of ±1.0 °C (1.8 °F). Equipped with high/low alarm limits and high/low warning limits the user will be alerted when the temperature nears unacceptable levels.
The MadgeTech 4 Secure Software aids users in compliance with 21 CFR Part 11 requirements. The software ensures electronic signatures, access codes, secure data file and audit trails meet standards.
MADGETECH-ULT90 Product User Guide.pdf
MADGETECH-ULT90 Specification Sheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | ULT90 |
| Memory | 32,767 readings |
| Reading Rate | 1 reading every 5 seconds up to 1 reading every 30 minutes |
| Single/Multi-Use | Multi-use |
| Battery Life | 2 years typical at 25 °C, 1 min. reading intervals |
| Material | ABS plastic |
| Dimensions | 3.3 in x 2.1 in x 0.4 in, (83 mm x 54 mm x 11 mm) |
| Operating Environment | -86 °C to +35 °C (-122.8 °F to +95 °F), 0 %RH to 100 %RH |
| Required Interface Package | IFC300 |
| Approvals | CE |
| Temperature | / |
| Temperature Sensor | Thermistor |
| Temperature Range | -86 °C to +35 °C (-122.8 °F to +95 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Calibrated Accuracy | ±1.0 °C (1.8 °F) |
