MADGETECH is a wireless pulse data logger. Includes declaration of conformance.RFPulse2000A
Key Features:
- Digital Display
- Continuous Monitoring
- Configurable Alarms & Notifications
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The RFPulse2000A is a wireless data logger that records pulse output signals from a variety of sensors. The RFPulse2000A is unique in that it not only calculates pulse count, but it also calculates pulse rate.

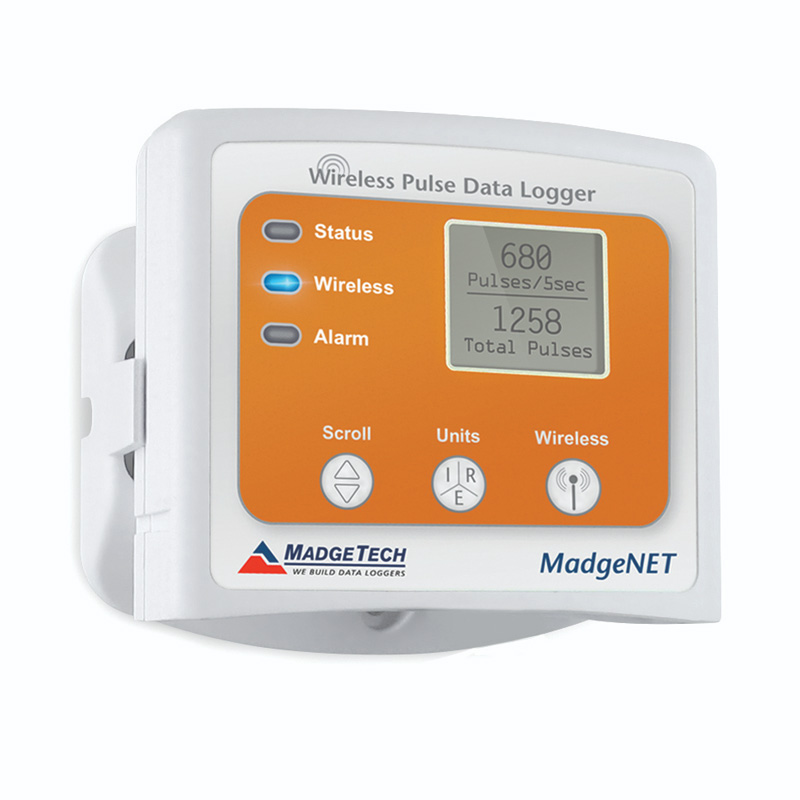

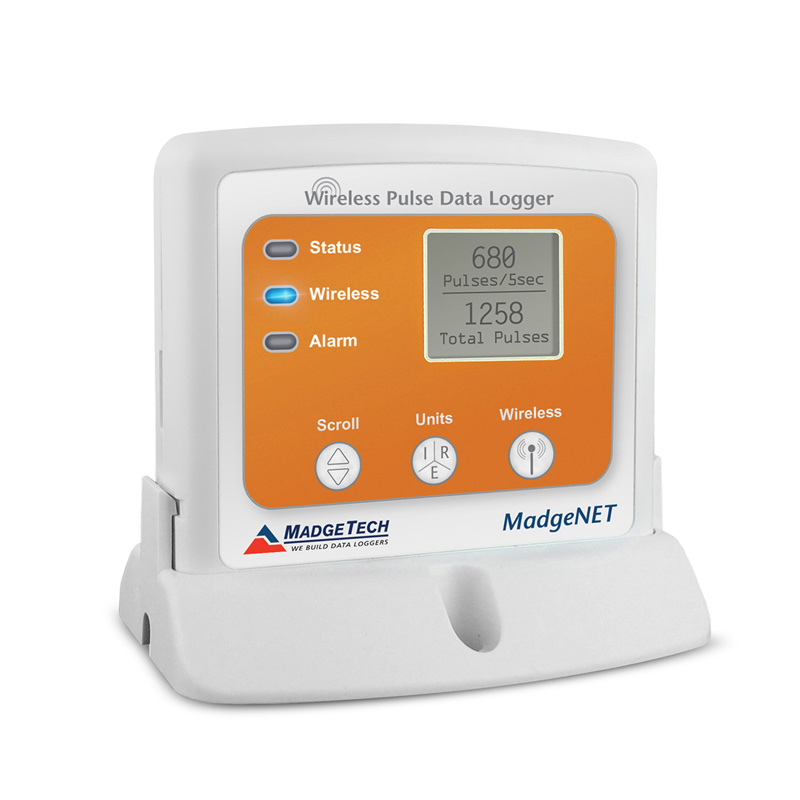

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFPulse2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.
The RFPulse2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
The RFPulse2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.
Note: RFC wireless interface required.
RFPulse2000A Product User Guide.pdf
RFPulse2000A Specification Sheet.pdf
Additional information
| Brand | RFPULSE2000A |
|---|---|
| Memory | 16,128 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| LED Indicators | Green, Blue & Red |
| Battery Life | 5 years typical at a 10 minute reading rate |
| Material | ABS plastic |
| Dimensions | 3.5 in x 3.0 in x 0.95 in (88.9 mm x 76.2 mm x 24.1 mm) – Data logger only |
| IP Rating | IP22 |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | RFC1000 |
| Approvals | US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
| Pulse | / |
| Maximum Pulse Rate | 10 KHz |
| Pulse Input Range | 0 to 4294967295 Pulses |
| Pulse Input Low | <720 mV |
| Pulse Input High | >1.070 V |
| Wireless | / |
| RF Carrier Frequency | 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
| Output Power | +0 dBm typical |
| Receiver Sensitivity | -95 dBm typical |
| Typical outdoors Line of sight | Up to 2000 ft |
| Typical Indoors line of sight | Up to 500 ft |
