MADGETECH is a wireless CO2, humidity and temperature data logger.RFCO2RHTEMP2000A
Key Features:
- Digital Display
- Continuous Monitoring
- Configurable Alarms & Notifications
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

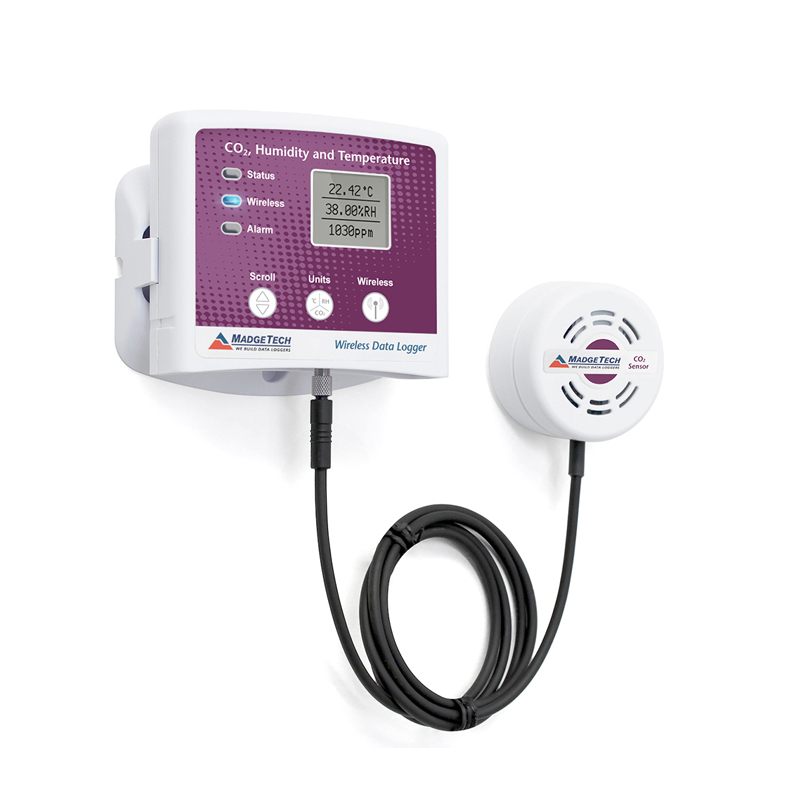

The RFCO2RHTemp2000A is a wireless data logger that measures and records carbon dioxide, humidity and temperature. It’s the all-in-one solution for acquiring a complete environmental profile.

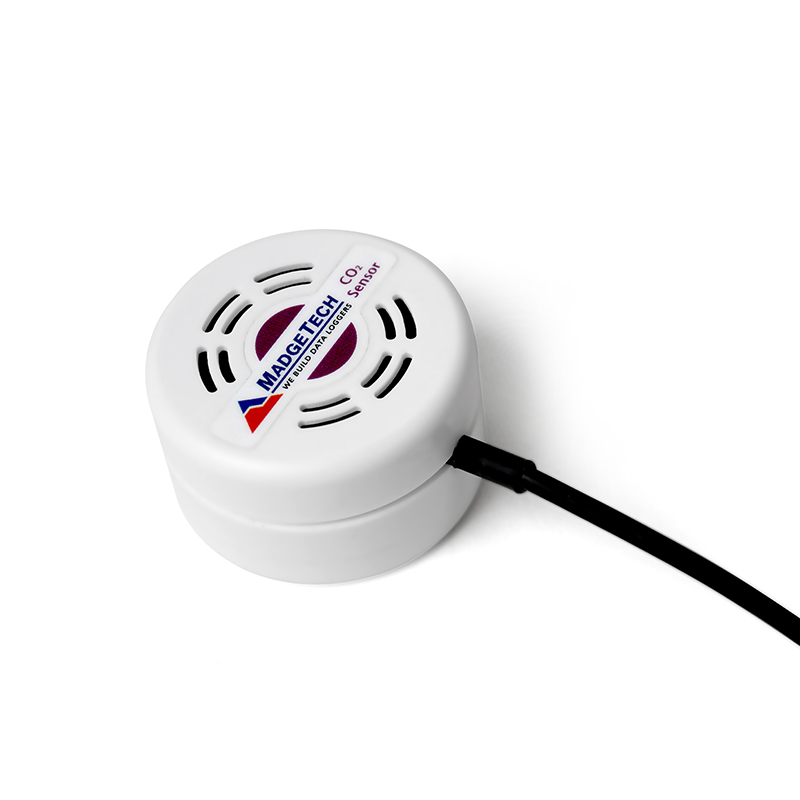

The RFCO2RHTemp2000A comes with a 16 ft. cable connected to the CO2 sensor, making it ideal for placement within enclosed environments. This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFCO2RHTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.
The RFCO2RHTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
The RFCO2RHTemp2000A is MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.
Note: RFC wireless interface required.
MADGETECH-RFCO2RHTemp2000A Specification Sheet.pdf
MADGETECH-RFCO2RHTemp2000A Product User Guide.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | RFCO2RHTEMP2000A |
| Memory | 10,752 readings (all channels enabled) |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| LED Indicators | Green, Blue & Red |
| Battery Life | 16 months typical at a 10 minute reading rate |
| Material | ABS plastic |
| Dimensions | Data logger: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) |
| IP Rating | IP22 |
| Operating Environment | 0 °C to +55 °C (+32 °F to +131 °F), 0 %RH to 95 %RH, 13.77 PSIA to 100 PSIA |
| Required Interface Package | RFC1000 |
| Approvals | US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
| Temperature | / |
| Internal Channel Temperature Sensor | Silicon |
| Internal Channel Temperature Range | 0 °C to +55 °C (+32 °F to +131 °F) |
| Internal Channel Temperature Resolution | 0.08 °C (0.144 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±1.0 °C |
| Humidity | / |
| Humidity Sensor | Silicon |
| Humidity Range | 0 %RH to 95 %RH |
| Humidity Resolution | 0.08 %RH |
| Humidity Calibrated Accuracy | ±3.0 %RH from 25 %RH to 75 %RH @ 25 °C, 7 %RH otherwise |
| Carbon Dioxide | / |
| Carbon Dioxide Range | 0 ppm to 200,000 ppm |
| Carbon Dioxide Resolution | 10 ppm |
| Carbon Dioxide Accuracy | 70 ppm ± 5% of the reading |
| Wireless | / |
| RF Baud Rate | 250,000 |
| Output Power | +0 dBm typical |
| Receiver Sensitivity | -95 dBm typical |
| Typical outdoors Line of sight | Up to 2000 ft |
| Typical Indoors line of sight | Up to 500 ft |
