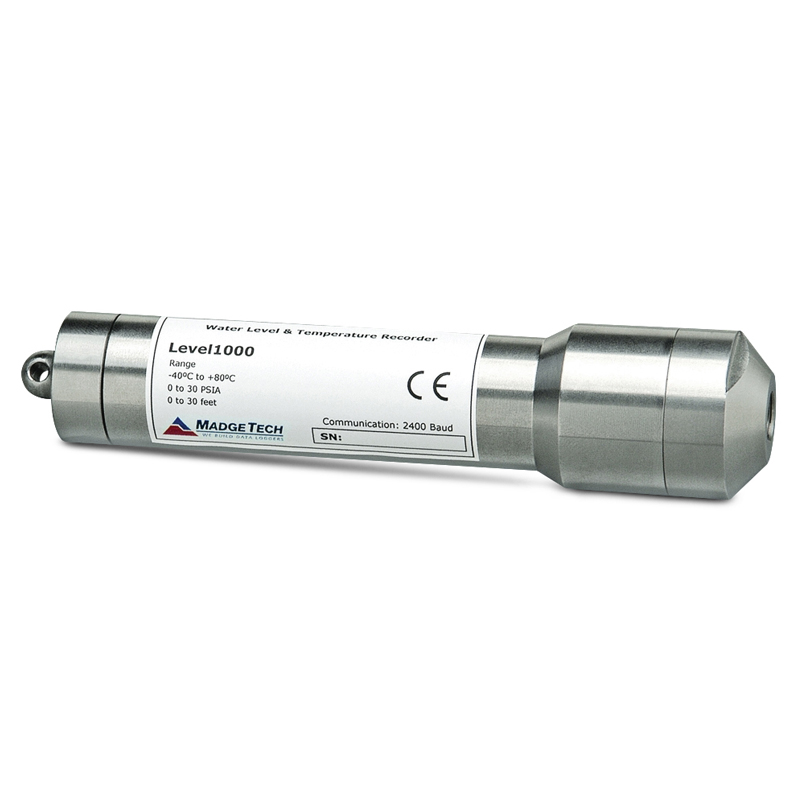

MADGETECH is a water level and temperature data logger. Includes standard calibration certificate.LEVEL1000
Key Features:
- Compact Size
- Submersible up to 30 Feet
- Measures Temperatures from -40 °C to 80 °C
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The Level1000 is a water level and temperature data logger submersible up to 30 feet, 30 PSIA. Its compact design allows it to fit almost anywhere, making underwater studies effortless.
The Level1000 can withstand temperatures from -40 °C to 80 °C (-40 °F to +176 °F) and record up to 32,766 readings. The storage medium is non-volatile memory, providing maximum data security even if the battery becomes discharged.
The Level1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MADGETECH-Level1000 Specification Sheet.pdf
MADGETECH-Level1000 Product User Guide.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | LEVEL1000 |
| Memory | 32,766 readings (all channels enabled) |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
| Baud Rate | 2,400 |
| Battery Life | 1 year |
| Material | 303 Stainless Steel |
| Dimensions | 5.7 in x 1.25 in dia.(145 mm x 32 mm) |
| Submersible | Yes |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH |
| Required Interface Package | IFC110 or IFC200 |
| Approvals | CE |
| Temperature | / |
| Temperature Sensor | Internal Semiconductor |
| Temperature Range | -40 °C to 80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C |
| Water Level | / |
| Pressure Sensor | / |
| Nominal Range | 0 to 30 ft |
| Level Resolution | 0.05 in |
| Level Calibrated Accuracy | ±8.3 inches of water (1.0 in typical at 25 °C (77 °F) |
