MADGETECH is a thermocouple-based temperature data logger with LCD for real-time monitoring.TCTemp2000
Key Features:
- Digital Display
- Accepts a Variety of Thermocouples
- Memory Capacity of 262,000+ Readings
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

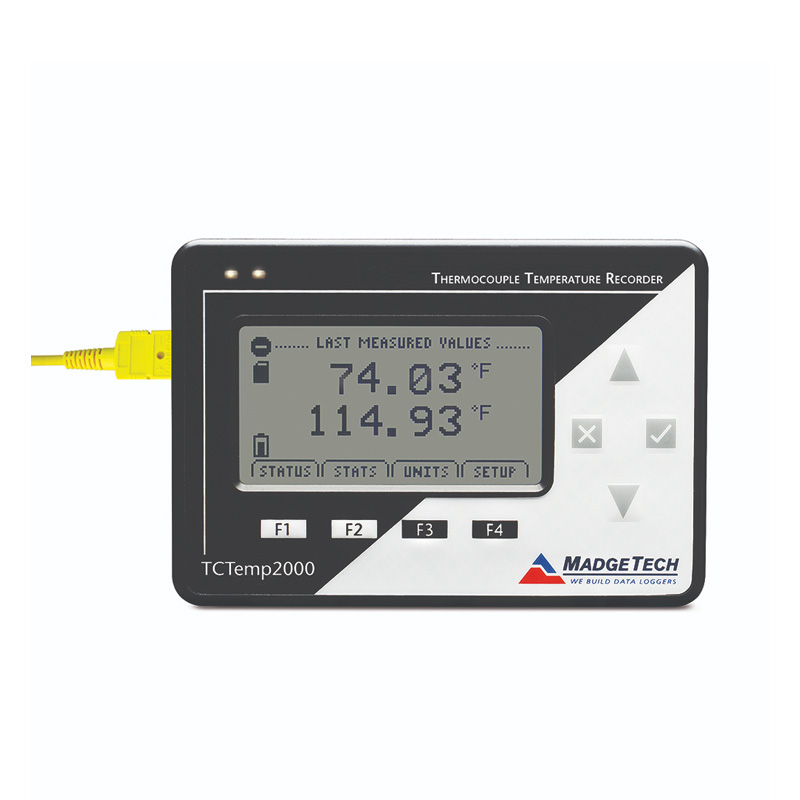

The TCTemp2000 is a thermocouple-based temperature data logger with LCD and wall mounted power adapter.
The 8-button keypad and LCD provide convenient access to current statistics (min, max, average), recording status, display options and calibration information. The TCTemp2000 can be programmed to start up to 6 months in advanced with a storage capacity of 262,143 time and date stamped readings.
The TCTemp2000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Thermocouple probes sold separately.
MADGETECH-TCTemp2000 Specification Sheet.pdf
MADGETECH-TCTemp2000 Product User Guide.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | TCTEMP2000 |
| Memory | 131,071 readings (all channels enabled) |
| Reading Rate | 1 reading every 2 seconds to 1 reading every 24 hours |
| Baud Rate | 262,143 readings |
| Cold Junction Compensation | Automatic, based on internal channel |
| Battery Life | 1 year battery life at 1 min reading rate with display off. 30 days typical with continuous LCD and no backlight usage. Optional AC Adapter available. |
| Material | Black anodized aluminum |
| Dimensions | 4.8 in x 3.3 in x 1.25 in (122 mm x 84 mm x 32 mm) |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Temperature | / |
| Internal Channel Temperature Sensor | Semiconductor |
| Internal Channel Temperature Range | -20 °C to +60 °C (-4 °F to +140 °F) |
| Internal Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C (0 °C to +50 °C) |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
