MADGETECH is a temperature, pressure, and transient pressure data logger with NPT connectors.PR1000
Key Features:
- Compact
- Submersible
- ¼ Inch NPT Fitting
- Available in 10 Measurement Ranges
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

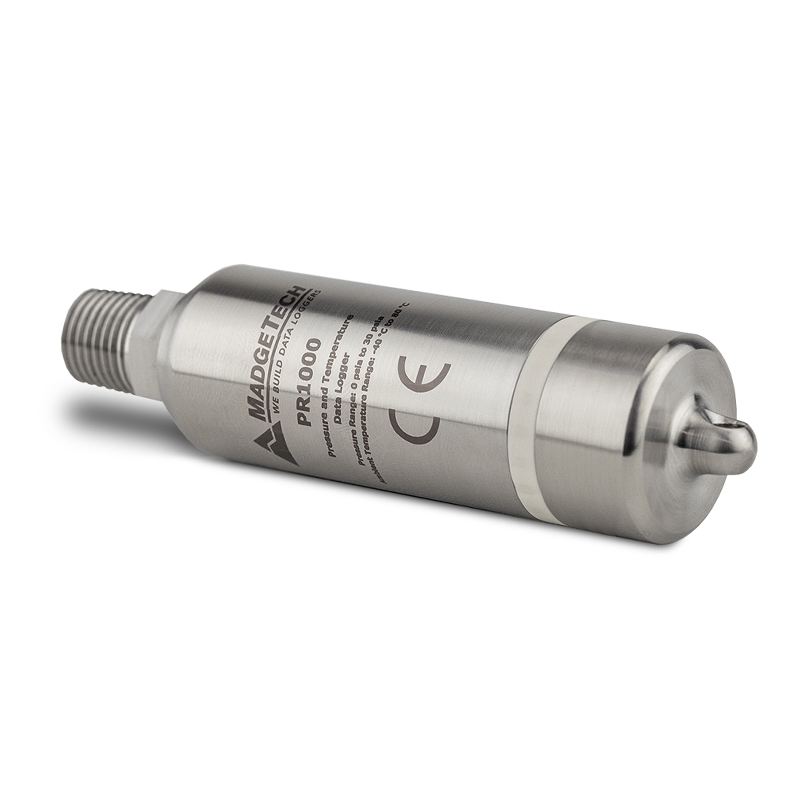

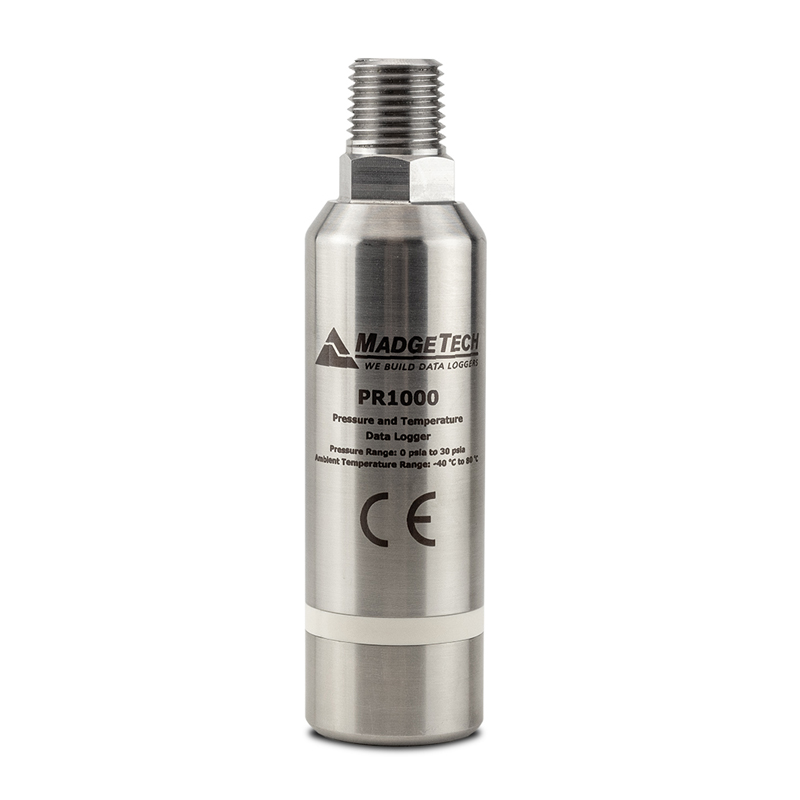

The PR1000 is a temperature, pressure and transient pressure data logger. This device is fully submersible and available in 10 models ranging from 30 to 5000 PSI.

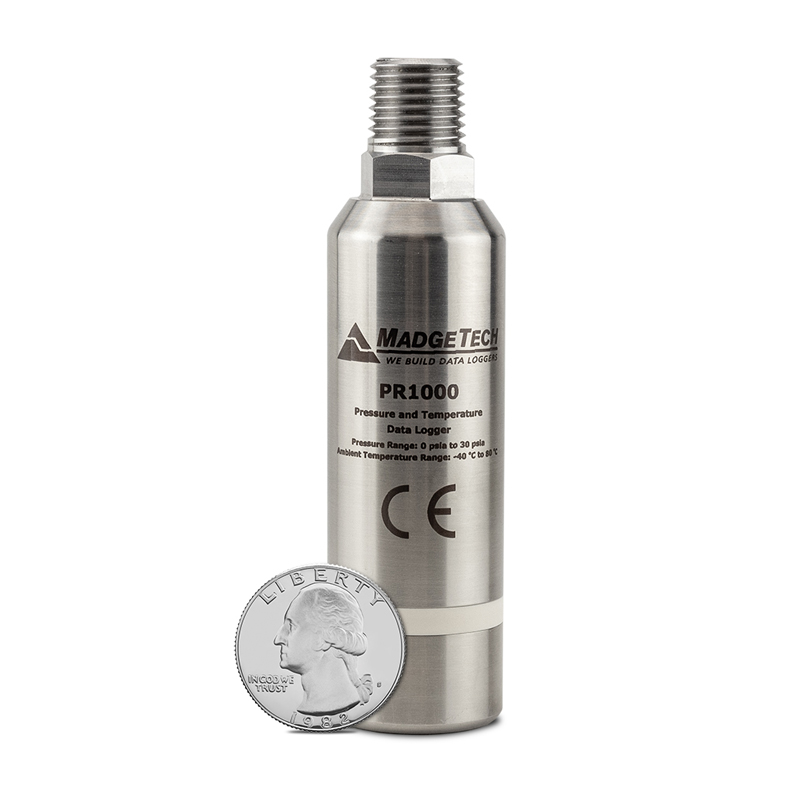

Standing just under 4 inches tall and an inch in diameter, the PR1000 is compact for easy placement and features a ¼ inch NPT fitting for quick connection. The PR1000 can store more than 1.3 million readings with an internal temperature sensor that provides measurements from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±2.0 °C.
The PR1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Note: The PR1000 replaces the PRTemp1000 and PRTrans1000.
MADGETECH-PR1000 Specification Sheet.pdf
MADGETECH-PR1000 Product User Guide.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | PR1000 |
| Memory | 1,396,736 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Battery Life | 1 year |
| Material | 316 Stainless Steel/Radel |
| Dimensions | 3.6 in x 0.97 in dia. (91.3 mm x 24.6 mm dia.) |
| Submersible | Yes |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH |
| Required Interface Package | IFC400 or IFC406 |
| Approvals | CE |
| Temperature | / |
| Temperature Sensor | Internal semiconductor |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 1.0 °C |
| Temperature Calibrated Accuracy | ±2.0 °C |
| Pressure | / |
| Pressure Range | 0 to 30, 100, 300, 500 PSIA/PSIG; 1000 and 5000 PSIA |
| Pressure Resolution | Range: Resolution |
| Pressure Calibrated Accuracy | Range: Accuracy |
