MADGETECH is a pressure data logger for high temperature applications. PR140
Key Features:
- Submersible
- Accuracy of ±0.03 Bar

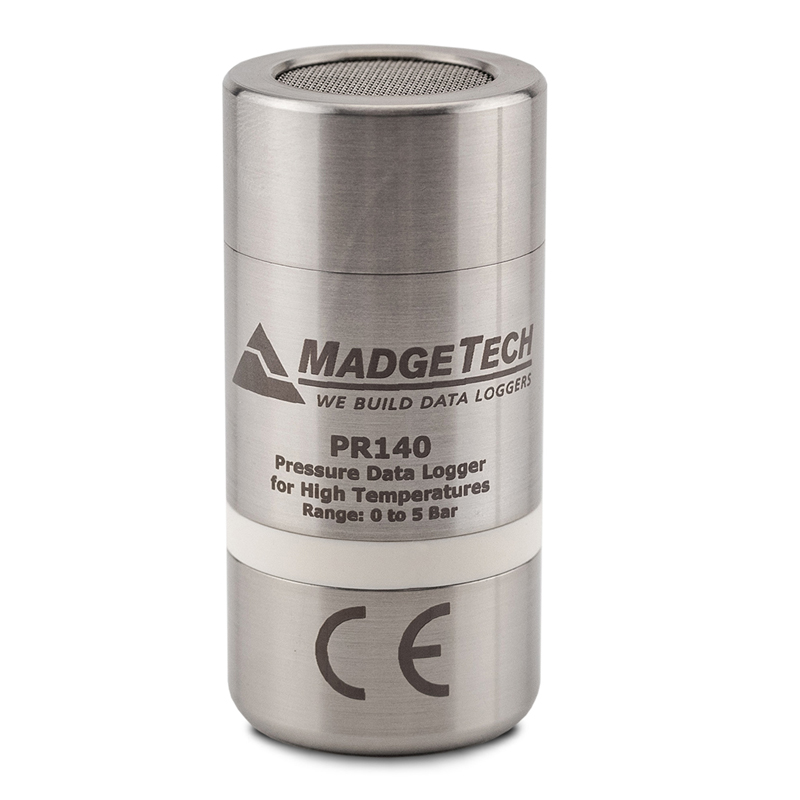

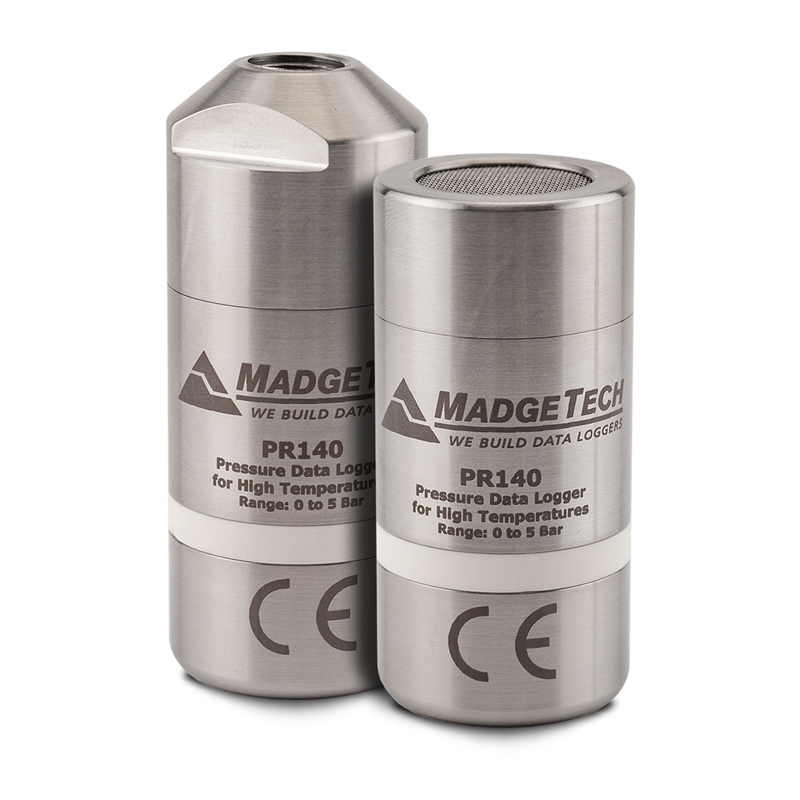

- Available in Flush or NPT Pressure Port Top
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

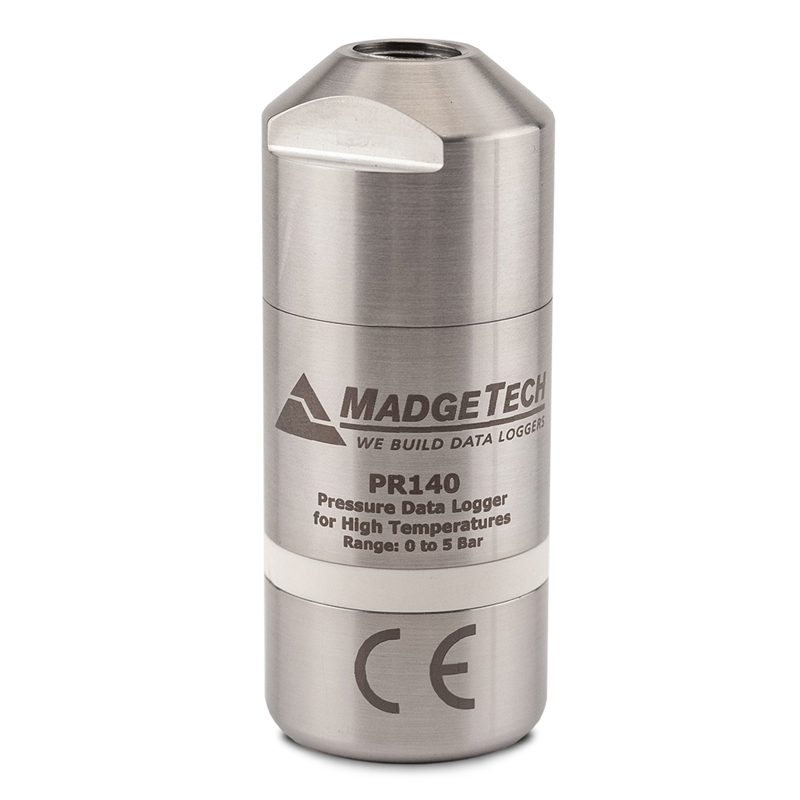

The PR140 is a pressure data logger designed for use in high temperature applications. This device is completely submersible (IP68) and is available with a 1/8-27 NPT pressure port top, allowing it to connect with a variety of fitting and adapters.
The PR140 can withstand temperatures up to +140 °C (+284 °F) with an accuracy of up to ±0.03 Bar (±0.435 PSI). The PR140 can be programmed to take measurements as often as once per second (1 Hz) and can store up to 32,256 readings.
The PR140 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MADGETECH-PR140 Specification Sheet.pdf
MADGETECH-PR140 Product User Guide.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | PR140 |
| Memory | 32,256 readings |
| Reading Rate | 1 second to once every 24 hours, selectable in software |
| Baud Rate | 125,000 |
| Battery Life | 2 years typical (1 minute reading rate at 25 °C / 77 °F) Fast reading intervals and extreme temperatures will shorten the battery life substantially |
| Material | 316 Stainless Steel, Radel |
| Dimensions | 2.29 in x 1.0 in dia. (58.2 mm x 25.4 mm dia.) |
| IP Rating | IP68 |
| Submersible | Yes |
| Operating Environment | -20 °C to +140 °C (-4 °F to +284 °F), 0 %RH to 100 %RH |
| Approvals | CE |
| Pressure | / |
| Pressure Sensor | Semiconductor Strain Gauge |
| Pressure Range | 0 to 5 Bar (0 to 72.5 PSIA) |
| Pressure Resolution | 0.0001 bar (0.00145 PSIA) |
| Pressure Calibrated Accuracy | ±0.03 bar from +20 °C to +140 °C (+68 °F to +284 °F) |
