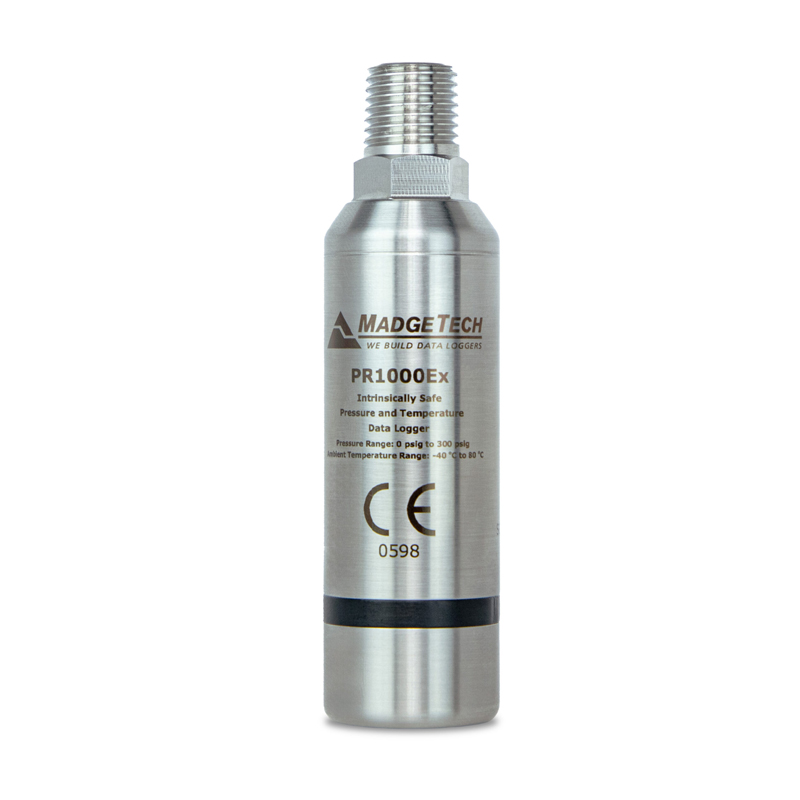

MADGETECH is a pressure and temperature data logger with NPT connectors and is certified for hazardous locations (ATEX, IECEx). PR1000Ex
Key Features:
- ATEX Approved
- Compact Design
- ¼ Inch NPT Fitting
- Available in 10 Measurement Ranges
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The PR1000Ex is a temperature, pressure, and transient pressure data logger that carries hazardous location certification (ATEX, IECEx).
- Electrical Protection Concepts: IEC: 60079-11 Ex ia – Ex ic, Intrinsic Safety Zones 0-2
- Equipment Protection Level: Ga – Gc, Zones 0-2
- Gas Groups: IIC
- Temperature Class: T4
Designed to fit in the palm of your hand, the PR1000Ex is only 3.6 inches tall and features a common ¼ in. NPT pressure port for easy installation. The PR1000Ex can store more than 1.3 million readings with an internal temperature sensor that provides measurements from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±2.0 °C. To adapt to most applications, the PR1000Ex will be available in 10 different pressure ranges from 30 up to 5000 PSIA/PSIG.
The PR1000Ex is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
The PR1000Ex is certified in accordance with the latest issue of IECEx 60079-0, IECEx 60079-11, and Directive 2014/34/EU.
MADGETECH-PR1000Ex Specification Sheet.pdf
MADGETECH-PR1000Ex Product User Guide.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | PR1000EX |
| Memory | 1,396,736 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours, Up to 128 Hz in transient mode |
| Battery Life | 1 year |
| Material | 316 Stainless Steel/Radel |
| Dimensions | 3.6 in x 0.97 in dia. (91.3 mm x 24.6 mm dia.) |
| Submersible | Yes |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH |
| Required Interface Package | IFC400/IFC406 |
| Approvals | CE, IS rated |
| Temperature | / |
| Temperature Sensor | Internal semiconductor |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 1.0 °C (1.8 °F) |
| Temperature Calibrated Accuracy | ±2.0 °C (3.6 °F) at 0 °C to +50 °C (+32 °F to +122 °F) |
| Pressure | / |
| Pressure Sensor | Semiconductor (strain gauge) |
| Pressure Range | 0-30, 0-100, 0-300, 0-500 PSIA/PSIG, 0-1000, 0-5000 PSIA |
| Pressure Resolution | See Specifications Sheet |
| Pressure Calibrated Accuracy | Range: Accuracy |
