MADGETECH is a precision high-temperature data logger.HITEMP140-1
$854.00
Key Features:
- Submersible
- Available in Various Probe Lengths & Styles
- Measures Temperatures from -40 °C to +140 °C
Availability: 5-7 Business Days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

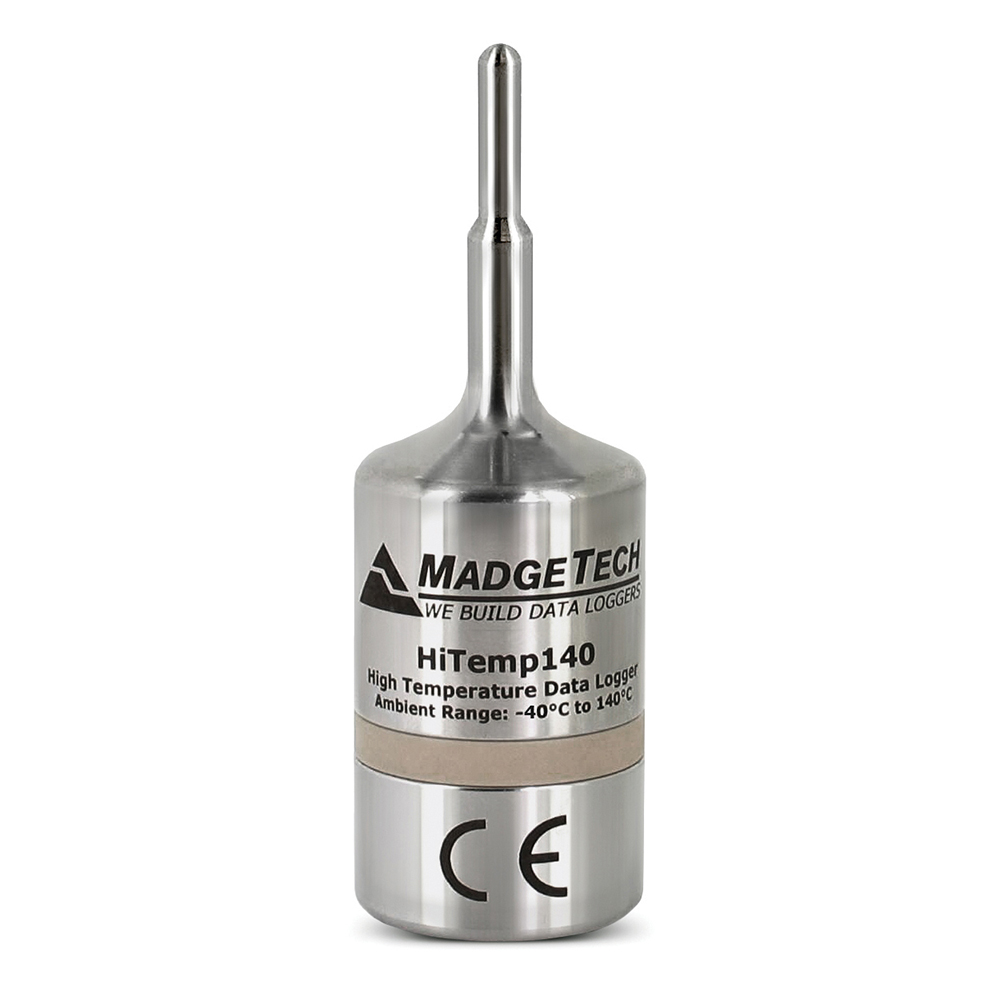

The HiTemp140 is a premier high-temperature data logger uniquely engineered for performance in harsh environmental conditions. This submersible unit is crafted to deliver reliable data logging in industries where temperature accuracy is critical. With its robust stainless steel design, the HiTemp140 is especially suited for applications in pharmaceuticals, food processing, and industrial manufacturing. These sectors demand precise monitoring tools that can withstand not only high temperatures but also the rigorous cleaning processes often required in such settings.
The HiTemp140 operates within a standard temperature range of -40 °C to +140 °C (-40 °F to +284 °F), making it a robust tool for a variety of high-temperature applications. For processes that reach higher temperatures, the HiTemp140 can be used with thermal barriers including the HiTemp140-TS, which can extend the temperature range up to 250 °C (482 °F).
The HiTemp140 is available with a variety of probe lengths and styles, each designed for specific scenarios and applications. The selection of a probe depends on factors such as the nature of the medium being monitored, the required insertion depth, and the environment’s physical space constraints. To learn more about the variety of probes available, please click here. With a substantial storage capacity for up to 32,256 time and date-stamped readings, the HiTemp140 can continuously record data over extended periods.
Additionally, it is fully compatible with the MadgeTech 4 Data Logger Software, which facilitates straightforward setup, comprehensive data management, and detailed analysis. This software compatibility enhances operational efficiency and ensures precision in data logging tasks, making it an ideal choice for rigorous monitoring needs.
Body of data logger cannot exceed 140 °C (284 °F), but can extend to higher temperatures when used with MadgeTech’s thermal barrier options.
Additional information
| Brand | MADGETECH |
|---|---|
| Model | HITEMP140 |
| Memory | 32,256 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 125,000 |
| Battery Life | 2 years typical (1 minute reading rate) Fast reading intervals and extreme temperatures will shorten the battery life substantially User Replaceable Battery |
| Material | 316 Stainless Steel, Radel |
| HiTemp 140 Rigid and Rigid Transitional Diameter Dimensions | HiTemp140-1 Body: 1.55 in x 0.97 in dia. (40 mm x 25 mm dia.) HiTemp140-2 : 2.0 in x 0.188 in dia. (51 mm x 4.8 mm) HiTemp140-2-TD: 2.0 in x 0.125 in dia. (0.188 in transitional dia.) HiTemp140-5.25: 5.25 in x 0.188 in dia. (134 mm x 4.8 mm) HiTemp140-5.25-TD: 5.25 in x 0.125 in dia. (0.188 in transitional dia.) HiTemp140-7: 7.0 in x 0.188 in dia. (178 mm x 4.8 mm dia.) |
| HiTemp140 Fast Response Probe Dimensions | Body: 1.89 in x 0.97 in x 0.97 in (48.1 mm x 24.6 mm x 24.6 mm) |
| Key Ring End Cap | Key ring replaces standard bottom |
| IP Rating | IP68 |
| Submersible | Yes |
| Operating Environment | -40 °C to +140 °C (-40 °F to +284 °F); 0 %RH to 100 %RH; 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C) |
| Required Interface Package | IFC400 |
| Approvals | CE |
| Temperature | / |
| Temperature Sensor | 100 Ω Platinum RTD |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F) |
| Probe Temperature Range | -200 °C to +260 °C (-328 °F to +500 °F) (Body of Logger Cannot Exceed 140 °C) |
