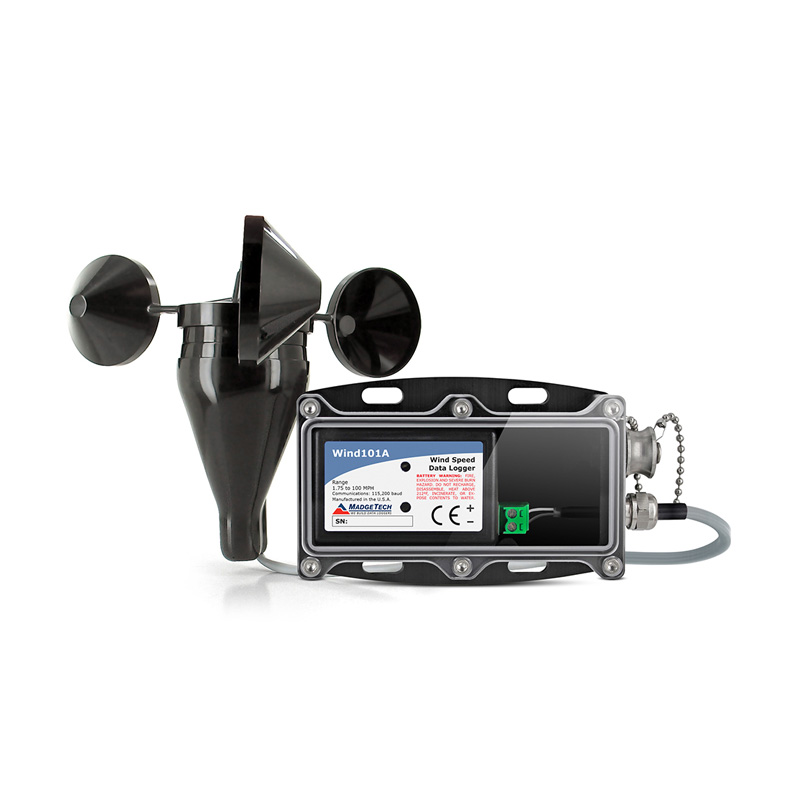

MADGETECH is a data logging system to measure and record wind speed.WIND101A
What’s Included:
- Pulse101A Pulse Data Logger
- Weather Proof Enclosure
- 3-Cup Anemometer with 25′ Cable
- IFC200 Interface Cable
Availability: 5-7 Business Days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The Wind101A Includes:

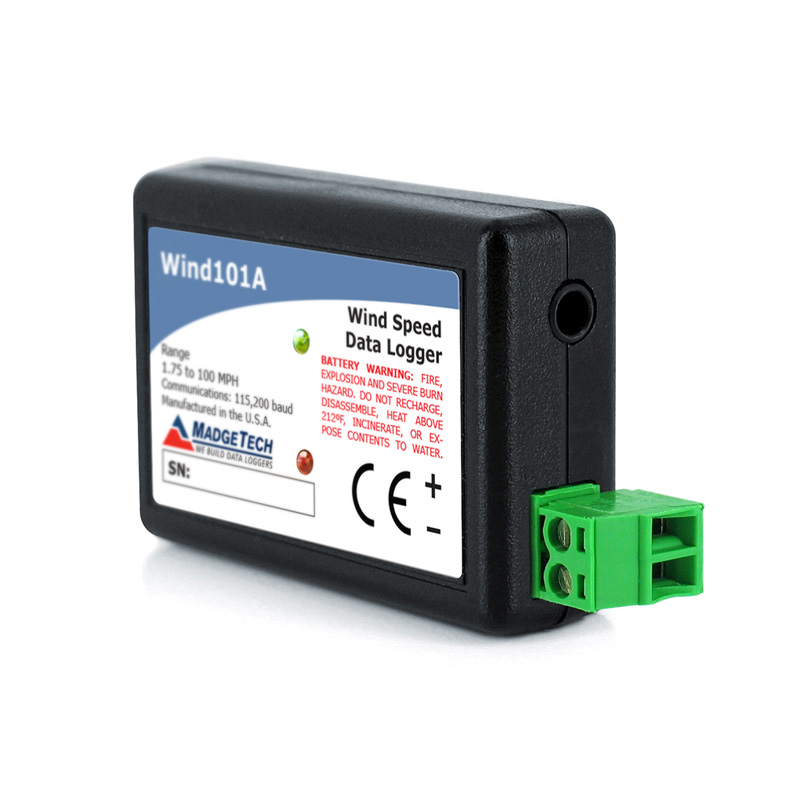

(1) Pulse101A: Pulse Data Logger

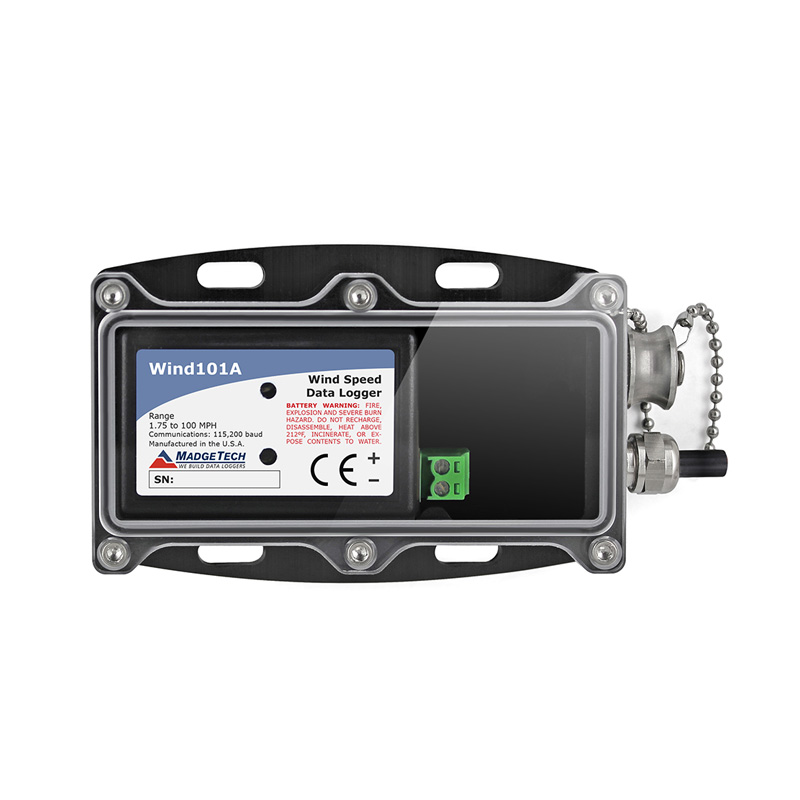

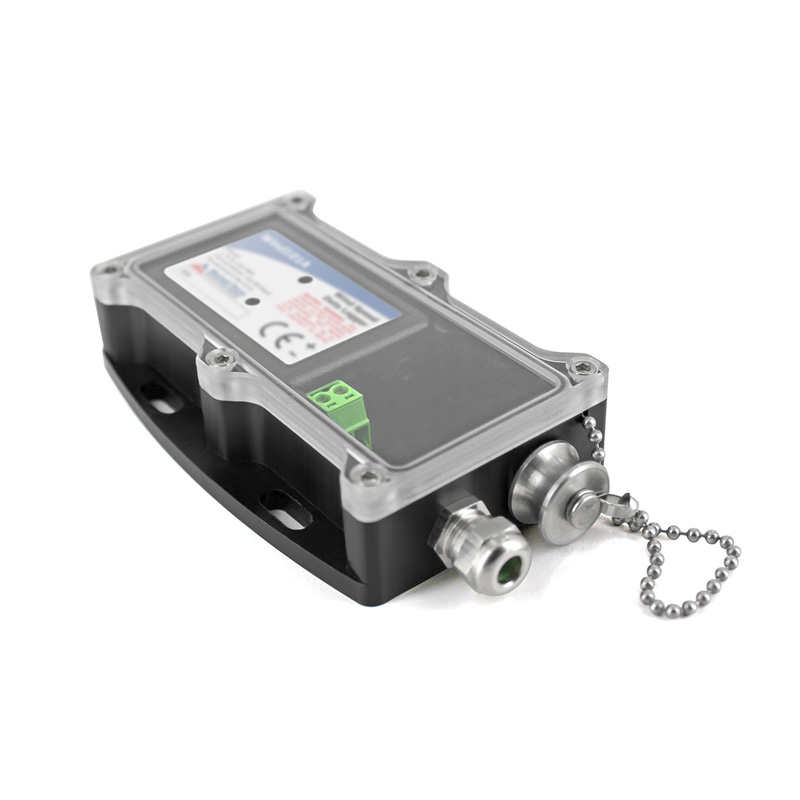

(1) Weather Proof Enclosure
(1) 3-Cup Anemometer with 25′ Cable
(1) IFC200: Interface Cable
The Wind101A is a data logging system for measuring and recording wind speeds up to 100 mph. This system can measure and record up to 1,032,192 readings and be programmed to start up to 18 months in advance.
Data from the Wind101A is retrieved using the IFC200 Data Logger Interface to download the data to the MadgeTech 4 Software. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MADGETECH-Wind101A Product User Guide.pdf
MADGETECH-Wind101A Specification Sheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | WIND101A |
| Memory | 1,032,192 readings |
| Baud Rate | 115,200 |
| LED Indicators | Red and Green |
| Push-Button Start | Yes |
| Battery Life | Dependent on frequency and duty cycle. 10 months typical at 25 °C and 10 second reading rate |
| Dimensions | Data Logger: 1.4 in x 2.5 in x 0.6 in (36 mm x 64 mm x 16 mm) |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 100 %RH |
| Wind | / |
| Gust Survival Speed | 214 mph (95 m/s) |
| Threshold Wind Speed | 1.75 mph (0.75 m/s) |
| Maximum Measurable Speed | 100 mph (contact factory about use at higher wind speeds) |
| Wind Resolution | 0.085 mph at a 10 second reading rate |
| Wind Accuracy | ±2 mph 0 to 10 mph, ±2.5 % of reading 10 to 100 mph |
| Rotation Diameter | 7.5 in (191 mm) |
| Mount | Accepts 0.5 in (13 mm) dia. Mast |
