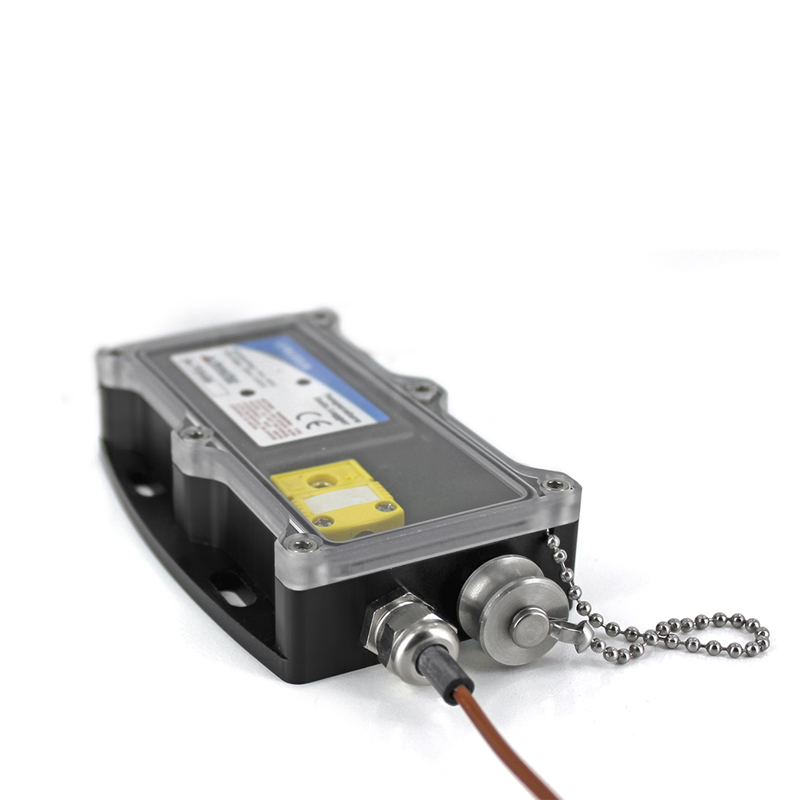

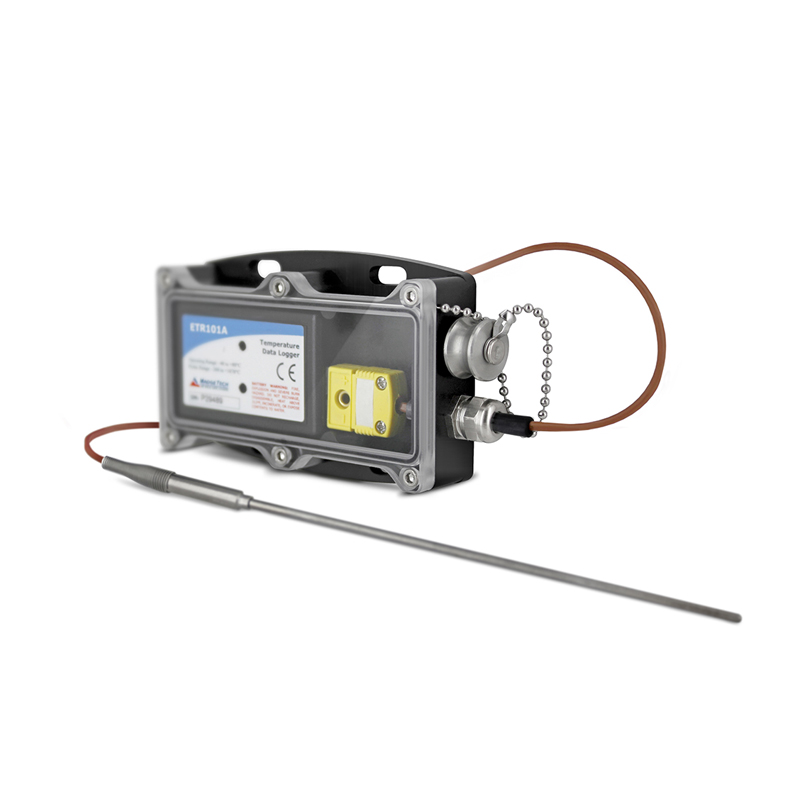

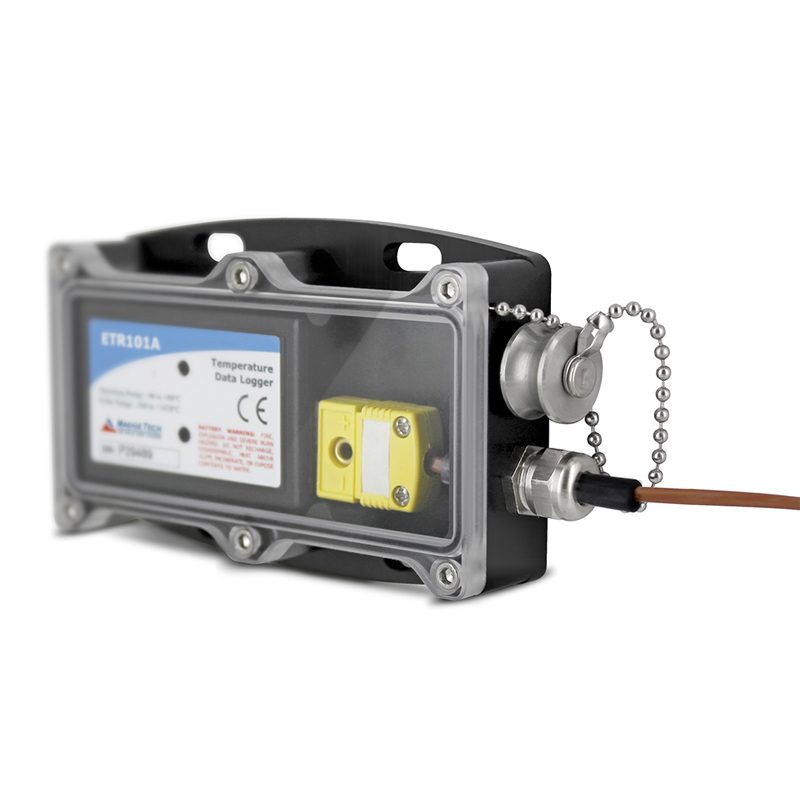

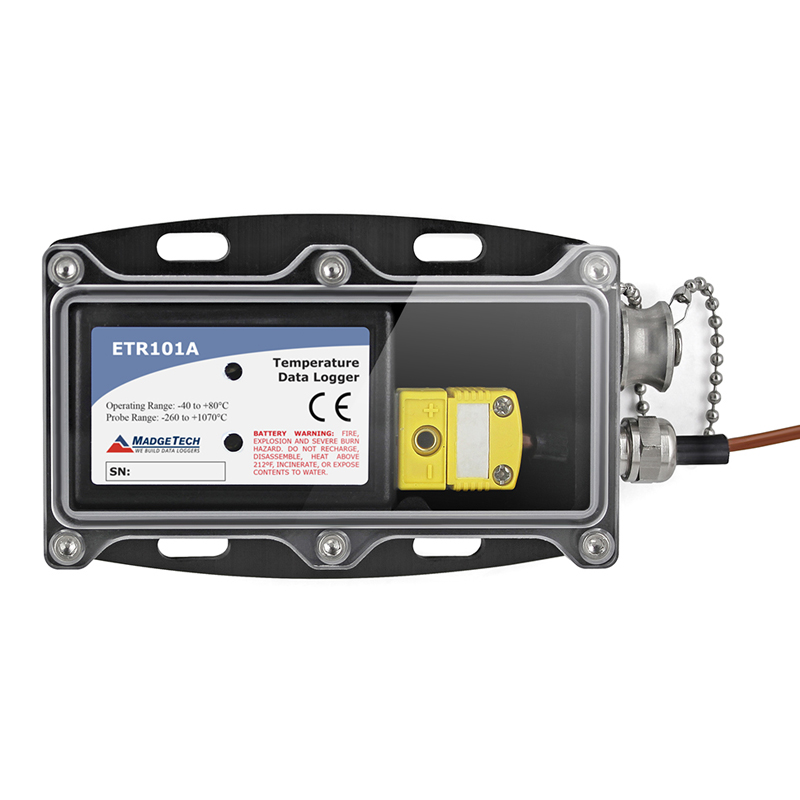

MADGETECH is a data logging system for exhaust temperature profiling. Includes standard calibration certificate.ETR101A
Key Features:
- TC101A Temperature Data Logger
- Type K Thermocouple
- IFC200 Data Logger Interface
- Weatherproof Enclosure
Availability: 5-7 Business Days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The ETR101A Includes:
(1) TC101A: Temperature Data Logger
(1) Type K Thermocouple
(1) IFC200: Data Logger Interface
(1) Weatherproof Enclosure
(1) Hex Screwdriver
(1) MadgeTech 4 Software
The ETR101A is a complete system designed to profile the exhaust temperature of on-road vehicles and off-road equipment. Once the temperature profile is created, its provided to the diesel particulate filter (DPF) manufacturer to aid in the selection of the correct DPF for the exhaust system.
Setup is simple and easy. Using the MadgeTech 4 Software, program the data logger for a set period of time then mount the logger (in its water resistant enclosure) to the vehicle. Data from the logger is then retrieved by using the IFC200 to download data to the MadgeTech 4 Software. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MADGETECH-ETR101A Product User Guide.pdf
MADGETECH-ETR101A Specification Sheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | ETR101A |
| Memory | 1,032,192 readings (all channels enabled) |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Cold Junction Compensation | Automatic |
| Channels | 1 Internal & 1 Remote |
| LED Indicators | Red and Green |
| Push-Button Start | Yes |
| Battery Life | 10 years typical, dependent upon frequency and duty cycle |
| Material | ABS plastic |
| Dimensions | 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm) |
| Operating Environment | -20 °C to 80 °C (-4 °F to +176 °F), 0 %RH to 100 %RH |
| Required Interface Package | IFC200 |
| Temperature | / |
| Temperature Sensor | Semiconductor |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Calibrated Accuracy | ±0.25 °C (±0.45 °F) |
| Remote Channel Temperature Sensor | Thermocouple Type K |
| Remote Channel Temperature Range | -260 °C to +899 °C (-436 °F to +1650.2 °F) |
| Remote Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Remote Channel Temperature Calibrated Accuracy | ±0.5 °C |
