MADGETECH is a compact, thermocouple-based temperature data logger. TC101A
Key Features:
- Compact Size
- Accepts a Variety of Thermocouples
- Available in 3 Thermocouple Connections
Availability: 5-7 Business Days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

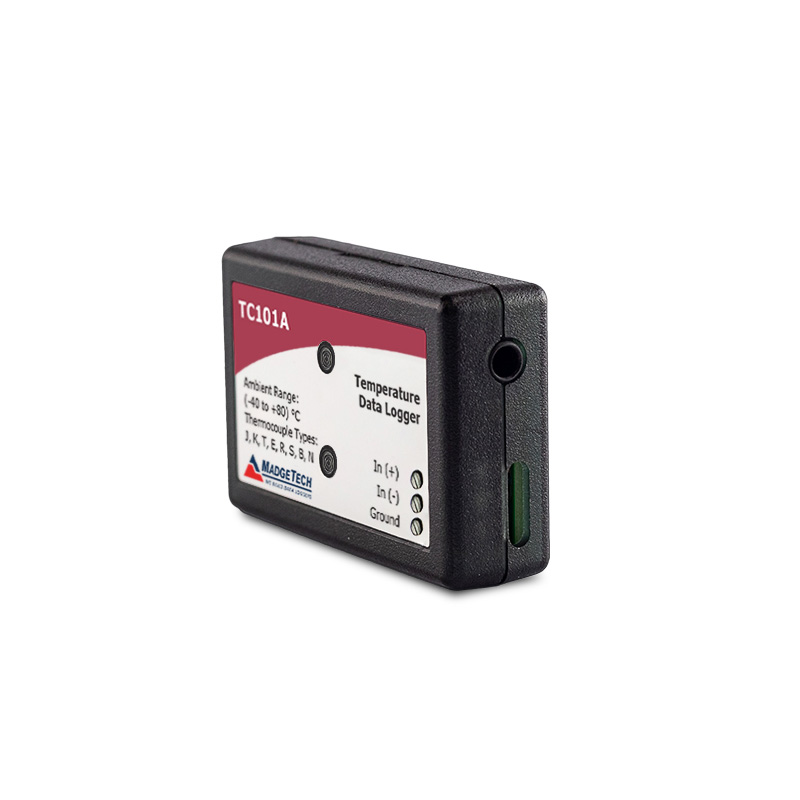

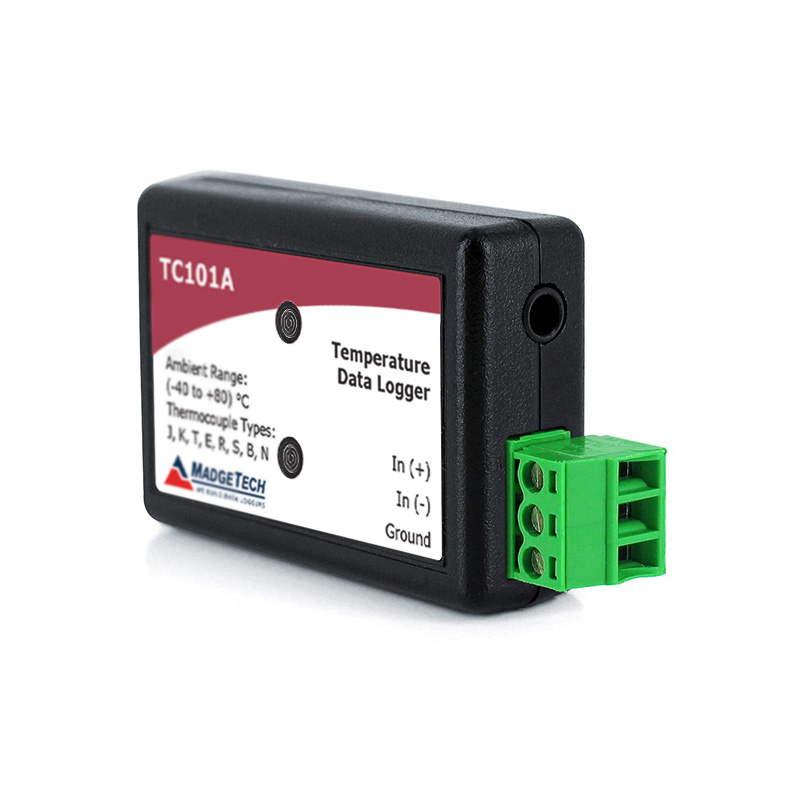

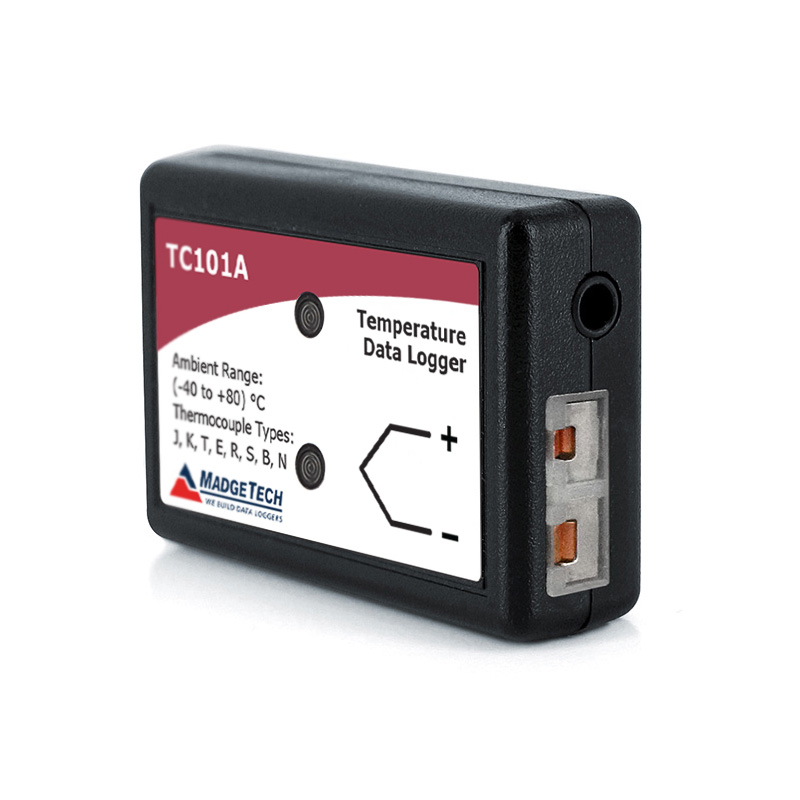

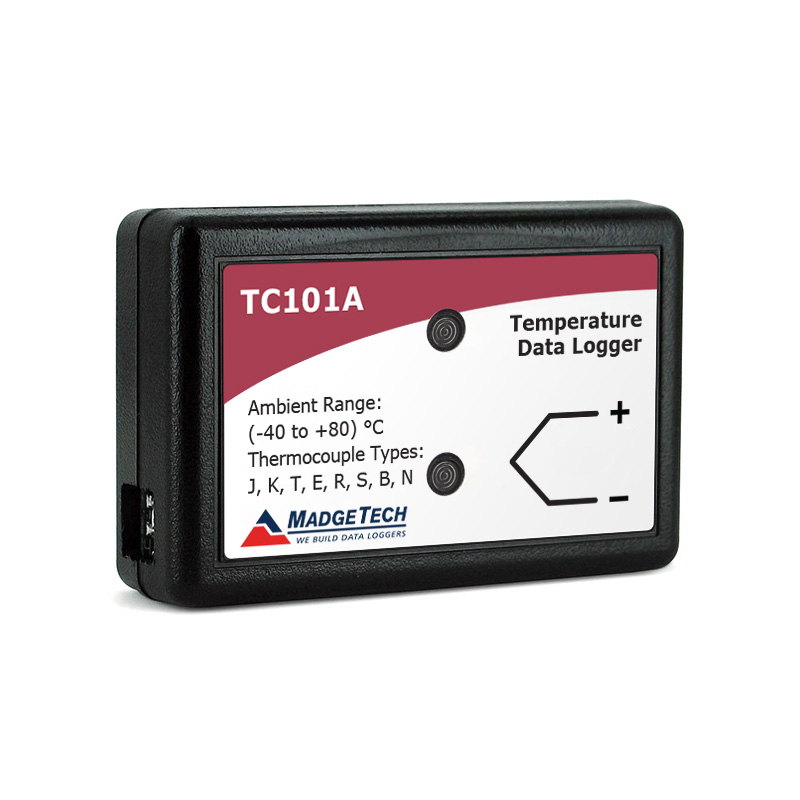

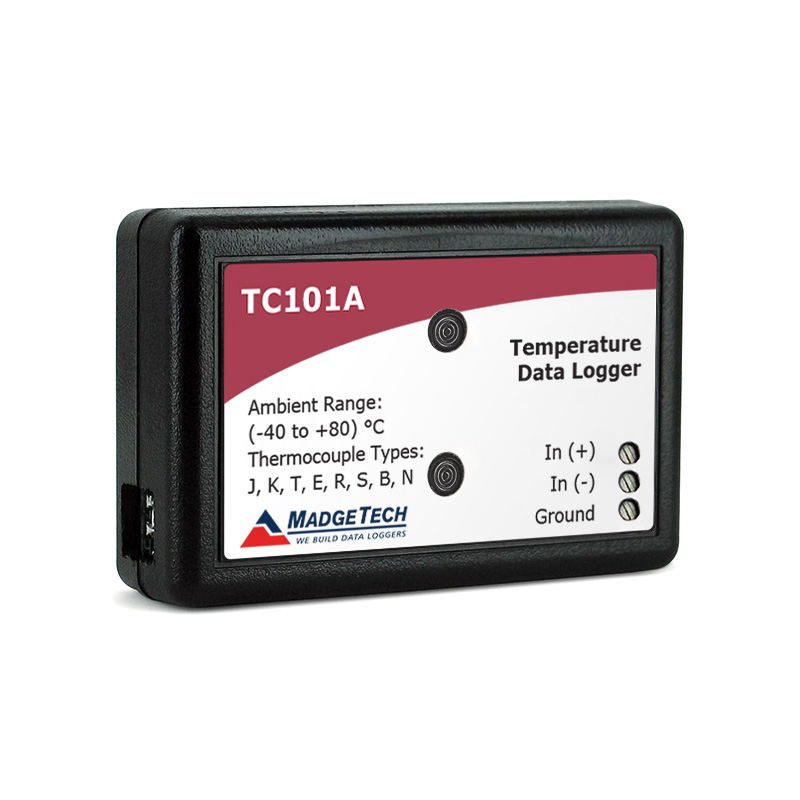

The TC101A is a compact, thermocouple-based temperature data logger. This device is available in three thermocouple connection options: mini plug, screw terminal, and terminal block.
Compatible with eight different types of thermocouple probes, the TC101A can measure temperatures as low as -270 °C, and up to as high as 1820 °C (probe dependent), with an environmental operating temperature range of -40 °C to +80 °C (-40 °F to +176 °F). The TC101A also features a 10-year battery life and a memory storage capacity of up to 838,041 readings.
The TC101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Thermocouple probe sold separately.
MADGETECH-TC101A Specification Sheet.pdf
MADGETECH-TC101A Product User Guide.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | TC101A |
| Memory | 838,041 readings |
| Reading Rate | 1 reading every second to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Cold Junction Compensation | Automatic |
| Channels | 1 Internal & 1 Remote |
| LED Indicators | Red & Green |
| Battery Life | 10 years typical at a 15 minute reading rate |
| Material | Polycarbonate |
| Dimensions | 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Temperature | / |
| Internal Channel Temperature Sensor | Semiconductor |
| Internal Channel Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Internal Channel Temperature Resolution | 0.01 °C (0.018 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
