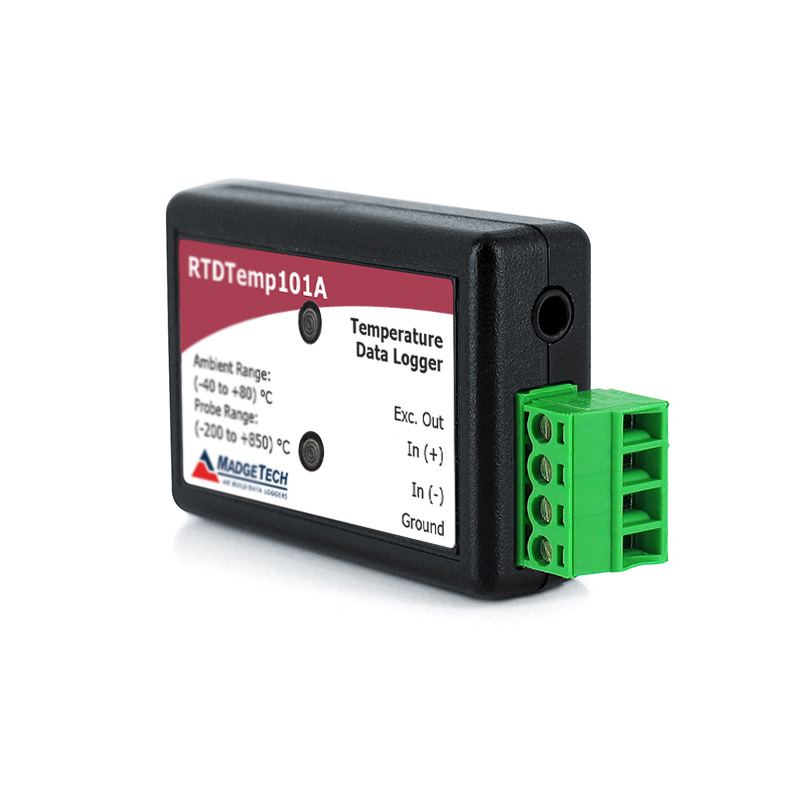

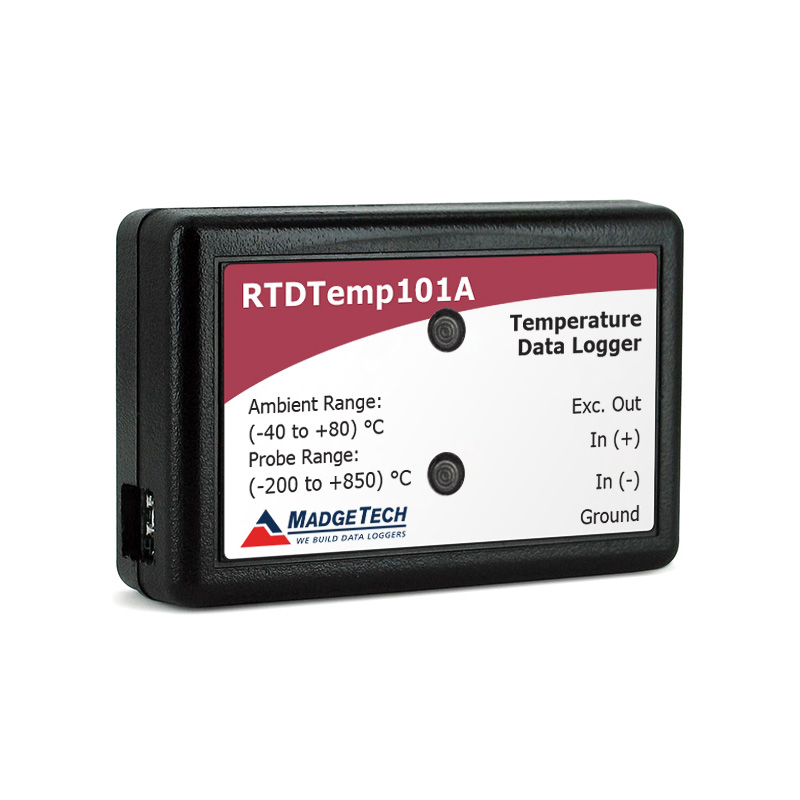

MADGETECH is a compact, RTD-based temperature data logger. RTDTemp101A
Key Features:
- Compact Size
- Configurable Alarm Limits

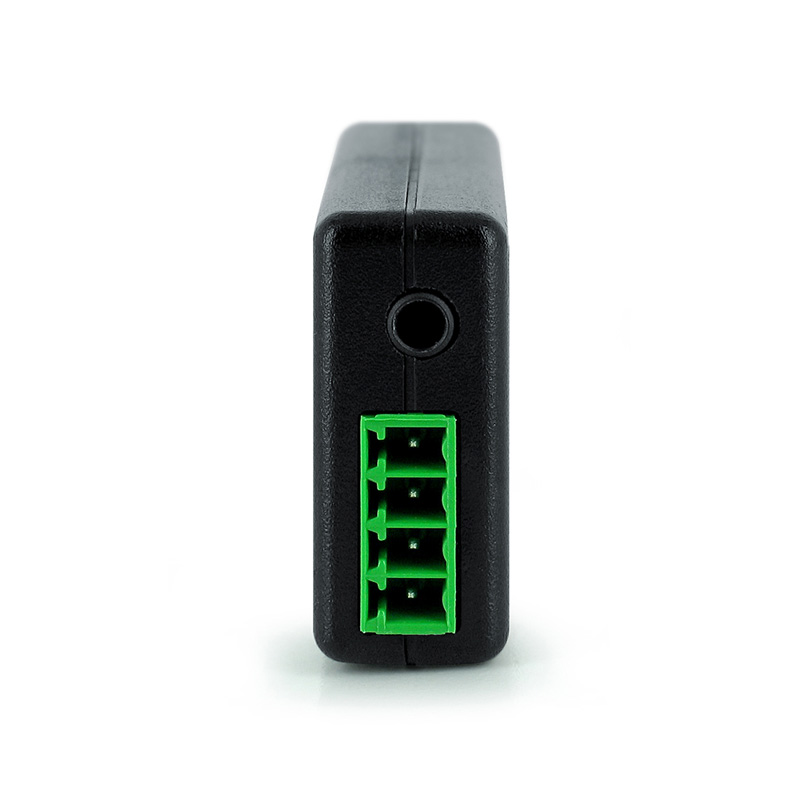

- Accepts 2, 3 or 4-wire External RTD Probe
Availability: 5-7 Business Days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The RTDTemp101A is an RTD-based temperature data logger with a compact design. When used with a 2, 3 or 4-wire external RTD probe, this device is capable of measuring temperatures from -200 °C to +850 °C (-328 °F to +1562 °F).
The RTDTemp101A features user-specified high/low alarm limits and can even be programmed to start up to 18 months in advance. With a 10-year battery life and the ability to store up to 1,396,736 time and date stamped readings.
The RTDTemp101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
RTD probes sold separately.
MADGETECH-RTDTemp101A Product User Guide.pdf
MADGETECH-RTDTemp101A Specification Sheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | RTDTEMP101A |
| Memory | 1,396,736 readings |
| Reading Rate | 1 reading every second to 1 reading every 24 hours |
| Alarm | Yes |
| Baud Rate | 115,200 |
| Channels | 1 |
| LED Indicators | Red & Green |
| Push-Button Start | Yes |
| Battery Life | 10 years typical at a 15 minute reading rate |
| Material | Polycarbonate |
| Dimensions | 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Temperature | / |
| Temperature Sensor | External 100 Ω RTD (Sold Separately) |
| Temperature Range | 18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent) |
| Temperature Resolution | 0.0001 Ω, 0.01 °C (0.018 °F) (Probe Dependent) |
| Temperature Calibrated Accuracy | ±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent) Calibrated Accuracy Range: *18 Ω to 200 Ω, -200 °C to +265 °C |
