MADGETECH – is a compact, low level DC current data logger. Includes standard calibration certificate.PROCESS101A
Key Features:
- Compact Size
- Configurable Alarms
- Available in 3 Measurement Ranges
Availability: 5-7 Business Days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

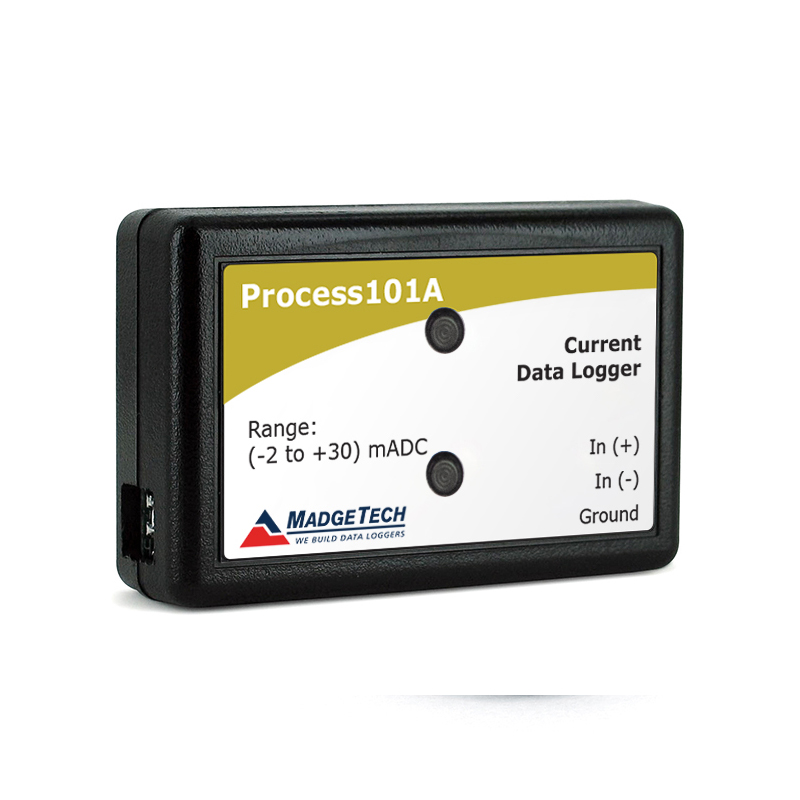

The Process101A is a compact data logger that measures and records low-level DC currents. Available in 3 measurement ranges (30 mA, ±160 mA and ±3 A), the Process101A offers a 10-year battery life, ideal for long-term deployments.

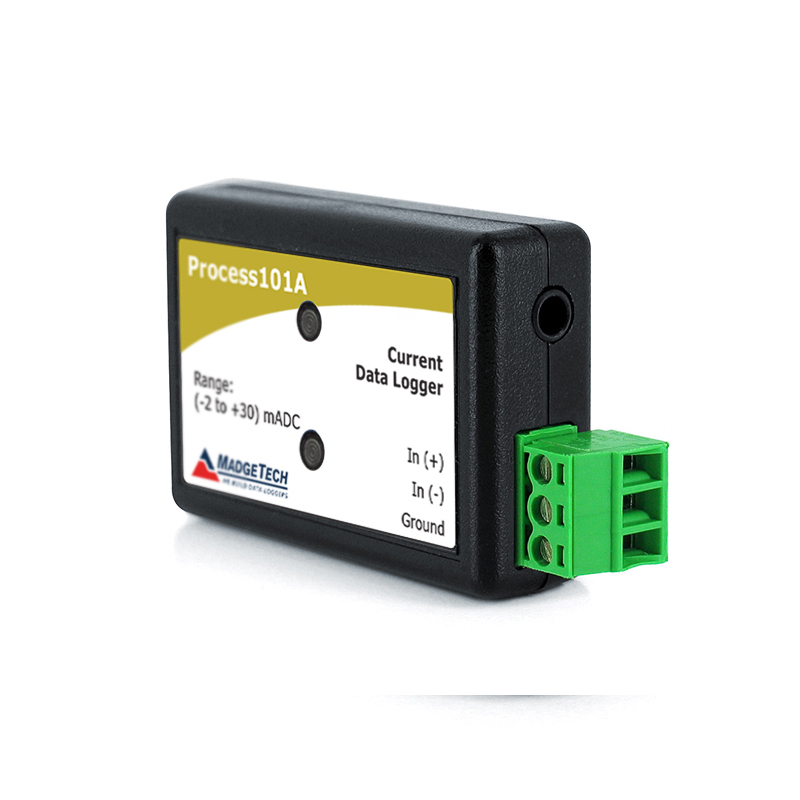

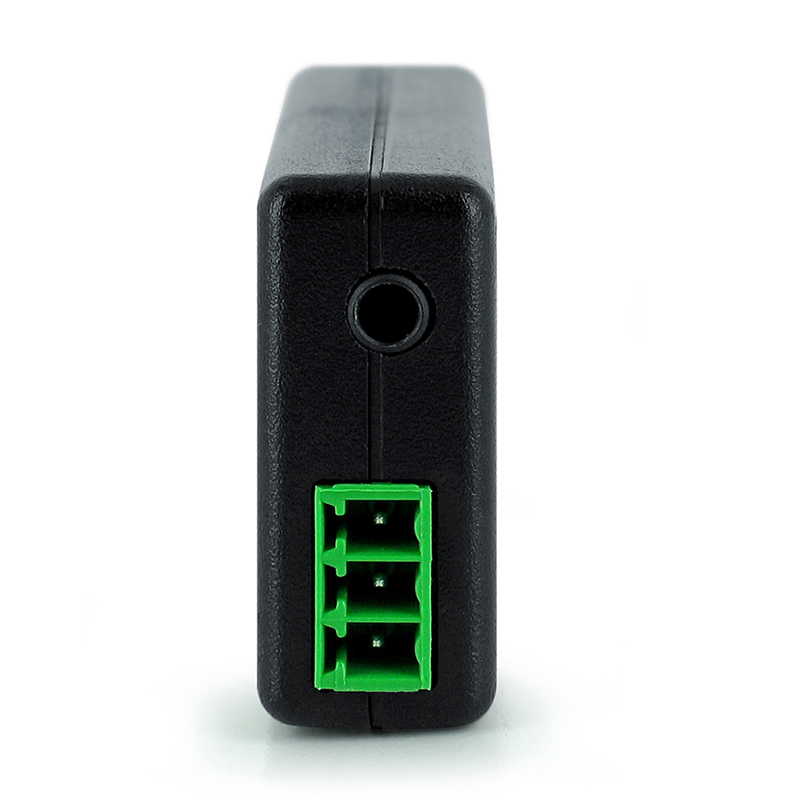

The Process101A features a 4 Hz reading rate and storage capacity of 2,095,104 readings. Equipped with multiple start/stop modes, the Process101A can be programmed to start up to 18 months in advance and has user-specified high/low alarms. Its screw terminal block is designed to easily connect and disconnect to the logger body, while keeping the wiring to the terminal block.
The Process101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MADGETECH-Process101A Specification Sheet.pdf
MADGETECH-Process101A Product User Guide.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | PROCESS101A |
| Memory | 2,095,104 readings |
| Reading Rate | 4 Hz to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Channels | 1 |
| LED Indicators | Red & Green |
| Battery Life | 10 year battery life typical, at a 15 minute reading rate |
| Material | Polycarbonate |
| Dimensions | 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Current | / |
| Current Range | 30 mA: -2 to 30mA |
| Max Voltage: Inputs & Ground | 0 to 2.5 V |
| Current Resolution | 30 mA: 0.5 μA |
| Current Calibrate Accuracy | 30 mA, 160 mA: ±0.05 %FSR |
| Current Input Impedance | 30 mA: 10 Ω, ±1% |
