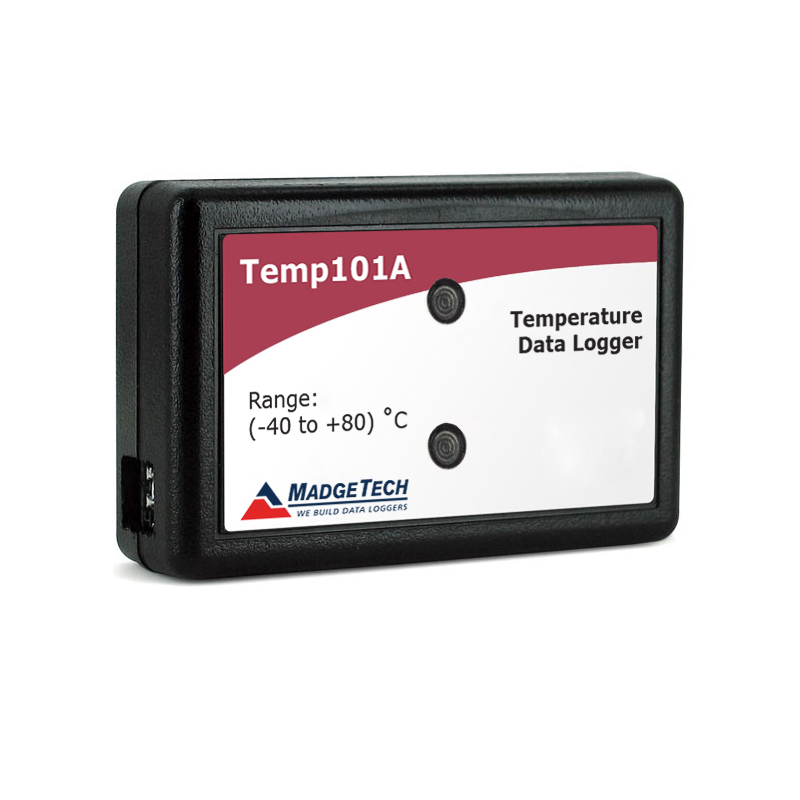

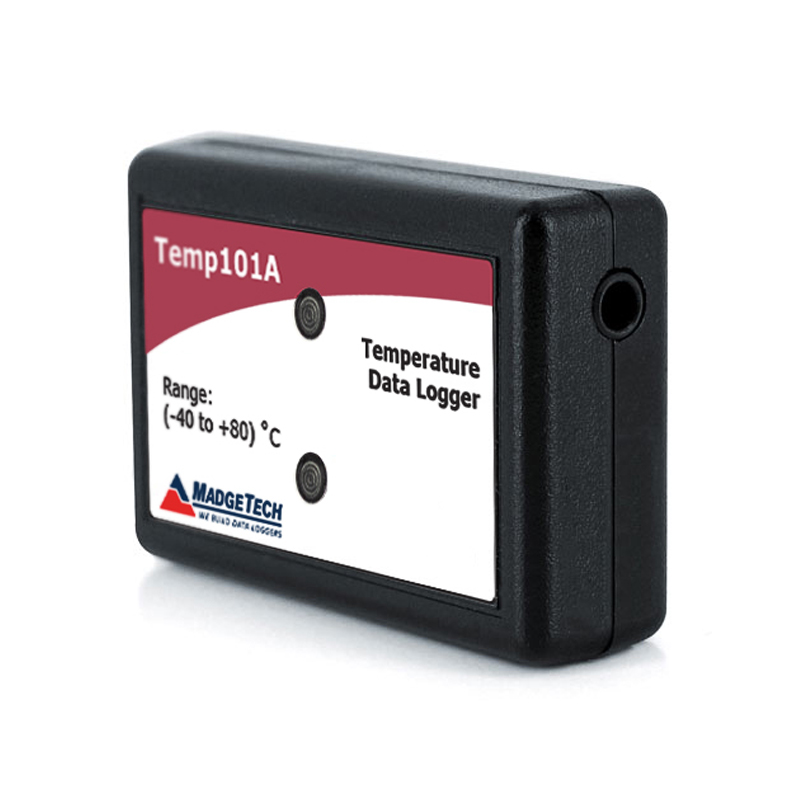

MADGETECH- is a compact, general purpose, temperature data logger. TEMP101A
Key Features:
- Compact Size
- 10-Year Battery Life
- Programmable Alarm Limits
- .01 °C (.018 °F) Resolution
- Precision RTD Sensing Element
- Memory Capacity of 2,000,000+ Readings
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The Temp101A is a compact temperature data logger. This device can measure and record temperatures from -40 °C to 80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C.
The Temp101A features user-specified high/low alarm limits and can even be programmed to start up to 18 months in advance. With a 10-year battery life and the ability to store up to 2,095,104 time and date stamped readings, the Temp101A is perfect for long-term studies.
The Temp101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MADGETECH-Temp101A Product User Guide.pdf
MADGETECH-Temp101A Specification Sheet.pdf
Additional information
| Memory | 2,095,104 readings |
|---|---|
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Alarm | Yes |
| Baud Rate | 115,200 |
| LED Indicators | Red & Green |
| Push-Button Start | Yes |
| Single/Multi-Use | Multi-use |
| Battery Life | 10 years typical at a 15 minute reading rate |
| Material | Polycarbonate |
| Dimensions | 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Temperature | / |
| Temperature Sensor | Precision RTD Element |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C (±0.9 °F) from -5 °C to 55 °C (23 °F to +131 °F) |
