MADGETECH humidity and temperature data logger carries hazardous location certification (ATEX, IECEx).RHTemp1000Ex
Key Features:
- Compact Size
- ATEX Approved
- Measures Temperatures from -40 °C to 80 °C
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

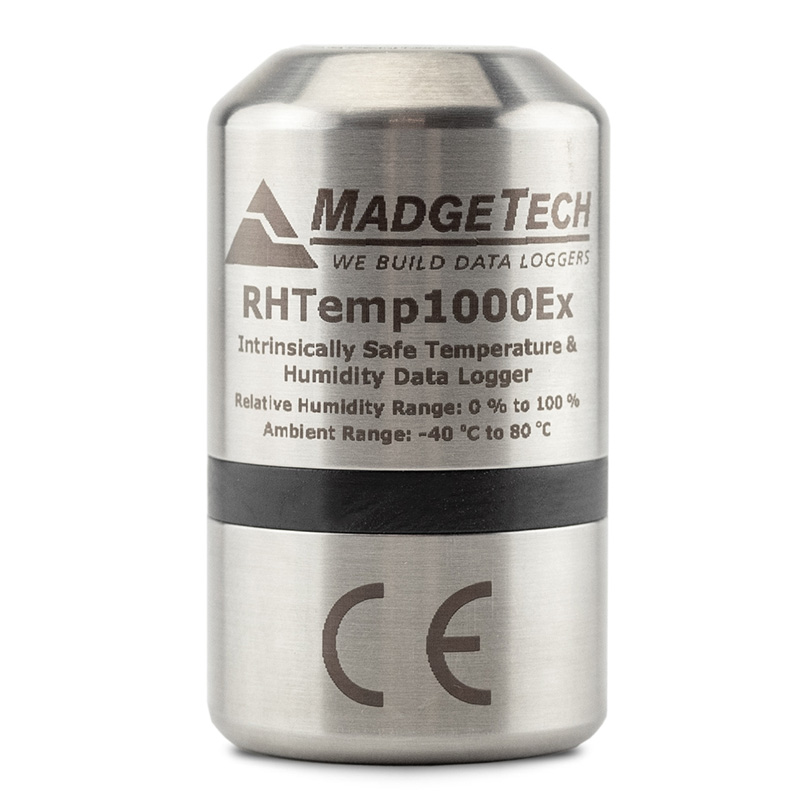

The RHTemp1000Ex is a compact, humidity and temperature data logger that carries hazardous location certification (ATEX, IECEx).
This one of a kind data logger is certified intrinsically safe for the following:
- Electrical Protection Concepts: ISO/IEC: 60079-11 Ex ia – Ex ic, Intrinsic Safety Zones 0-2
- Equipment Protection Level: Ga – Gc, Zones 0-2
- Gas Group: IIC
- Temperature Class: T4
This device measures and records temperatures from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C (0 °C to ±50 °C) and ±0.9 °F (32 °F to 122 °F). The RHTemp1000Ex can store up to 32,767 time and date stamped readings, and is able to be programmed to start up to 24 months in advance.
The RHTemp1000Ex is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MADGETECH-RHTemp1000Ex Product User Guide.pdf
MADGETECH-RHTemp1000Ex Specification Sheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | RHTEMP1000EX |
| Memory | 32,767 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Battery Life | 2 years typical at 15 minute reading rate |
| Material | 316 Stainless Steel/Radel |
| Dimensions | 1.67 in x 0.97 in dia. (42.3 mm x 24.6 mm dia.) |
| IP Rating | (Not Rated) Caution: Do not submerge this product to retain IS rating. |
| Operating Environment | -40 ºC to +80 ºC (-40 °F to +176 °F) |
| Required Interface Package | IFC400 or IFC406 |
| Approvals | CE |
| Temperature | / |
| Temperature Sensor | Resistance Temperature Detector (RTD) |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C (0 °C to ±50 °C), ±0.9 °F (32 °F to 122 °F) |
| Humidity | / |
| Humidity Sensor | Capacitive Polymer |
| Humidity Range | 0 %RH to 100 %RH (non-condensing) |
| Humidity Resolution | 0.1 %RH |
| Humidity Calibrated Accuracy | ±3 %RH maximum |
| Humidity Specified Accuracy Range | 25 %RH to 75 %RH |
