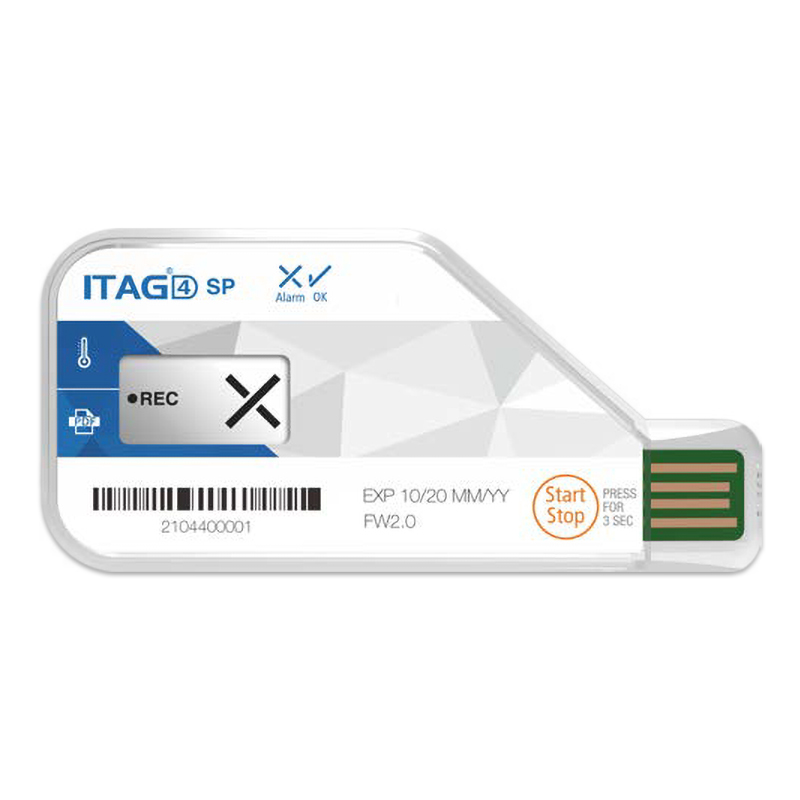

ITAG®4 BIO Disposable USB PDF Temperature Logger
$1,729.00 – $26,600.00
• Compliance with WHO PQS guidelines
• Reliable quality to ensure the safety of your goods’ cold chain data
• Software-free cold chain monitoring solution throughout the process, no need for software to set up the recorder and download the data
Lightweight, can be applied to any temperature-controlled packaging and containers

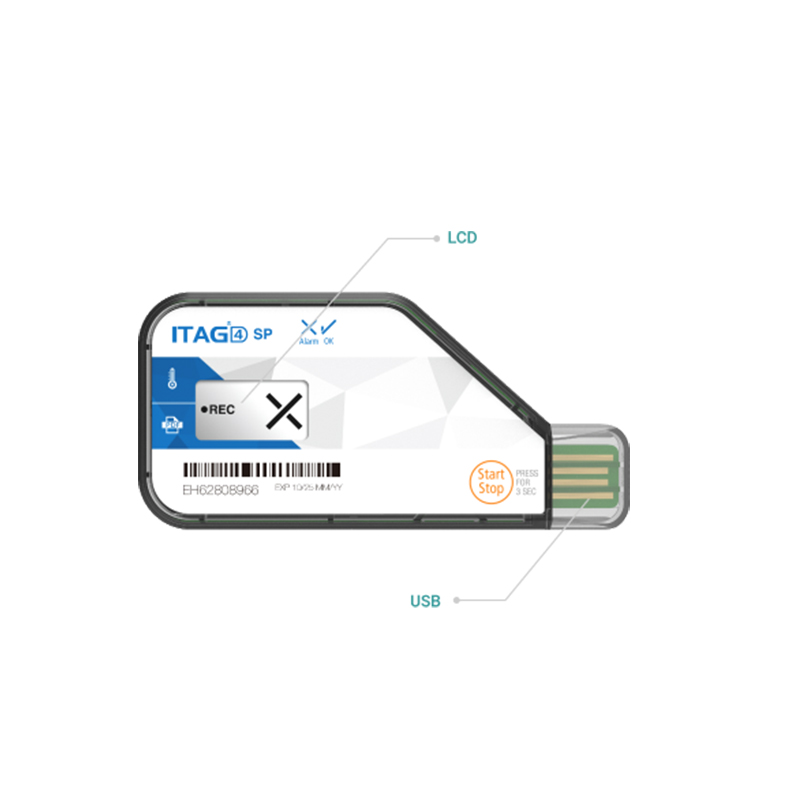

• LCD can display operation, alarm status and statistics
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Encrypted PDF data with embedded original data.
Automatically generate encrypted PDF data reports, without the need for software and other accessories to download data. PDF reports cover data summaries, record statistics, data graphs, and data detail list pages. Embedded standard format original data sources help users extract and import data into TempSen Cloud or third-party Enterprise Resource Planning.
Free software settings
Support fast online setup, no need to install any software or drivers, cross-platform compatibility
Multiple alarm areas
Support 6-zone temperature alarm to provide you with more accurate temperature overrun statistics
Comply with air cargo safety regulations
Compliant with IATA PI970 II and RTCA/DO-160G standards, you can safely use this recorder in air transportation.
TempSen_Cold_Chain_Data_Loggers_Catalogue_2018V1.pdf
TempSen_ITAG4_Bio_Data_Sheet.pdf
TempSen_ITAG4_Quick_Guide.pdf
Additional information
| Type | Single Use |
|---|---|
| Sensor | Internal NTC |
| Memory Capacity | 7200 readings |
| Measurement Range | -30°C…70°C |
| Accuracy | ±0.3°C (-20°C…20°C), ±0.5°C (other range) |
| Resolution | 0.1°C / °F |
| Start Mode | Manual / Auto start |
| Logging Interval | 1 minute…2 hours |
| Alarm Range | 3 high alarm and 2 low alarm ranges |
| Battery | 3.0V CR2032 lithium battery |
| Run Time | 60 days |
| Shelf Life | 2 years (1 year if activated) |
| Display | LCD |
| Connection | USB 2.0 Connector |
| Automatic Data File | Encrypted PDF report with embedded raw data |
| Software | TempCentre (21 CFR 11 compliant) |
| Calibration | Factory Sampling 6-point Calibration (AQL 0.25) |
| Certifications | CE, EN12830, WHO pre-qualified (PQS Code |
| Dimensions | 93mm L x 45mm W x 7mm H |
| Weight | Approx. 25g |
| Packaging/Material | Case / Polycarbonate |
| Protection Class | IP65 |
| Number | 100Pcs, 10Pcs, 50Pcs, 5Pcs |
