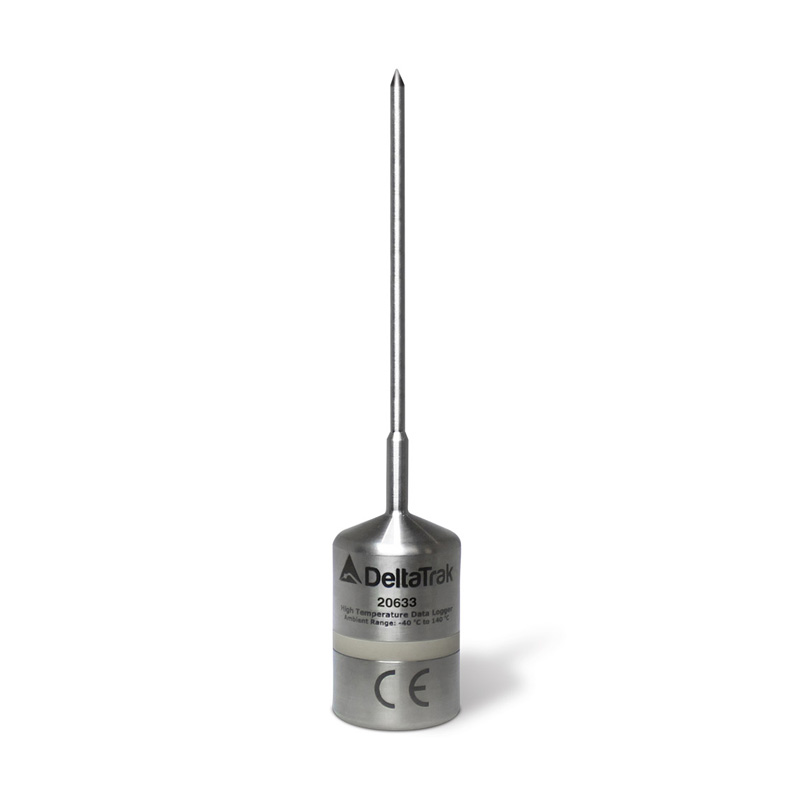

DeltaTrak.High Temp Stainless Steel Data Logger with External Probe-20633
Rigid external probe, fast response time
• Highly accurate over wide measurement range
• N.I.S.T. traceable calibration
• Rugged, submersible, for use in harsh environments
• Non-volatile solid state memory for maximum data security
• User replaceable battery
• Easy to program and download
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Applications: Extreme High & Low Temperature Monitoring, Wet Environments, Autoclave Validation, Food Processing (Pasteurization, Flash Freezing, Chill Blast Operations)
The High Temp Stainless Steel Data Logger with External Probe is a rugged, high precision unit that requires minimal maintenance. It is easy to program, install and download. The non-volatile memory stores up to 65,536 data points, making it ideal for long term field deployment.
This reusable, compact logger is designed for extreme high and low temperature monitoring applications. It works well in wet environments such as retort sterilization, autoclave validation, and is also for HACCP programs, food processing, pasteurization, flash freezing and chill blast operations. Its rigid external probe has fast response time, with a platinum RTD sensor for highly accurate readings. The battery life indicator lets users know when to change the battery. Delta Manager is a multi-lingual software used to program logging parameters, starting and stopping the unit. Data is reported graphically and in table format, with summary analysis; it also exports to Excel for further calculations.
DeltaTrak.20633-datasheet.pdf
Additional information
| Brand | DeltaTrak. |
|---|---|
| Model | 20633 |
| Probe Measurement Range | -328°F to 500°F (-200°C to 260°C) |
| Logger Operating Range | -40°F to 284°F (-40°C to 140°C), 0 to 100% R.H |
| Sensor | 100Ω Platinum RTD |
| Temperature Resolution | 0.02°F /0.01°C |
| Accuracy | ±0.18°F (±0.1°C) from 68°F to 284°F (20°C to 140°C) |
| Reading Interval | 1 reading every 1 second to 1 every 24 hours, user |
| Data Capacity | 65,536 points |
| Calibration | NIST traceable |
| Battery | 3.6V high-temperature lithium battery, 1 year |
| Body Dimensions | 1.9in H x 0.97in dia. |
| Probe Dimensions | 5.25in L x 0.125in dia (0.188in transitional diameter) |
| Weight | 4.2 oz (120 grams) |
| Material | 316 Stainless steel |
| Certification | CE mark |
| Waterproof Level | IP68 |
| System Requirements | Windows XP SP3 or later |
| Programming and Download Requirements | Delta Manager Software Package with USB |
| / | BATTERY WARNING: FIRE, EXPLOSION AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, |
