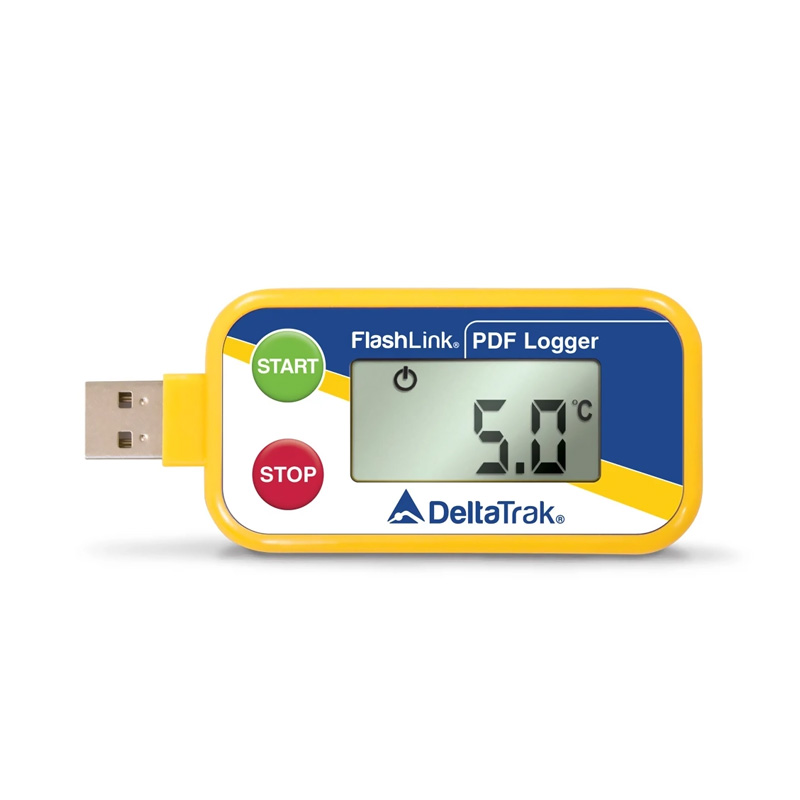

DeltaTrak FlashLink. USB PDFReusable Data Logger 40516
- Single channel, internal sensor
- 16K data points, non-volatile memory
- -40°F/°C to 116°F/47°C measurement range
- Automatically generates PDF report and CSV file
- Ideal for monitoring ambient temperature
- User programmable: manual or auto start, logging intervals, high/low alarms
- Large easy-to-read LCD
- Multi-language FlashLink Program Manager software
- Summary analysis of data, with alarm information
- Degree Minutes and MKT calculations
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Applications: Produce, Prepared Foods, Pharmaceuticals, Chemicals, Storage Units, Refrigerators
This reusable logger monitors ambient temperature in facilities, transport vehicles, storage and processing areas. It provides reports that are used for various applications, such as process or equipment verification and validation, thermal mapping, and regulatory compliance. Data is analyzed to identify trends and patterns, then used to improve management practices in areas such as processing and cold chain logistics. The PDF reports can be archived for record keeping, audits, and to comply with HACCP, FSMA and other regulatory requirements.
A built-in USB connector makes it easy to program and download the logger without special reading devices. FlashLink Program Manager software allows users to configure logging parameters, such as sample intervals, high/low alarm limits, automatic or manual start, and alarm delay. PDF reports display temperature history as a graph with summary analytics, as well as in table format. The unique feature of this unit is the on-board software, making it a plug-and-play logger allowing personnel in the field quick access to temperature reports. Data can be downloaded to a PC or tablet with USB port, without needing to install FlashLink Program Manager software on additional computers.
DeltaTrak.40516-datasheet.pdf
Additional information
| Brand | DeltaTrak |
|---|---|
| Model | 40516 |
| Measurement Range | -40°F to 116°F (-40°C to 47°C) |
| Temperature Resolution | 0.1°C over full temperature measurement range |
| Accuracy | ±0.5°C from 0°C to 25°C |
| Data Capacity | 16,000 data points |
| Data Download Time | 5 seconds typical for 3823 points |
| Factory Programmable Alarm Levels | High & Low levels over entire range, displayed on LCD |
| Battery | 2 x AAA Lithium batteries, user replaceable |
| Dimensions | 1.57" x 3.67" x 0.94" (40mm x 93.5 mm x 24mm) |
| Casing | PC/ABS plastic |
| Weight | 1.9 oz. (54 grams) |
| Shock Resistance | Withstands 3-foot (1 meter) drop to hard surface |
| Certification | CE Mark, NIST traceable, ROHS Compliant, |
| FAA Compliance | RTCA/DO-160 |
| Display | Red LED Alarm |
| IP Rating | IP54 (with silicon cap on) |
| Storage conditions | -4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o |
| System Requirements | Windows PC with current operating system |
| Programming | FlashLink Program Manager Software |
| Download Requirements | Direct USB connection |
