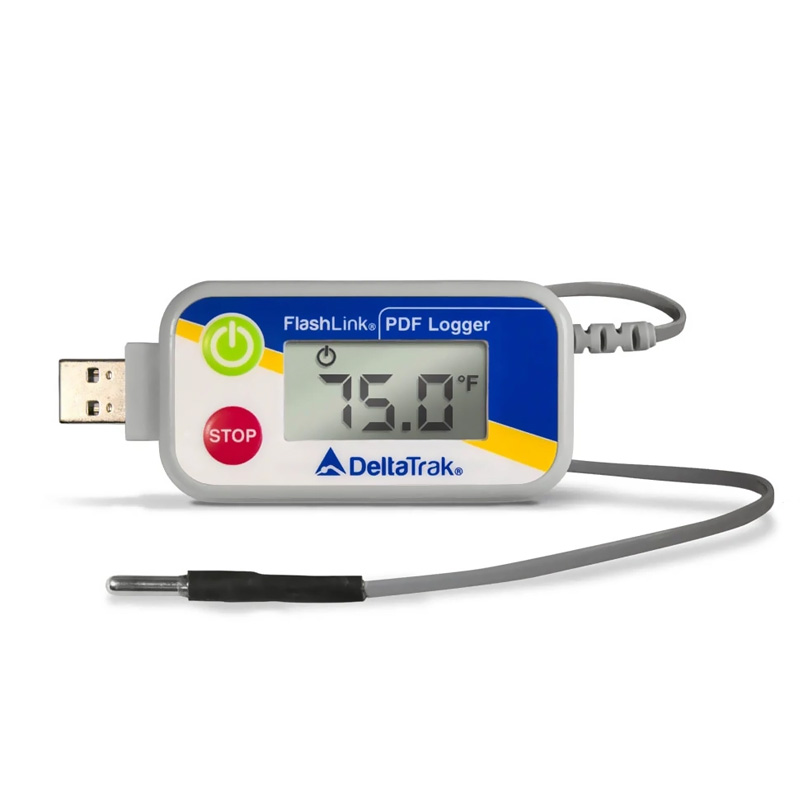

DeltaTrak.FlashLink® USB PDF Reusable Data Logger with External Blunt Tip Probe-40520
- Single channel, external blunt probe
- Automatically generates PDF report and CSV file
- Ideal for monitoring internal temperature of products
- User programmable: manual or auto start, logging intervals, high/low alarms
- Large easy-to-read LCD
- Multi-language FlashLink Program Manager software
- Summary analysis of data, with alarm information
- Degree Minutes and MKT calculations
- Low battery indicator on LCD
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Applications: Produce, Prepared Foods, Pharmaceuticals, Chemicals, Storage Units, Refrigerators
This reusable logger features a blunt tip probe for monitoring internal product temperature in facilities, transport vehicles, storage and processing areas. It provides reports that are used for various applications, such as process or equipment verification and validation, thermal mapping, and regulatory compliance. Data is analyzed to identify trends and patterns, then used to improve management practices in areas such as processing and cold chain logistics. The PDF reports can be archived for record keeping, audits, and to comply with HACCP, FSMA and other regulatory requirements.
A built-in USB connector makes it easy to program and download the logger without special reading devices. FlashLink Program Manager software allows users to configure logging parameters, such as sample intervals, high/low alarm limits, automatic or manual start, and alarm delay. PDF reports display temperature history as a graph with summary analytics, as well as in table format. The unique feature of this unit is the on-board software, making it a plug-and-play logger allowing personnel in the field quick access to temperature reports. Data can be downloaded to a PC or tablet with USB port, without needing to install FlashLink Program Manager software on additional computers.
DeltaTrak.40520-datasheet.pdf
Additional information
| Brand | DeltaTrak. |
|---|---|
| Model | 40520 |
| Probe Measurement Range | -40°F to 185°F (-40°C to 85°C) |
| Operating Range | -40°F to 122°F (-20°C to 50°C) |
| Temperature Resolution | 0.1°F/°C |
| Accuracy | ±1.0°F from 14°F to 77°F (±0.5°C from -10°C to 25°C); |
| Data Capacity | 32,496 points |
| Data Download Time | 5 seconds typical for 3823 points |
| Programmable Alarm Levels | High & Low levels over entire range displayed on LCD |
| Battery | Two AAA Lithium batteries, LCD % remaining power |
| Dimensions/Body | 1.575" x 3.66" x 0.94" |
| Casing | ABS plastic |
| Probe Size | 0.15in Dia x 0.98in L (3.8mm Dia x 25mm L), |
| Weight | 2.56 oz (72.57 grams) |
| Certification | CE Mark, NIST traceable, RoHS Compliant |
| FAA Compliance | RTCA/DO-160 |
| Display | LCD, Red LED Alarm |
| Waterproof Rating | IP64 with silicon cap on |
| Storage conditions | -4°F to 122°F (-20°C to 50°C) 0% to 95% RH |
| System Requirements | Windows PC with current operating system, |
| Programming | FlashLink Program Manager software |
| Download Requirements | Direct USB connection to PC |
