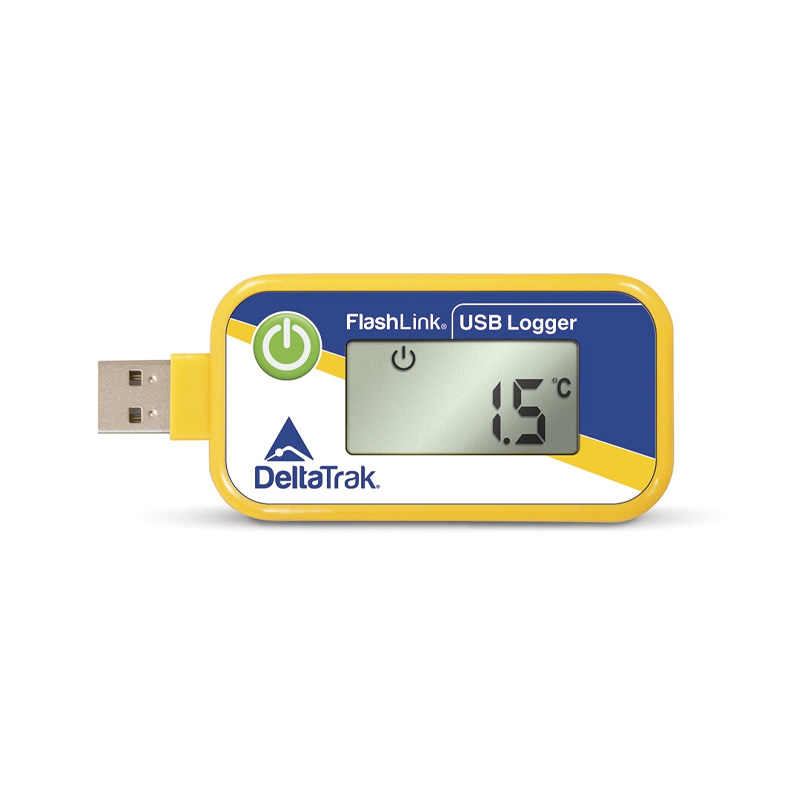

DeltaTrak.FlashLink® USB PDF Reusable Data Logger Single Internal Sensor-20930
- Single channel, internal sensor for ambient air temperature
- User Programmable: sample interval, alarm limits, data tags
- Large, easy to read LCD display
- Trip history statistics available on LCD
- NIST traceable and CE Mark
- USB Connection
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Applications: Produce, Prepared Foods, Pharmaceuticals, Chemicals, Storage Units, Refrigerators
The FlashLink® USB Reusable Data Logger can monitor temperature sensitive commodities in storage facilities, processing environments and during transportation. The built-in USB connector allows for easy programming of logging parameters and downloading recorded data to a PC. Users can configure sample intervals, high and low alarm limits, skip alarm, alarm delay, record data in loop mode or to stop when memory is full. Downloaded temperature history is displayed as a PDF with a graph and summary data, including highest and lowest temperatures, average temperature, time spent in alarm, degree minutes and MKT calculations, and when the unit was started, stopped, and downloaded. Tabular data and CSV files are also generated by the software, showing details for each data point.
This data logger is an important tool for monitoring ambient air in temperature-controlled environments, such as cold storage warehouses, distribution centers, processing areas and in delivery vehicles. It provides valuable temperature history used for making cold chain management decisions, as well as for validation, thermalmapping, and documentation required for audits, inspections, and regulatory compliance. FlashLink Program Manager Software downloads reports as PDF and CSV files, which are easily shared by email and archived.
DeltaTrak.20930-datasheet.pdf
Additional information
| Brand | DeltaTrak. |
|---|---|
| Model | 20930 |
| Measurement Range | -40°F to 122°F (-40°C to 50°C) |
| Temperature Resolution | 0.1°F/°C |
| Accuracy | ±1.0°F from 14°F to 77°F (±0.5°C from -10°C to 25°C); |
| Data Capacity | 3823 points |
| Data Download Time | 2 seconds typical for 3823 points |
| Programmable Alarm Levels | High & Low levels over entire range, displayed on |
| Battery | Coin cell lithium battery |
| Dimensions/Body | 1.575in x 3.189in x .575in (40mm x 81mm x 13mm) |
| Casing | PC/ABS plastic |
| Weight | 1.3 oz. (36 grams) |
| Shock Resistance | Withstands 3-foot (1 meter) drop to hard surface |
| Certification | CE Mark, NIST traceable, RoHS Compliant |
| Display | LCD, Red LED Alarm |
| Waterproof Rating | IP64 with silicon cap on |
| Storage conditions | -4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o |
| System Requirements | Windows PC with current operating system |
| Programming | FlashLink Program Manager software |
| Download Requirements | Direct USB connection |
