DeltaTrak.FlashLink® RTL Prime 2G In-Transit Logger-22330
- Global cellular network real-time loggers
- Monitors location, temperature and light
- Proactively manage shipment conditions to reduce the risk of product loss due temperature excursions
- FlashTrak Cloud Service platform offers different levels of access to optimize user experience and API integration into customer systems. FlashTrak receiver program allows shippers to share access to alerts and shipment conditions
- USB option for downloading data and access to PDF reporting of trip details should communications not be available
- Light sensors alert you to unplanned shipment entries which helps reduce and avert potential product theft during transportation
- Airline and Maritime options ensure access to all trip data can be accessed and reported completely when transmissions allow
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Applications: Real-time monitoring of local and export shipments, trip duration up to 60 days.

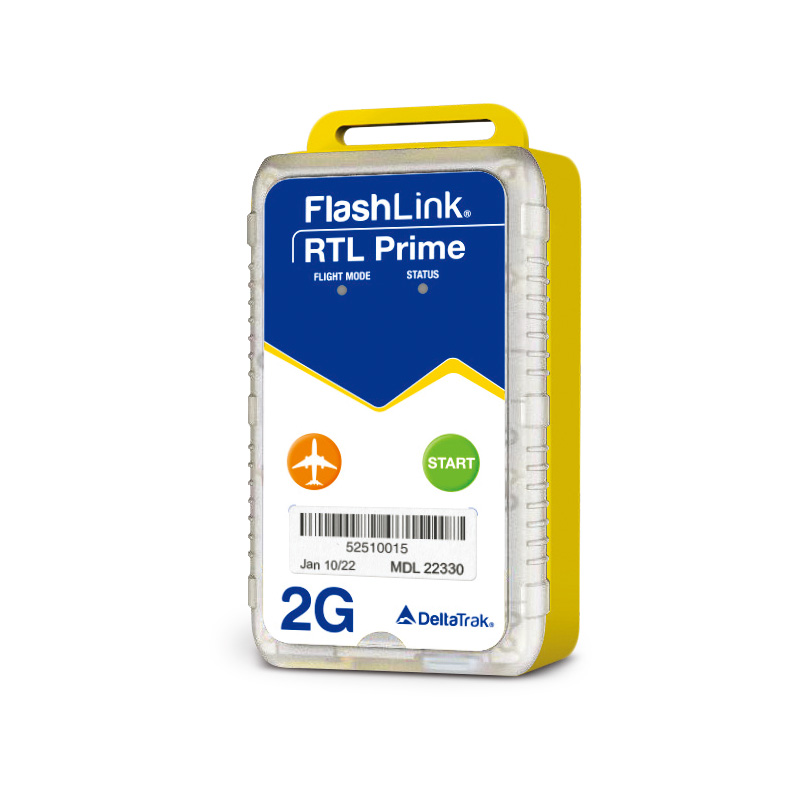

The FlashLink RTL Prime 2G In-Transit Logger monitors and reports temperature, location and light during transport of temperature sensitive products. It is ideal for local area deliveries and intercompany transfers. Tracking routes is easy with a user-friendly online dashboard to remotely access real-time information and conditions in a truck or container, even before a shipment reaches the dock.
This 2-in-1 logger provides reports that are downloadable from the web application, plus an on-board PDF file as a backup, so receivers have immediate access to trip data if there’s no cellular service when a load arrives. Other beneficial features include 12-month battery shelf life and Flight Mode feature, which allows shippers to temporarily disable transmission during air shipments, in compliance with FAA guidelines. The light sensor detects door openings, which can indicate inspections and unloading upon arrival, or unexpected opening that could be due to tampering with cargo.
DeltaTrak.22330-datasheet.pdf
Additional information
| Brand | DeltaTrak |
|---|---|
| Model | 22330 |
| Temperature Range | -30°C to 70°C (-22°F to 158°F) |
| Temperature Accuracy | ±0.5°C from -10°C to 45°C |
| Temperature Resolution | 0.1°C/°F |
| Temperature Sensor Type | Internal Digital Temperature Sensor |
| Light Sensor Range | 0 to 52000 lux |
| Light Detecton Accuracy | 0.01 lux |
| Usage Type | Single-use |
| Data Capacity | Max 28800 Readings |
| Logging Interval | 10 Min. |
| Data Upload Interval | 90 Min |
| Trip Duration | 60-Day |
| Cellular | Global Quad-band GSM(850, 900, 1800, |
| SIM | Internal Embedded (Global Data Roaming) |
| Battery Shelf Life | 1 year |
| Logger Dimensions | 4.05in x 2.41in x 1.18in |
| Weight | 4.16 oz (118 grams) |
| Waterproof Rating | IP64 |
| Certification | FCC, RoHS, NIST traceable temperature |
| PDF Report Backup | Micro USB to USB cable to download |
