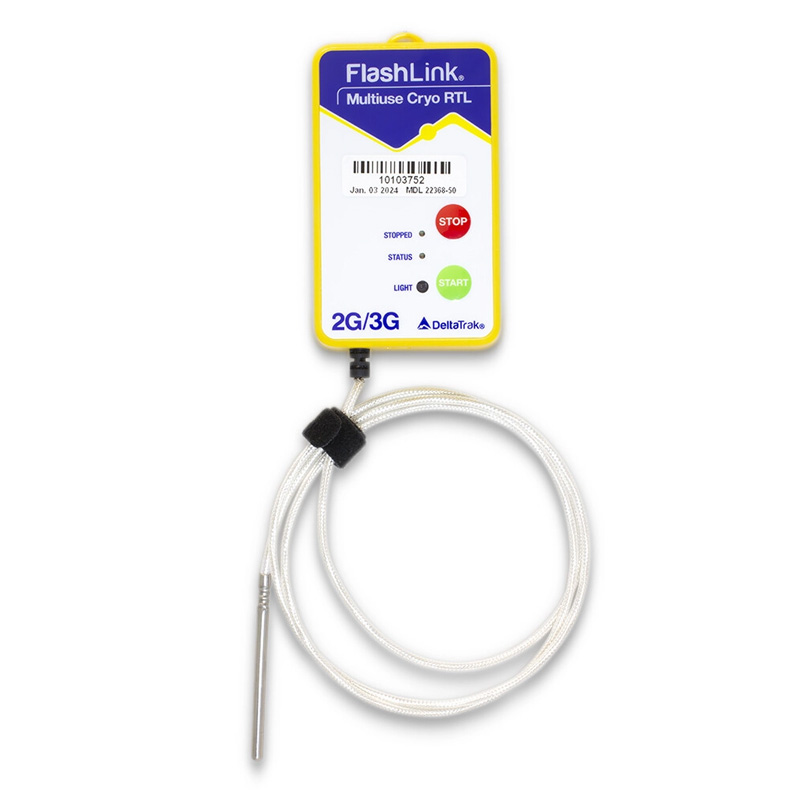

DeltaTrak.FlashLink® Prime 3G Cryo Multiuse Real Time Logger- 22368-50
- Monitor ultra low temperature during storage and transport using dry ice or liquid nitrogen
- External sensor tracks temperature of products
- No need to open shipping box or vehicle door to read data
- Location data plotted on Google Maps
- Light sensor alert when box or vehicle doors open for added security
- Trip information automatically uploads to 24/7 cloud service
- Option to download PDF report to PC with USB cable
- 12-month battery shelf life
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Applications: Real-time monitoring of cryo and dry ice shipments.
The FlashLink RTL Prime 3G Cryo Multiuse Logger monitors and reports temperature, location, and light during transport of perishable temperature sensitive products. Track deliveries using a cloud based service to see real-time route information and conditions in a truck or airplane. The RTL Prime 3G Cryo Logger offers real-time reporting and a PDF backup when there’s no cellular service available.
This reliable multiuse data logger sends trip data, at regular intervals, to the cloud, where it’s always available. A longer 12 month battery shelf life, PDF backup for trip reports and a new flight mode feature give this logger class leading ability to track shipments anywhere! An online dashboard makes data available to shippers at all times, even before a shipment reaches the receiving dock.
DeltaTrak.22368-50-datasheet.pdf
Additional information
| Brand | DeltaTrak. |
|---|---|
| Model | 22368-50 |
| External Probe Measurement Range | -328°F to 212°F (-200°C to 100°C) |
| Operating Range | 13°F to 158°F (-25°C to 70°C) |
| Temperature Accuracy | ±0.9°F from 14°F to 113°F |
| Temperature Resolution | 0.1 °F/°C |
| Light Sensor | Dual Stage Sensor |
| Data Capacity | 28,800 data points |
| Logging Interval | 5 minutes |
| Data Upload Interval Factory Programmable | 15 minutes |
| Log Duration Factory Programmable | 15 Day |
| GSM Network | 3G: Band 1/2/4/5/8 Global coverage |
| SIM | Internal Embedded (Global Data |
| Power Source | Lithium-ion battery, meets UN38.3 |
| Battery Shelf Life | 1 year |
| Logger Weight | 3.63 oz (103 grams) (without cable/ |
| Logger Dimensions | 2.32in x 4.02in x 0.75in |
| Probe Size | 2.36in L x 0.15in D (6cm L x 0.4cm D) |
| Cable | 3.3 feet / 1 meter FEP |
| Certification | RTCA/DO-160, FCC, CE Mark, RoHS, |
| System Requirements | Logger requires cellular network connection |
| PDF Back Up | Micro USB to USB cable for download |
| Waterproof Rating | IP65 |
