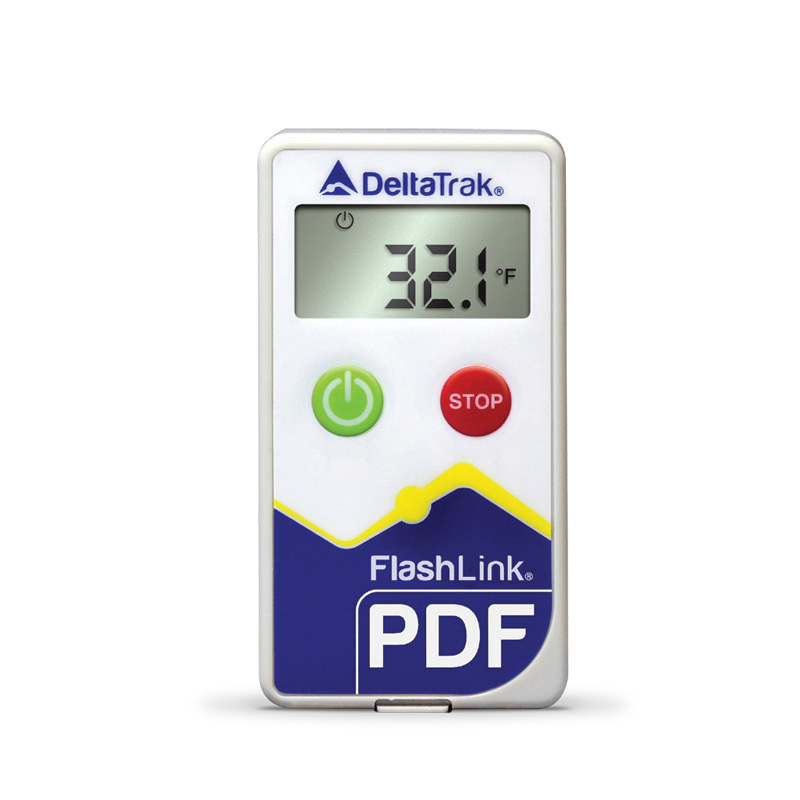

DeltaTrak.FlashLink® PDF Multi-Use Data Logger-40203
- Unit is designed to be used multiple times
- Logger is provided pre-programed
- No software needed to download data

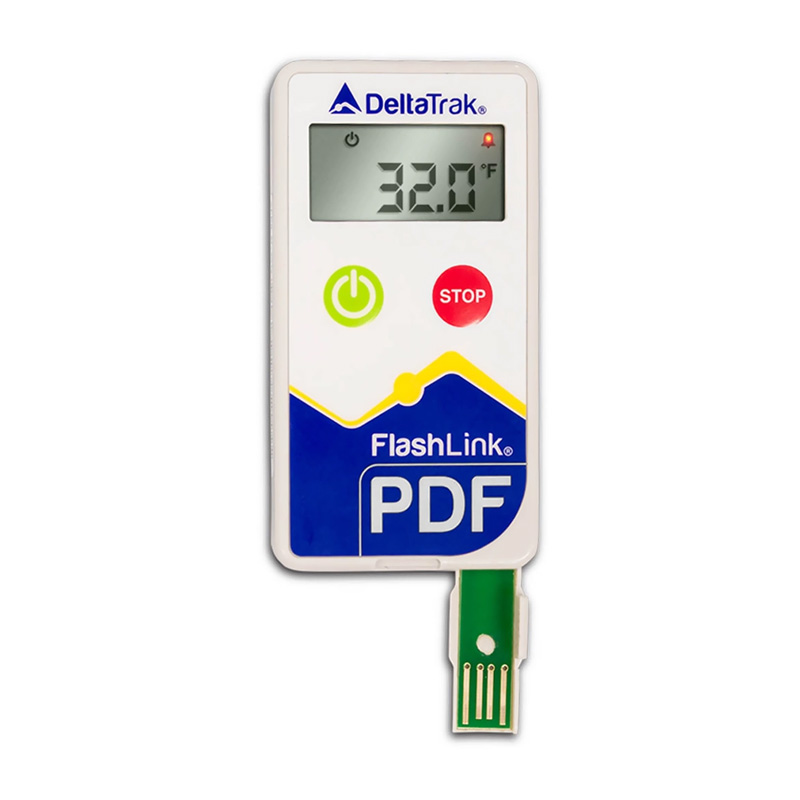

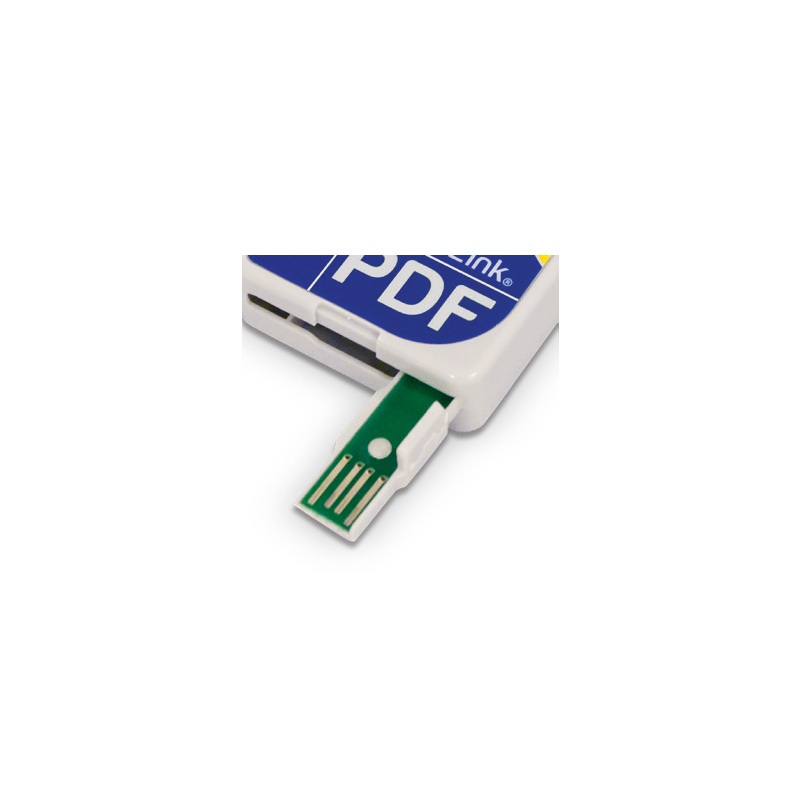

- Built-in USB connector, no special reading devices required
- Stops recording after downloading data
- Automatically creates secure PDF report and CSV file
- Push-button resets and restarts unit for next use
- Temperature statistics available on LCD
- Custom configuring available for logging parameters, alarms, and delayed start
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Applications: Produce, Prepared Foods, Pharmaceuticals, Chemicals, Storage Units, Refrigerators
This plug-and-play temperature logger comes pre-programmed and can be reused again and again. After each use, the data is downloaded to a USB enabled device as an encrypted PDF file with a unique identification number for record keeping and traceability. Once data is retrieved, simply reset the unit by pushing and holding both buttons till the data is cleared and a new trip ID is created. This makes it a cost-effective cold chain management and logistics solution for monitoring temperature-sensitive commodities during shipping and/or storage. The FlashLink® PDF Multi-Use Data Logger is ideal for tracking products transported between facilities or as an economical replacement for reusable chart recorders. The logger has the ability to monitor environmental conditions in temperature controlled facilities, such as warehouses, distribution centers, processing, packaging or staging areas.
Factory configured, users do not program this unit. In addition, no software is needed to download data as the logger features onboard software which simply needs a USB enabled device to access the information. Data is reported as a secure, encrypted PDF report which the user must save on their local hard drive. Custom configurations are available from the factory to pre-set logging parameters, such as high/low alarm limits, logging intervals and delayed start.
DeltaTrak.40202-datasheet.pdf
Additional information
| Brand | DeltaTrak. |
|---|---|
| Model | 40203 |
| Measurement Range | -40°F to 122°F (-40°C to 50°C) |
| Temperature Resolution | 0.2°F /0.1°C |
| Accuracy | ±1.0°F from -4°F to 113°F; (±0.5°C from -20°C to 45°C) |
| Data Capacity | 16,112 points |
| Sample Interval | 5 minutes |
| Data Download Time | 30 seconds typical |
| Factory Programmable Alarm Limits | High/low limits over entire temp range |
| Battery | Coin Cell Lithium battery |
| Dimensions | 1.93” x 3.62” x 0.67” |
| Casing | ABS plastic |
| Weight | 1.6 oz. (45.36 grams) |
| Shock Resistance | Withstands 3-foot (1 meter) drop to hard surface |
| Certification | CE Mark, Calibration traceable |
| Display | LCD, Red LED Alarm |
| Storage Conditions | -4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o |
| PDF Standards | Complies with ISO19005-1, PDF/A, 21 CFR Part 11 |
| System Requirements | Windows PC with current operating system |
| Download Requirements | Direct USB connection |
