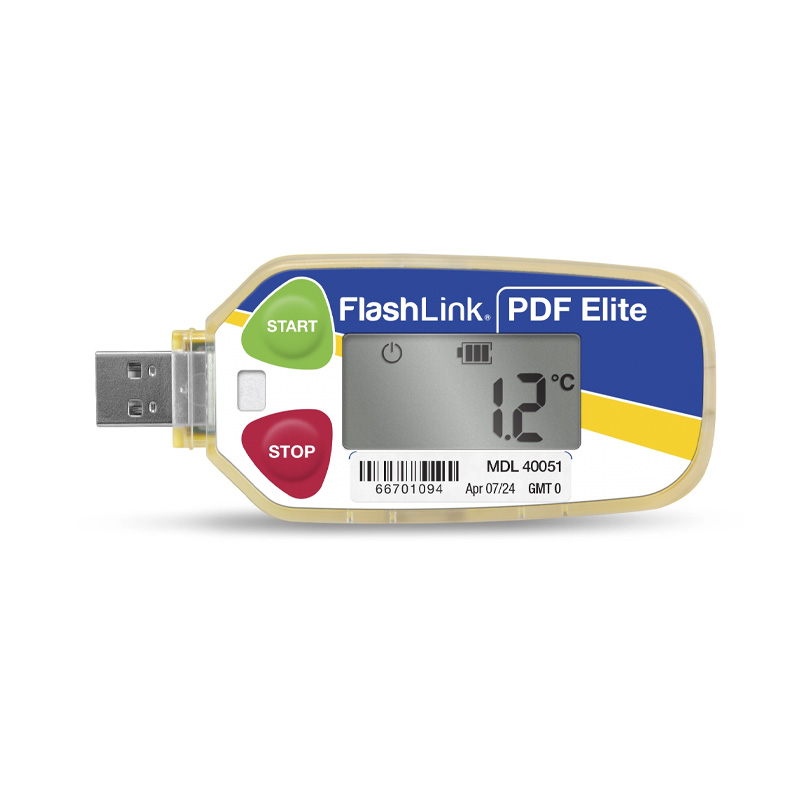

DeltaTrak.FlashLink® PDF Elite °F/°C In-Transit Logger-40051
- Single-use Temperature and Humidity Logger
- Large, easy to read LCD display
- Trip history statistics available on LCD
- Patented Shadow Log® feature guarantees data even if the shipper fails to start the logger
- User-programmable options before activation include: Low/High Alarms, Logging Interval, Start Delay, and Temperature Scale.
- Built-in USB connector, no special reading devices needed
- Automatically creates secure PDF report and CSV file
- No software required to download data
- Recorded data automatically scales to graph
- Embedded Temperature Calibration Certificate available upon request
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Applications: Produce, Prepared Foods, Pharmaceuticals, Chemicals, Storage Units, Refrigerators
The FlashLink® PDF Elite Temperature and Humidity In-Transit Logger is an ideal cold chain management solution for monitoring temperature and humidity sensitive products as they move through the supply chain. This plug-and-play device features a built-in USB connector and onboard software which automatically creates PDF and CSV trip reports in both ºF and ºC when plugged in to a PC or USB port of a printer.
The PDF Elite is particularly important for shipments going to remote locations, so receivers will have quick and easy access to trip reports immediately upon arrival. No cradles, reading devices or adapters needed for downloading data. The secure, encrypted PDF report can be emailed for sharing with other stakeholders and saved on a local hard drive for quality assurance, traceability, and Good Distribution Practices (GDP).
This device includes innovative and user-friendly features. A large, easy-to-read LCD shows trip statistics of recorded data for quick review on the receiving dock, to make accept/reject decisions on the spot. Users can easily toggle between Fahrenheit and Celsius scales. It is also equipped with DeltaTrak’s patented Shadow Log® technology, which guarantees the receiver has trip data – even if a shipper forgot to start the unit.
PDF Elite Loggers are factory preconfigured and also available with customized logger settings and an embedded calibration certificate can be included upon request. Additionally, free FlashLink Configurator software is offered for shippers to do their own customization for parameters such as logging intervals, delayed start, and high/low alarm settings.
DeltaTrak.40051-datasheet.pdf
Additional information
| Brand | DeltaTrak. |
|---|---|
| Model | 40051 |
| Measurement Range | -40°F to 140°F (-40°C to 60°C) |
| Temperature Resolution | 0.1°F/°C |
| Temperature Accuracy | ±0.9°F from -40°F to 140°F |
| Temperature Scale | °F/°C |
| Humidity Range | 0% to 80% RH |
| Humidity Accuracy | ±3.0% RH |
| Relative Humidity Resolution | 0.1% RH |
| Data Capacity | 16,000 data points |
| Data Download Time | 5 seconds typical |
| Logging Interval | 4 Minutes |
| Trip Duration | 85 days |
| Start Delay | 30 Minutes |
| Low/High Alarms Settings | None – user programmable option |
| GMT | GMT +0 |
| Battery | Coin Cell Lithium battery |
| Battery Shelf Life | 18 months |
| Dimensions | 3.9in x 1.7in x 0.5in (99.1mm x 43.2mm x 12.7mm) |
| Casing | ABS plastic |
| Weigh | 1.28 oz (36.29 grams) |
| Shock Resistance | Withstands 3-foot (1 meter) drop to hard surface |
| Display | LCD, trip statistics, red LED alarm and high/low limit indicators |
| Waterproof Rating | IP64 with silicone cap |
| Storage Conditions | -4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o condensation |
| PDF Standards | Complies with ISO19005-1, PDF/A, 21 CFR Part 11 |
| System Requirements | Windows PC with current operating system, Adobe Reader |
| Download Requirements | Direct USB connection |
| Certification | CE Mark, Calibration traceable to NIST, ROHS Compliant, |
