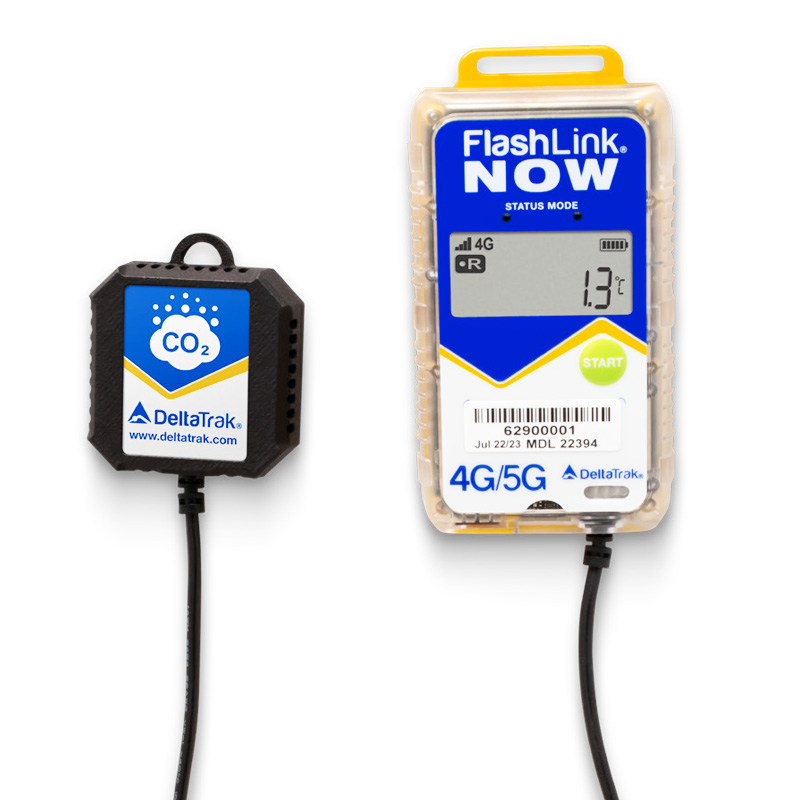

DeltaTrak.FlashLink® NOW CO2 4G/5G Real-Time In-Transit Logger-22394
- Next generation of global cellular communications real-time loggers with LCD using 4G/5G LTE/2G.
- Precision location accuracy using latest global cellular technology with Wi-Fi triangulation positioning.
- Monitors location, dual temperature, humidity, CO2 air level, light, and shock.
- Proactively manage shipment location and conditions to reduce the risk of product loss due temperature excursions.
- FlashTrak Cloud Service platform offers different levels of access to optimize user experience and API integration into customer systems.
- FlashTrak receiver program allows shippers to customize access to alerts and shipment conditions.
- USB option to download PDF trip data should GSM network not be available.
- Light sensors alert you to unplanned security access which reduces and averts potential product theft during transportation.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Applications: Real-time monitoring for storage of fresh produce and other CO2 sensitive products
The FlashLink® NOW 4G/5G Real-Time In-Transit Logger utilizes the latest technology to protect domestic and export shipments of temperature sensitive products. DeltaTrak’s real-time devices provide the data shippers and receivers need to take immediate action if a temperature excursion occurs. With a single device, users can capture multiple types of sensor data, including location, temperature, humidity, light and shock.
FlashLink NOW incorporates several enhanced features which offer new options for accessing data and contribute to greater ease of use. The addition of an LCD screen enables users to view trip data stored in the unit’s memory. Wider temperature measurement range of -30°C to 70°C (-22°F to 158°F) allows monitoring of commodities with diverse requirements.
DeltaTrak.22394-datasheet.pdf
Additional information
| Brand | DeltaTrak. |
|---|---|
| Model | 22394 |
| Temperature Range | -30°C to 70°C (-22°F to 158°F) |
| Temperature Accuracy | ±0.5°C from -20°C to + 40°C |
| Resolution | 0.1°C/°F / 0.1% CO2 / 1% RH |
| Humidity Range | 5% to 95% RH |
| CO2 Range | 0-100 VOL% |
| CO2 Accuracy | 5-15% @ ±0.1% for other ±2% |
| Light Sensor Range | 0 to 52000 lux |
| Light Detecton Accuracy | 0.01 lux |
| Usage Type | Single-use |
| Data Capacity | Max 28800 Readings |
| Logging Interval | 10 Min. |
| Data Upload Interval | 90 Min. |
| Trip Duration | 70 Day |
| Cellular | Global LTE Cat-1 4G/5G network, with 2G |
| SIM | Internal Embedded (Global Data Roaming) |
| Power Source | Lithium-ion battery, meets UN38.3 |
| Battery Shelf Life | 12 months |
| Logger Dimensions | 4.05in x 2.41in x 0.9in |
| Weight | 7 oz (200 grams) |
| Waterproof Rating | IP64 |
| Certification | FCC, RoHS, NIST traceable temperature |
| PDF Report Backup | Micro USB to USB cable to download |
