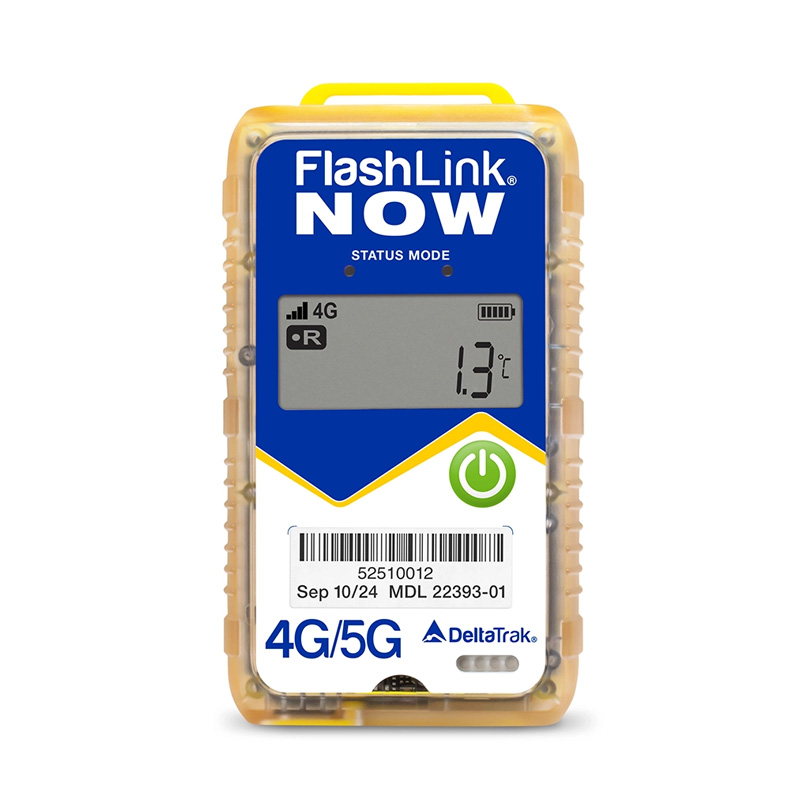

DeltaTrak-FlashLink® Now 4G/5G Real-Time In-Transit Logger-22393-01
- Next generation of global cellular communications real-time loggers with LCD using 4G/5G LTE with 2G backup
- Precision location accuracy using latest global cellular technology with Wi-Fi triangulation positioning
- Monitors location, temperature, humidity, light, and shock
- Proactively manage shipment location and conditions to reduce the risk of product loss due temperature excursions
- FlashTrak Cloud Service platform offers different levels of access to optimize user experience and API integration into customer systems. FlashTrak receiver program allows shippers to customize access to alerts and shipment conditions
- USB option to download PDF trip data should GSM network not be available
- Light sensors alert you to unplanned security access which reduces and averts potential product theft during transportation
- Maritime tracking service options ensure access to different modes of integrated supply chain data
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Applications: Real-time monitoring of ocean container shipments, up to 90 days.
The FlashLink® NOW 4G/5G Real-Time In-Transit Logger utilizes the latest technology to protect domestic and export shipments of temperature sensitive products. DeltaTrak’s real-time devices provide the data shippers and receivers need to take immediate action if a temperature excursion occurs. With a single device, users can capture multiple types of sensor data, including location, temperature, humidity, light, and shock.
FlashLink NOW incorporates several enhanced features which offer new options for accessing data and contribute to greater ease of use. The addition of an LCD screen enables users to view trip data stored in the unit’s memory. An extended trip duration of up to 90 days ensures that exported shipments will remain protected during overseas transport. Wider temperature measurement range of -30°C to 70°C (-22°F to 158°F) allows monitoring of commodities with diverse requirements.
DeltaTrak.22393-datasheet.pdf
Additional information
| Brand | DeltaTrak. |
|---|---|
| Model | 22393-01 |
| Rango de temperatura | -30°C a 70°C |
| Precisión de temperatura | ±0,5°C de -10°C a 45°C |
| Resolución de temperatura | 0,1°C |
| Tipo de sensor de temperatura | Sensor de temperatura digital interno |
| Rango de humedad | 5% a 95% RH |
| Precisión de humedad | ±3% de 20% a 80%RH |
| Rango de sensor de luz | 0 a 52000 lux |
| Precisión de detección de luz | 0,01 lux |
| Sensor de impacto | 0-8g altura: 5-10cm |
| Tipo de uso | De un solo uso |
| Capacidad de datos | Max 28800 lecturas |
| Intervalo de registro | 10 Min |
| Intervalo de carga de datos | 120 Min |
| Duración del viaje | 90 días |
| Celular | Global LTE Cat-1 para red 4G/5G, |
| SIM | Integrado interno (itinerancia global de datos |
| Fuente de alimentación | Batería de iones de litio, cumple con UN38.3 |
| Vida útil de la batería | 1 año |
| Dimensiones del registrador | 103mm x 61,3mm x 30mm |
| Peso | 140 gramos |
| Clasificación impermeable | IP64 |
| Certificación | Precisión de temperatura rastreable FCC, |
| Reporte en PDF | Cable micro USB a USB para descargar el |
