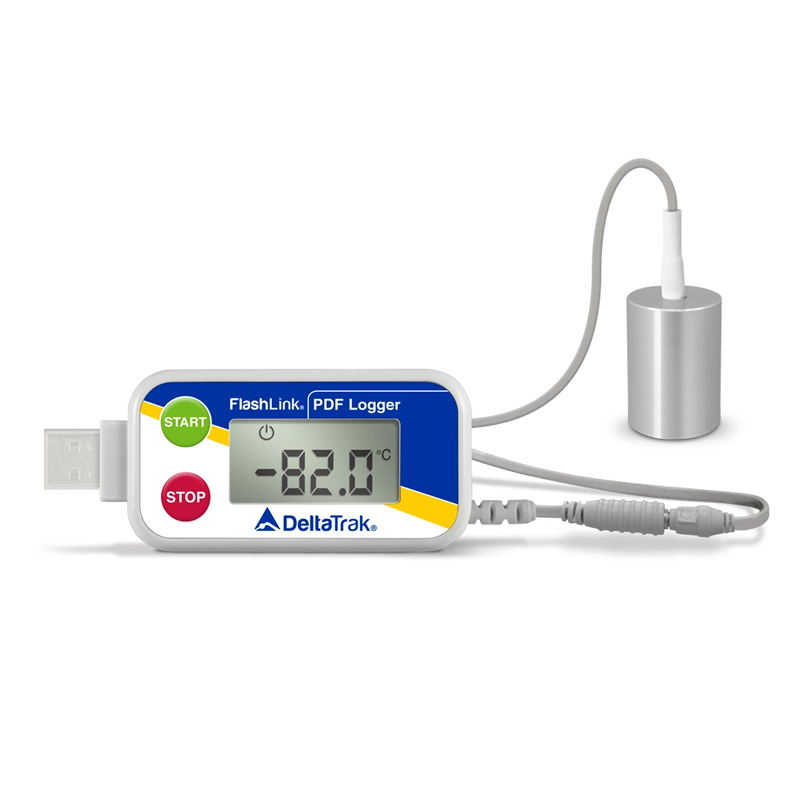

DeltaTrak.FlashLink® Certified Vaccine ULT PDF Data Logger with External Aluminum Sensor-40571

Applications: Hospitals, Labs, Pharmacies, Supermarkets, Dairy Products, Cold-Holding Display Cases, Refrigerators and Freezers

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal

Description

  • Monitor vaccines in ultra-low temperatures down to -82°C
  • Ideal for ULT storage units with vaccines and biologicals
  • Compatible with CDC guidelines
  • Can also be used in standard freezers and refrigerated storage units
  • 21 CFR Part 11 compliant software
  • Single channel, external sensor
  • Aluminum buffered sensor emulates products and prevents false alarms
  • Automatically generates PDF, CSV and Daily Log reports
  • Audible and/or visual alarms
  • Low battery indicator on LCD
  • Quick disconnect cable to download logger
  • Scroll through recorded data on LCD

DeltaTrak.40571-datasheet.pdf



Additional information

Brand

DeltaTrak.

Model

40571

Sensor Measurement Range

-115.6°F to 113°F (-82°C to 45°C)

Logger Operating Range

-4.0°F to 122°F (-20°C to 50°C)

Temperature Resolution

0.1°F/°C

Accuracy within Normal Operating Range

±1.0°F from -115.6°F to 113°F
(±0.5°C from -82°C to 45°C)

Data Capacity

32,496 data points

Data Download Time

5 seconds typical for 3823 points

Multiple Alarm Levels

High & low levels and extreme high and low levels displayed
on LCD, with audible buzzer

Battery

Two AAA lithium batteries, LCD % remaining power indicator

Logger Dimensions (Body)

1.575in x 3.66in x 0.94in (40mm x 93mm x 24mm)

Casing

ABS plastic

External Sensor

Aluminum Sensor 0.96in (24.4mm) Dia x 1.26in (32mm)H
9.8 ft (3m) PTFE cable with stereo jack connector

Weight

2.24 oz (63.5 grams) (Logger only)

Calibration

2-yr ISO 17025 Calibration Certificate (A2LA), 1-yr
NIST Calibration Certificate, and Manufacturer’s
Certificate of Compliance available

Certification

CE mark, NIST traceable, RoHS, WEEE

Display

LCD, Red LED Alarm

Waterproof Rating

IP64 (with silicone cap)

Storage conditions

-4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o
condensation

Shelf Life

2 years (battery life)

System Requirements

Windows PC with current operating system, Adobe Reader

Programming

User programmable with FlashLink Program Manager
software (Included)

Download Requirements

Direct USB connection to PC (No special software
required to download logger.)
