DeltaTrak.FlashLink® Certified Vaccine PDF Data Logger with Glycol Bottle, 2YR ISO CAL CERT-40528-01
- Monitor vaccines in ultra-low temperatures
- Ideal for storage and transport with dry ice
- Compatible with CDC and New 2021 WHO guidelines
- 21 CFR Part 11 compliant software
- Single channel, external sensor
- Automatically generates PDF, CSV and Daily Log reports
- Audible and/or visual alarms
- Low battery indicator on LCD
- Quick disconnect cable to download logger
- Scroll through daily stats on LCD screen
- History review of past data up to 128 days
- Records time when logger is disconnected from sensor
- Pause mode activated by button press or disconnected for downloading
- Fractional Time Zone setting
- Temperature Scale toggle C° or F°
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

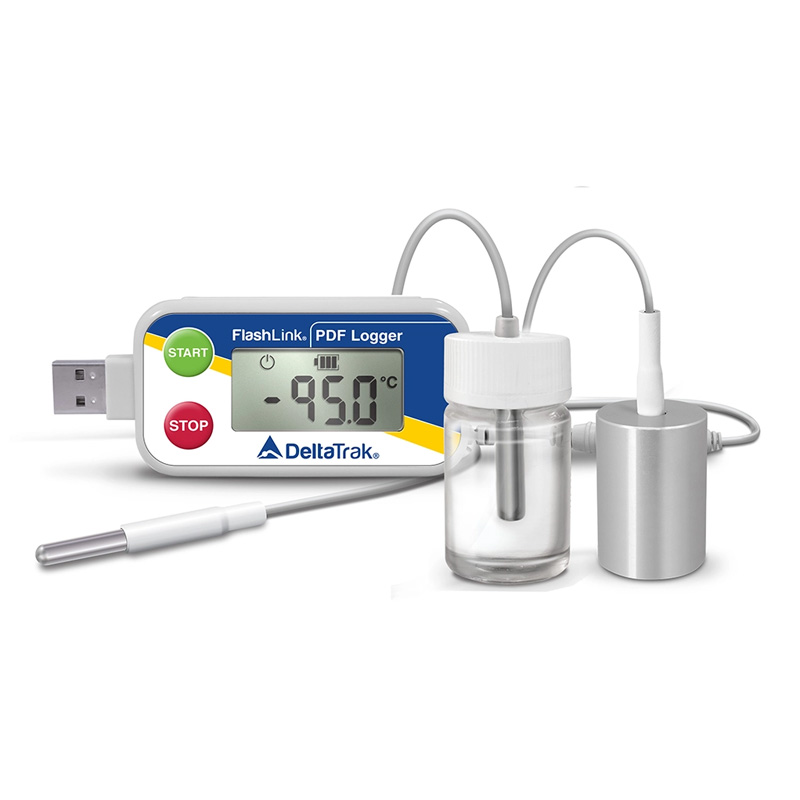

The FlashLink® Certified Vaccine PDF Data Logger, Model 40528, is our newest device for monitoring stored vaccines and other temperature-sensitive liquid medications. It is also ideal for monitoring vaccines being transported with dry ice.
This reusable logger comes with three detachable sensors to accommodate a wide range of ultra-low temperature profiles – a glycol bottle, aluminum buffer and blunt probe. Glycol bottles emulate temperature changes occurring with most liquids during storage, improving the accuracy of readings. They are ideal for monitoring vaccines stored at temperatures between -40°C to 40°C.
For vaccines or pharmaceuticals requiring cryogenic storage, the aluminum buffer and blunt probe can withstand temperatures between -95°C and 95°C. Glycol and aluminum buffers provide dampening to prevent alarms due to temperature fluctuations associated with door openings and compressor cycling in refrigerators and freezers.
Several unique features make the certified vaccine PDF logger an excellent choice, including a large LCD display with low battery indicator, audible and visual alarms, three alarm pre-sets, and Celsius/Fahrenheit temperature scales. This PDF logger comes with a quick disconnect cable for easy downloading, and it automatically generates PDF, CSV, and daily log reports. The FlashLink Certified Vaccine PDF Data Logger meets FDA, CDC, and World Health Organization (WHO) guidelines for temperature monitoring devices.
DeltaTrak.40528-datasheet.pdf
Additional information
Brand | DeltaTrak. |
---|---|
Model | 40528-01 |
Probe Measurement Range | -139°F to 203°F (-95°C to 95°C) |
Operating Range | -58°F to 77°F (-50°C to 25°C) |
Temperature Resolution | 0.1°F/°C |
Accuracy within Normal Operating Range | ±1.0°F From -40°F to 104°F (± 0.5°C from -40°C to 40°C) |
Data Capacity | 32,000 data point |
Data Download Time | 5 seconds |
Multiple Alarm Levels | High & low levels and extreme high and low levels |
Battery | Single 3.6V lithium battery, LCD% remaining |
Dimensions/Body | 1.575in x 3.67in x 0.94in |
Casing | ABS Plastic |
External Sensor | 0.14in Dia x 1.22in L (3.5mm Dia x 31mm L) |
Glycol Buffer | Propylene glycol (GRAS** classified) |
Weight | 1.9 oz (54 grams) |
Calibration | 2-yr ISO 17025 Calibration Certificate (A2LA), |
Certification | CE mark, NIST traceable, RoHS, WEEE |
Display | LCD, Red LED Alarm |
Waterproof Rating | IP64 when USB connector cap is installed |
Storage conditions | -4°F to 122°(-20°C to 50°C) 0% to 95% RH |
Shelf Life | 2 years (battery life) |
System Requirements | Windows PC with current operating system, |
Programming | FlashLink Program Manager Software, |
Download Requirements | Direct USB connection to PC |
/ | DeltaTrak manufactures products under an ISO 9001:2015 |
