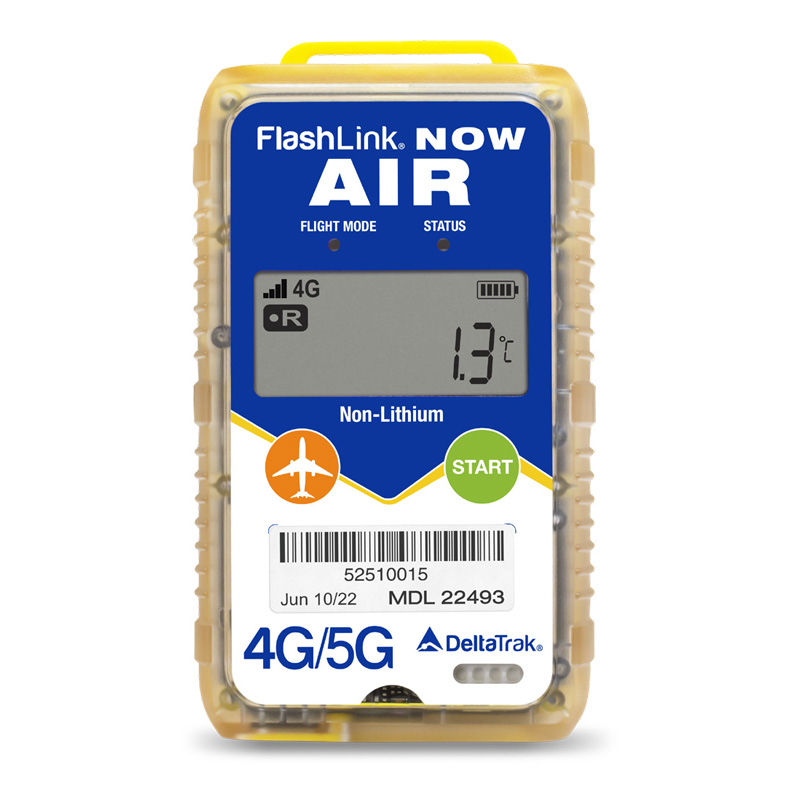

DeltaTrak.FlashLink® AIR 4G/5G Real-Time In-Transit Logger- 22493
- Non-Lithium Battery
- Next generation of global cellular communications real-time loggers with LCD using 4G/5G LTE with 2G backup
- Monitors location, temperature, humidity, light, shock and air pressure
- Temperature shown in °C
- Proactively manage shipment location and conditions to reduce the risk of product loss due temperature excursions
- FlashTrak Cloud Service platform offers different levels of access to optimize user experience and API integration into customer systems. FlashTrak receiver program allows shippers to customize access to alerts and shipment conditions
- USB option to download PDF trip data should GSM network not be available
- Light sensors alert you to unplanned security access which reduces and averts potential product theft during transportation
- Maritime tracking service options ensure access to different modes of integrated supply chain data
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Applications: Real-time monitoring of export shipments, trip duration up to 15 days
The FlashLink AIR 4G/5G Real-Time In-Transit Logger utilizes the latest technology to protect domestic and export shipments of temperature sensitive products. DeltaTrak’s real-time devices provide the data shippers and receivers need to take immediate action if a temperature excursion occurs. With a single device, users can capture multiple types of sensor data, including location, temperature, humidity, shock, light, and air pressure
FlashLink AIR incorporates several enhanced features which offer new options for accessing data and contribute to greater ease of use. The addition of an LCD screen enables users to view trip data stored in the unit’s memory. A wider temperature measurement range of -30°C to 70°C (-22°F to 158°F) allows monitoring of commodities with diverse requirements.
DeltaTrak.22493-datasheet.pdf
Additional information
| Brand | DeltaTrak. |
|---|---|
| Model | 22493 |
| Temperature Range | -30°C to 70°C (-22°F to 158°F) |
| Temperature Accuracy | ±0.5°C from -10°C to 45°C |
| Temperature Resolution | 0.1°C/°F |
| Temperature Sensor Type | Internal Digital Temperature Sensor |
| Humidity Range | 5% to 95% RH |
| Humidity Accuracy | ±3% from 20% to 80%RH |
| Light Sensor Range | 0 to 52000 lux |
| Light Detecton Accuracy | 0.01 lux |
| Shock Sensor | 0-8g height: 5-10cm |
| Usage Type | Single-use |
| Data Capacity | Max 28800 readings |
| Logging Interval | 5 Min. |
| Data Upload Interval | 15 Min. |
| Trip Duration | 15-Day |
| Cellula | Global LTE Cat-1 4G/5G network, with 2G Fallback |
| SIM | Internal Embedded (Global Data Roaming) |
| Power Source | Non-Lithium, NiMH, meets UN38.3 |
| Battery Shelf Life | 6 months |
| Logger Dimensions | 4.05in x 2.41in x 1.18in |
| Weight | 4.9 oz (140 g) |
| Waterproof Rating | IP64 |
| Certification | FCC, CE, UN38.3, RTCA/DO-160G, RoHS, NIST |
| PDF Report Backup | Micro USB to USB cable to download full trip |
