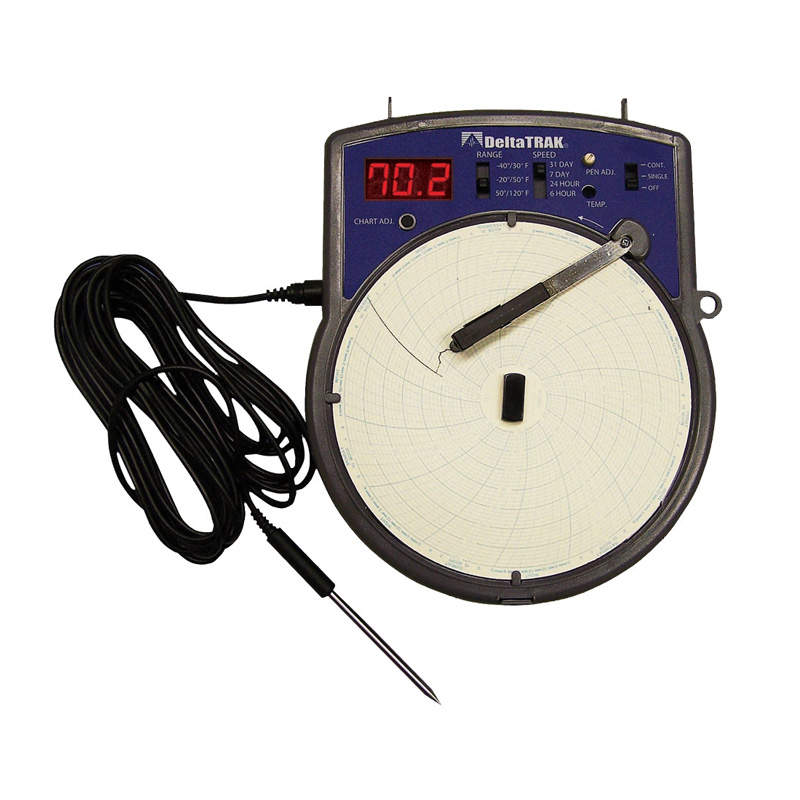

DeltaTrak.Electronic Circular Temperature Chart Recorder-14011
- Select single or continuous chart rotation
- Stainless steel probe allows you to measure the temperature of air, gas, liquids, powders, and semi-solids
- The temperature chart recorder’s back-up batteries allow continuous function (up to 48 hrs) during power failures
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Applications: Measure Temperature of Air, Gas, Liquids, Powders, Semi-solids
The Circular Temperature Chart Recorder’s external stainless steel probe allows you to measure the temperature of air, gas, liquids and semi-solids. The temperature chart recorder has a quartz clock movement, motorized chart advance and temperature accuracy of ±2°F (±1°C). The chart recorder comes in °F or °C models and runs on 120V or 220V AC, 50/60 Hz. A rear compartment houses 8 AA alkaline batteries, providing up to 48 hours of continuous recording in the event of a temporary power loss.
Current temperature is easily read on the chart recorder’s large LED display, while a permanent record is traced on paper charts. Both charts and pens are easily replaced.
DeltaTrak’s Electronic Circular Temperature Chart Recorder, Models 14010, 14011 and 14012, is a reliable time and temperature chart recorder. The temperature chart recorder has four chart speeds of 6 hours, 24 hours, 7 days and 31 days. There are three temperature ranges: -40°F~30°F (-40°C~-1°C), -20°F~50°F (-30°C~10°C) and 50°F~120°F (10°C~49°C) for frozen, chill and ambient environments.
DeltaTrak.14010-datasheet.pdf
Additional information
| Brand | 14011 |
|---|---|
| Temperature Range Selectable | -40°F to 30°F / -20°F to |
| Chart Speed Selectable | 6 hours, 24 hours, 7 |
| Chart Speed Accuracy | ±1% |
| Chart Diameter | 6 inches (152.4mm) |
| Temperature Display | 3 digit LED 0.5 inches |
| Temperature Accuracy | ±2°F (±1°C) |
| Temperature Sensor | Stainless steel probe 2 |
| Recording Pen | Ink type |
| Power Supply | 120 VAC, 50/60 Hz., |
| Battery Backup | Holder for 8 alkaline |
| Battery Life | 48 hours |
| Operating Temperature | 32°F to 120°F (0°C to |
| Relative Humidity | 96% maximum |
| Dimensions | 9 in x 6.875 in x 2.33 |
| Weight | 1 lbs 12 oz. (0.7 kg. |
